SEAT

ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

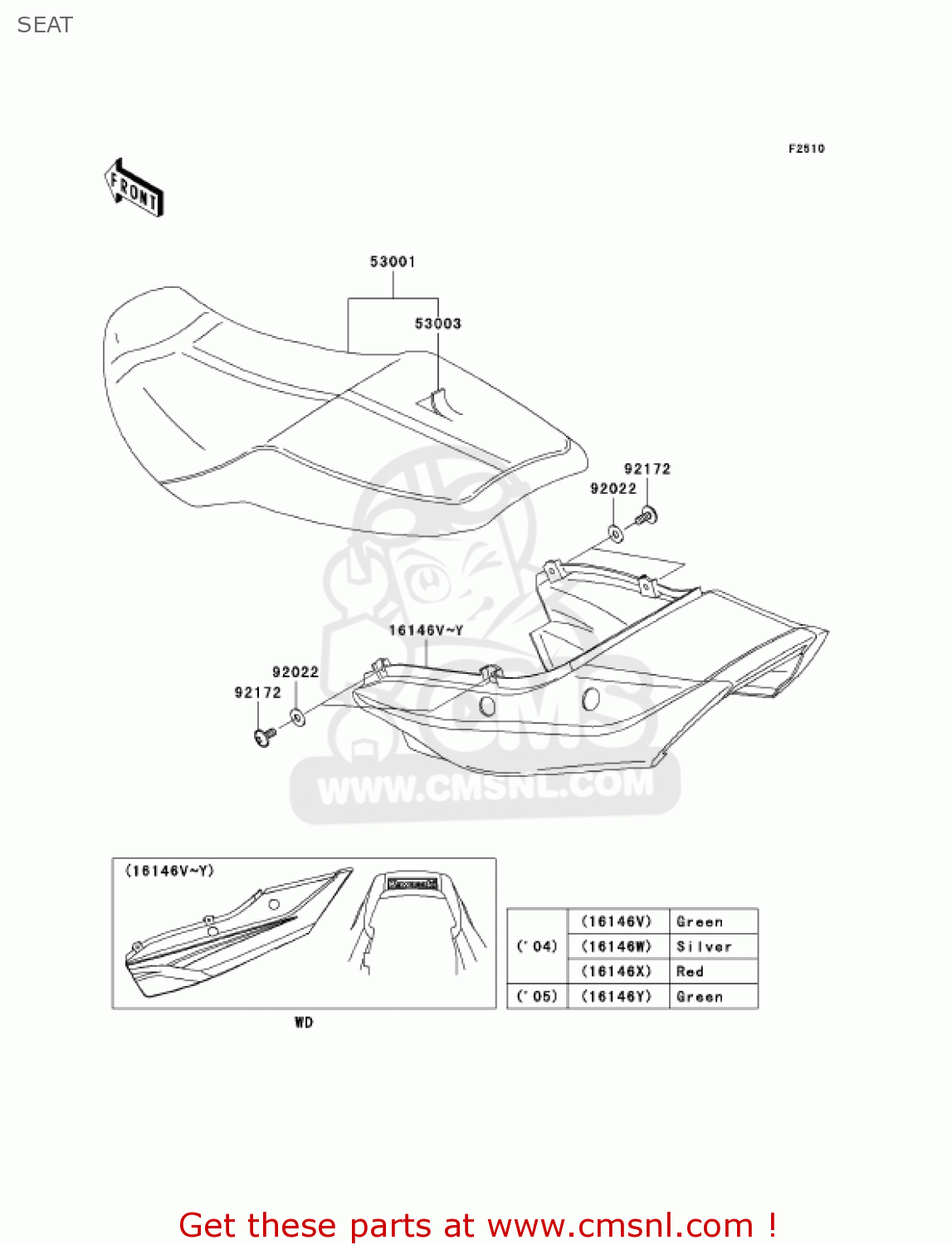

Seat diagram ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

SEAT ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

SEAT ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

16146V

1614651068N
ref: 16146V
[CN]

COVER-ASSY,SEAT,C.L.G

€ 378.00

16146W

161465107474
ref: 16146W
[CA,US

COVER-ASSY,SEAT,G.SIL

€ 244.50

16146X

161465108234
ref: 16146X

COVER-ASSY,SEAT,P.RED

€ 378.00

53001

530011957MA
ref: 53001

SEAT-ASSY,DUAL,BLACK

€ 437.00

53003

530031490MA
ref: 53003

LEATHER,SEAT,BLACK

€ 185.00

92022

920221143
ref: 92022

WASHER,6.5X16X1

€ 2.50

92172

921720004
ref: 92172

SCREW,6X14

€ 2.00
