STAND(S)

ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

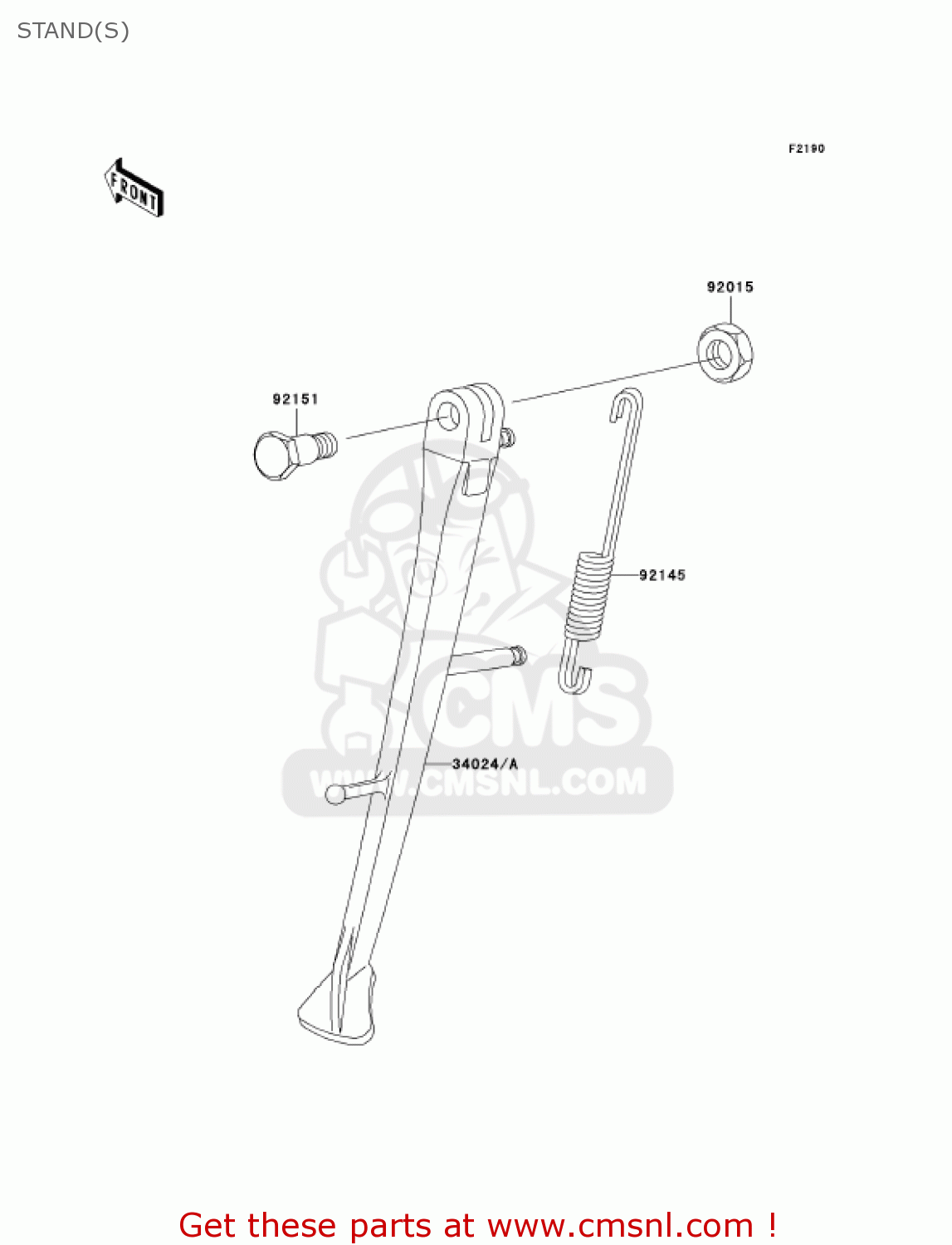

Stand(s) diagram ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

STAND(S) ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

STAND(S) ZR1200A4 ZRX1200R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

34024A

340241382
ref: 34024A

STAND-SIDE

€ 92.00

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92145

921450083
ref: 92145

SPRING,SIDE STAND

€ 15.50

92151

921511291
ref: 92151

BOLT,SIDE STAND

€ 5.00
