Genuine ZR Kawasaki Parts delivered quickly!


STARTER MOTOR

ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

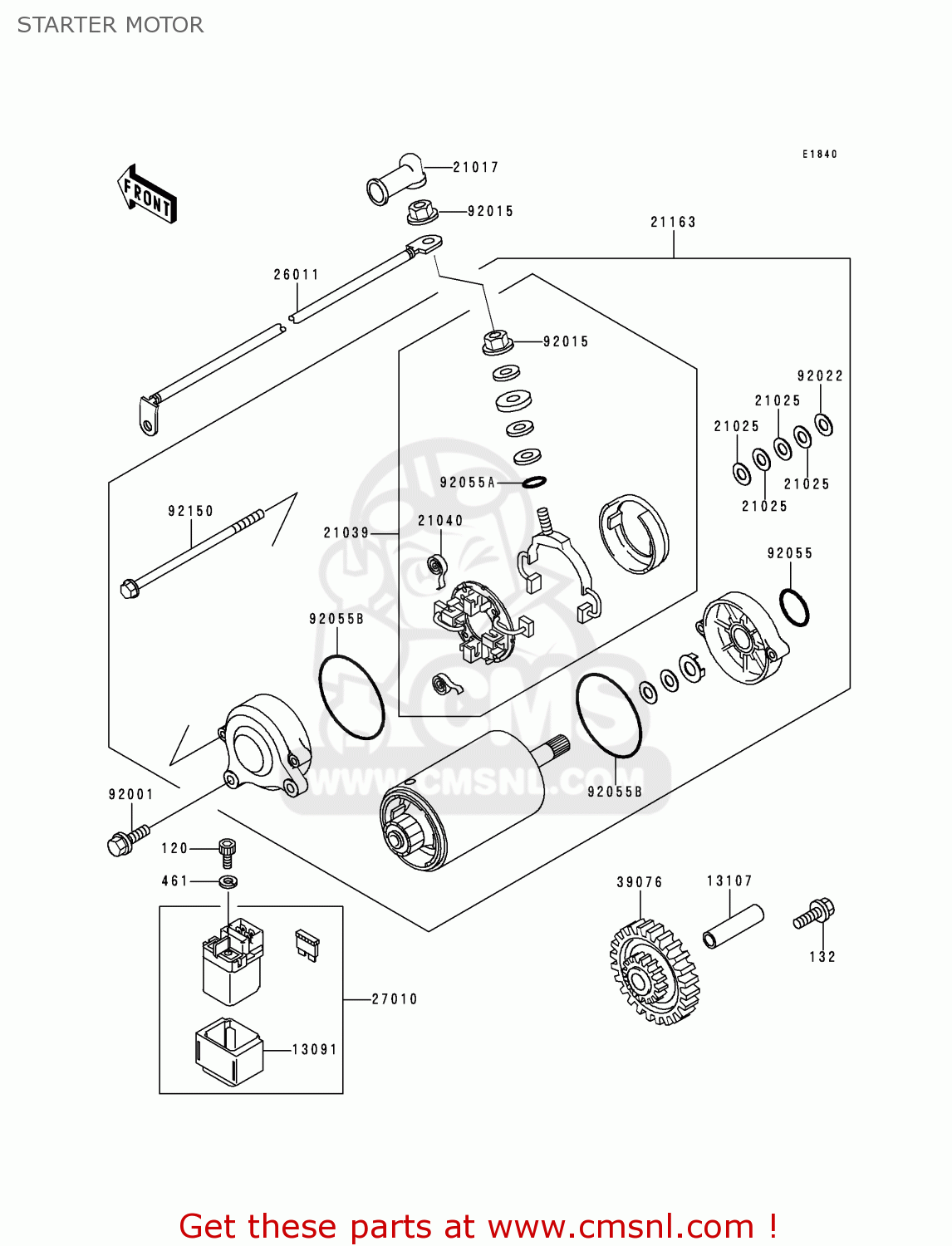

Starter motor diagram ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

STARTER MOTOR ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST
STARTER MOTOR ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST
STARTER MOTOR ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST
prices are in EUR
ref
part #
description
quantity
120
120S0510
ref: 120
BOLT-SOCKET
120S0510
€ 0.50
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
461K0500
€ 0.50
13091
130911884
ref: 13091
HOLDER,MAGNETIC SWITC
130911884
€ 8.00
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
131071106
€ 11.50
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21163
211631161
ref: 21163
STARTER-ELECTRIC
€ 574.50
26011
260111654
ref: 26011
WIRE-LEAD
€ 56.50
27010
270101327
ref: 27010
SWITCH,MAGNETIC
270101327
€ 116.00
39076
390761061
ref: 39076
LIMITER,STARTER IDLE
390761061
€ 105.00
92001
920011947
ref: 92001
BOLT,6X20
920011947
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92150
921501143
ref: 92150
BOLT,MOTOR
€ 6.50
