CARBURETOR

ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

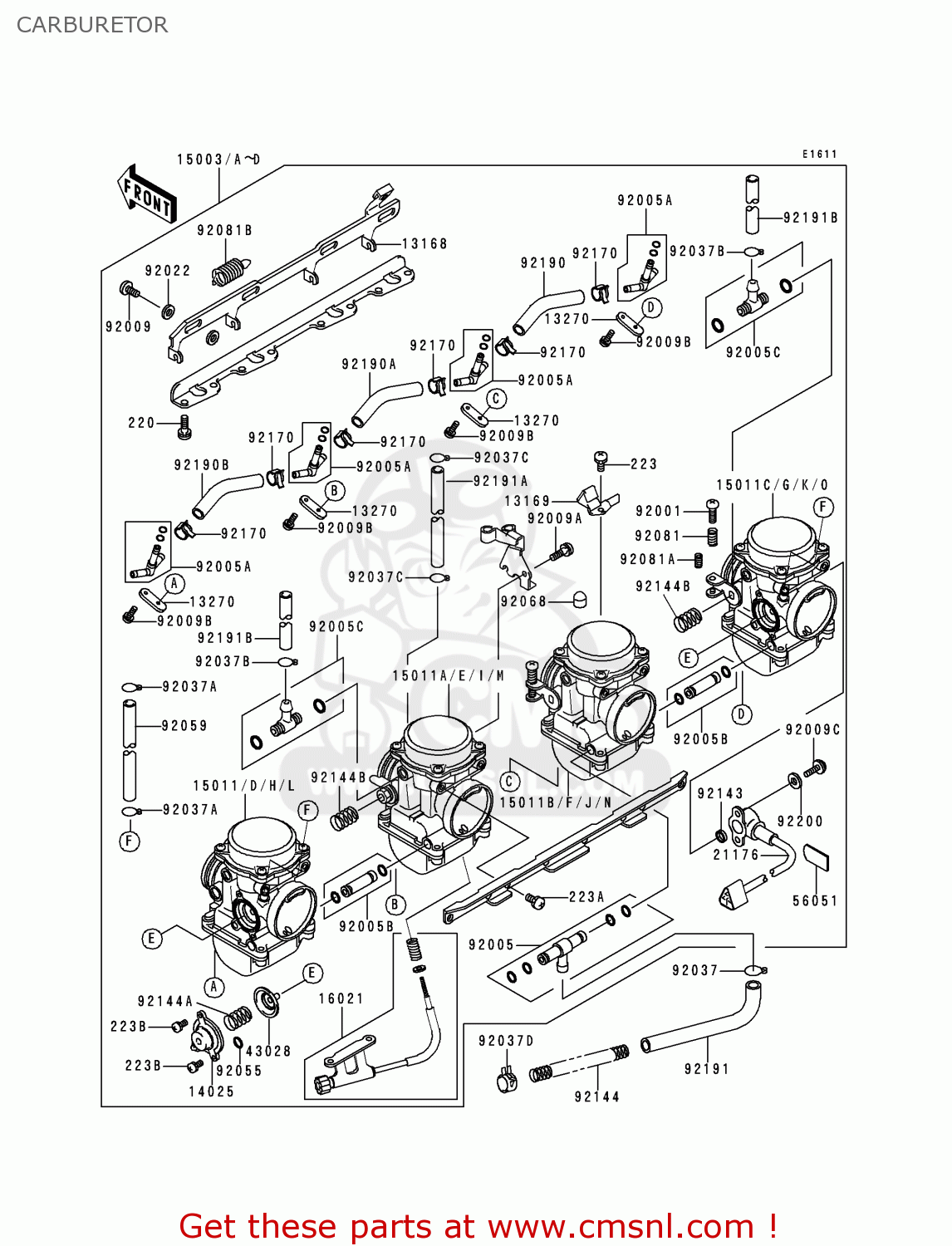

Carburetor diagram ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

CARBURETOR ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST
CARBURETOR ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST
CARBURETOR ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST
prices are in EUR
ref
part #
description
quantity
13168
131681245
ref: 13168
LEVER,STARTER
€ 95.50
13169
131691871
ref: 13169
PLATE,STARTER CABLE
€ 16.00
13270
132701063
ref: 13270
PLATE,JOINT STAY
132701063
€ 21.00
14025
140251903
ref: 14025
COVER,AIR CUT VALVE
140251903
€ 43.00
15003A
150031320
ref: 15003A
ARFG
CARBURETOR-ASSY
€ 1,675.00
15003B
150031321
ref: 15003B
AREUFGFRGRNLNRUK
CARBURETOR-ASSY
€ 1,170.00
15003C
150031340
ref: 15003C
SD
CARBURETOR-ASSY
€ 1,492.50
15003D
150031341
ref: 15003D
ST
CARBURETOR-ASSY
€ 1,492.50
15011D
150111371
ref: 15011D
AREUFGFRGRNLNRUK
CARBURETOR,LH,OUTSIDE
€ 833.00
15011E
150111372
ref: 15011E
AREUFGFRGRNLNRUK
CARBURETOR,LH,INSIDE
€ 833.00
15011F
150111373
ref: 15011F
AREUFGFRGRNLNRUK
CARBURETOR,RH,INSIDE
€ 833.00
15011G
150111374
ref: 15011G
AREUFGFRGRNLNRUK
CARBURETOR,RH,OUTSIDE
€ 833.00
15011H
150111375
ref: 15011H
SD
CARBURETOR,LH,OUTSIDE
€ 659.50
15011I
150111376
ref: 15011I
SD
CARBURETOR,LH,INSIDE
€ 659.50
15011J
150111377
ref: 15011J
SD
CARBURETOR,RH,INSIDE
€ 659.50
15011K
150111378
ref: 15011K
SD
CARBURETOR,RH,OUTSIDE
€ 659.50
15011L
150111379
ref: 15011L
ST
CARBURETOR,LH,OUTSIDE
€ 659.50
15011M
150111380
ref: 15011M
ST
CARBURETOR,LH,INSIDE
€ 659.50
15011N
150111381
ref: 15011N
ST
CARBURETOR,RH,INSIDE
€ 659.50
15011O
150111382
ref: 15011O
ST
CARBURETOR,RH,OUTSIDE
€ 659.50
16021
160211204
ref: 16021
SCREW-THROTTLE STOP
160211204
€ 62.50
21176
211761073
ref: 21176
SENSOR
211761073
€ 402.00
43028
430281084
ref: 43028
DIAPHRAGM,4.9MM,AIR C
430281084
€ 66.50
56051
560511480
ref: 56051
MARK,K-TRIC
€ 14.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
920011998
€ 11.50
92005
920051288
ref: 92005
FITTING
920051288
€ 22.00
92005A
920051291
ref: 92005A
FITTING
920051291
€ 26.50
92005B
920051310
ref: 92005B
FITTING
920051310
€ 25.00
92005C
920051314
ref: 92005C
FITTING
920051314
€ 31.50
92009
920091262
ref: 92009
SCREW
920091262
€ 4.00
92009A
920091365
ref: 92009A
SCREW
920091365
€ 4.50
92009B
920091705
ref: 92009B
SCREW 4X8
920091705
€ 2.50
92009C
920091781
ref: 92009C
SCREW
€ 1.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
920221199
€ 3.00
92037
920371104
ref: 92037
CLAMP,HOSE
920371104
€ 1.00
92037A
920371142
ref: 92037A
CLAMP,TUBE
920371142
€ 2.50
92037B
920371185
ref: 92037B
CLAMP,FUEL TAP HOSE
€ 3.50
92037C
920371201
ref: 92037C
CLAMP
920371201
€ 3.00
92037D
920372082
ref: 92037D
CLAMP
920372082
€ 1.00
92055
920551245
ref: 92055
RING-O
920551245
€ 3.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
920591140
€ 17.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
220B0616
€ 2.50
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
223C0420
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
223B
223D0408
ref: 223B
SCREW-PAN-WS-CROS
€ 1.00
92068
92068006
ref: 92068
RUBBER PLUG
92068006
€ 2.50
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
920811620
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
920811621
€ 3.00
92081B
920811762
ref: 92081B
SPRING,STARTER LEVER
920811762
€ 14.00
92143
921431907
ref: 92143
COLLAR
921431907
€ 6.00
92144
921441874
ref: 92144
SPRING
€ 4.50
92144A
921441885
ref: 92144A
SPRING
921441885
€ 7.50
92144B
921441986
ref: 92144B
SPRING,THROTTLE ADJUS
€ 3.50
92170
921701504
ref: 92170
CLAMP
921701504
€ 3.00
92190
921901530
ref: 92190
TUBE,WATER
€ 7.50
92190A
921901531
ref: 92190A
TUBE,WATER
€ 7.50
92190B
921901539
ref: 92190B
TUBE,WATER
€ 7.50
92191
921911007
ref: 92191
TUBE,FUEL
921911007
€ 8.50
92191A
921911017
ref: 92191A
TUBE
921911017
€ 7.00
92191B
921911118
ref: 92191B
TUBE,AIR VENT
921911118
€ 24.00
92200
922001369
ref: 92200
WASHER
€ 2.50
