IGNITION SWITCH

ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

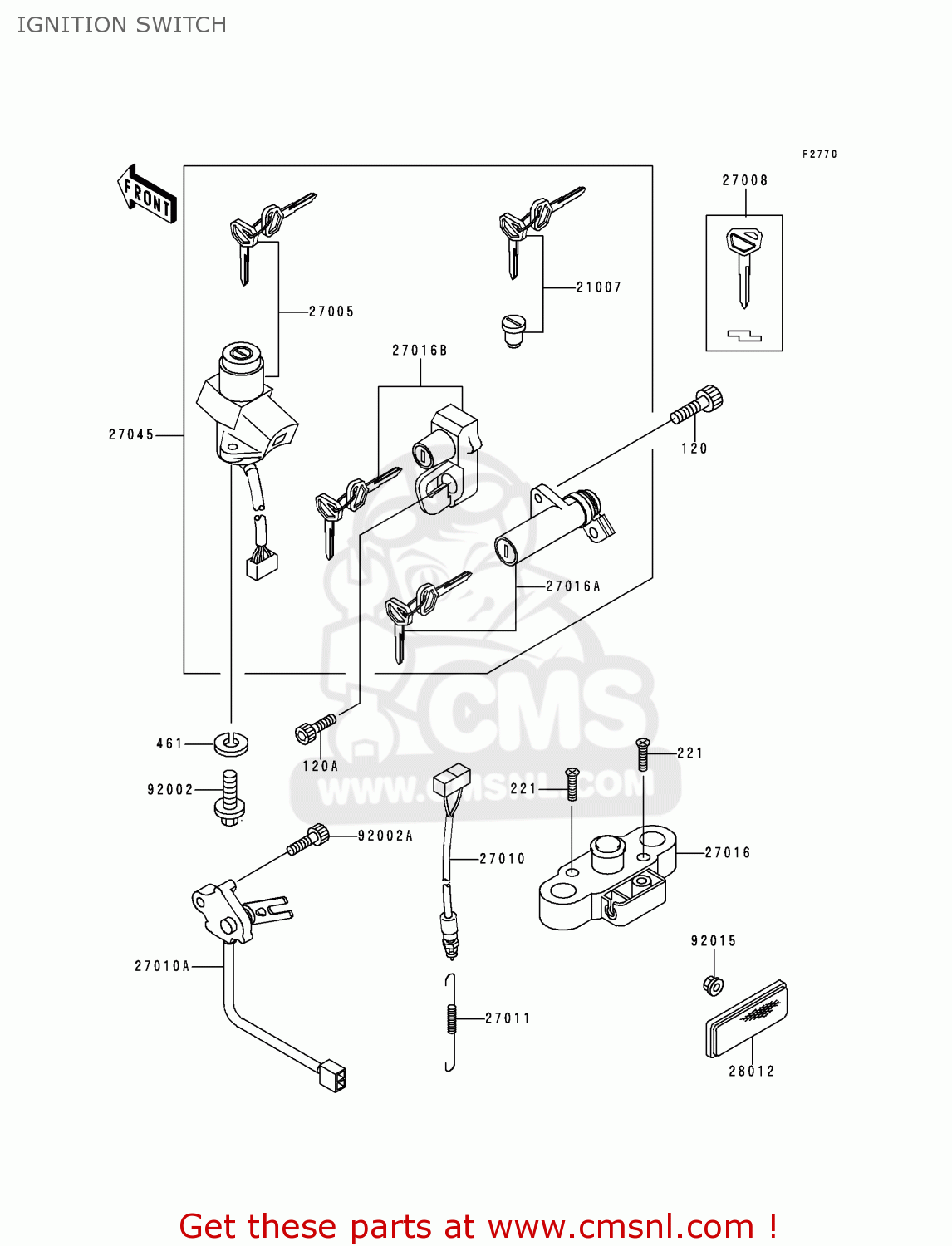

Ignition switch diagram ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

prices are in EUR

ref

part #

description

quantity

120

120S0512
ref: 120

BOLT-SOCKET

€ 1.00

120A

120S0620
ref: 120A

BOLT-SOCKET,6X20

€ 1.00

221

221C0630
ref: 221

SCREW-CSK-CROS,6X30

€ 1.00

461

461L0600
ref: 461

WASHER-SPRING

€ 0.50

21007

210075037
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27005

270055110
ref: 27005

SWITCH-ASSY-IGNITION

€ 179.50

27008

270081173
ref: 27008

KEY-LOCK,BLANK

€ 13.00

27010

270101152
ref: 27010

SWITCH,BRAKE LAMP

€ 20.00

27010A

270101371
ref: 27010A

SWITCH,SIDE STAND

€ 50.50

27011

27011021
ref: 27011

SPRING,BRAKE LAMP SW

€ 15.50

27016

270161098
ref: 27016

LOCK-ASSY,SEAT STRIKE

€ 72.50

27016A

270165205
ref: 27016A

LOCK-ASSY,SEAT

€ 59.50

27016B

270165212
ref: 27016B

LOCK-ASSY,HELMET

€ 56.50

27045

270455049
ref: 27045

SWITCH-ASSY

€ 271.00

28012

280121077
ref: 28012

REFLECTOR-REFLEX

€ 16.00

92002

920021333
ref: 92002

BOLT

€ 1.50

92002A

920021582
ref: 92002A

BOLT,6X25

€ 3.00

92015

920151259
ref: 92015

NUT,FLANGED,5MM

€ 2.50
