IGNITION SYSTEM

ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

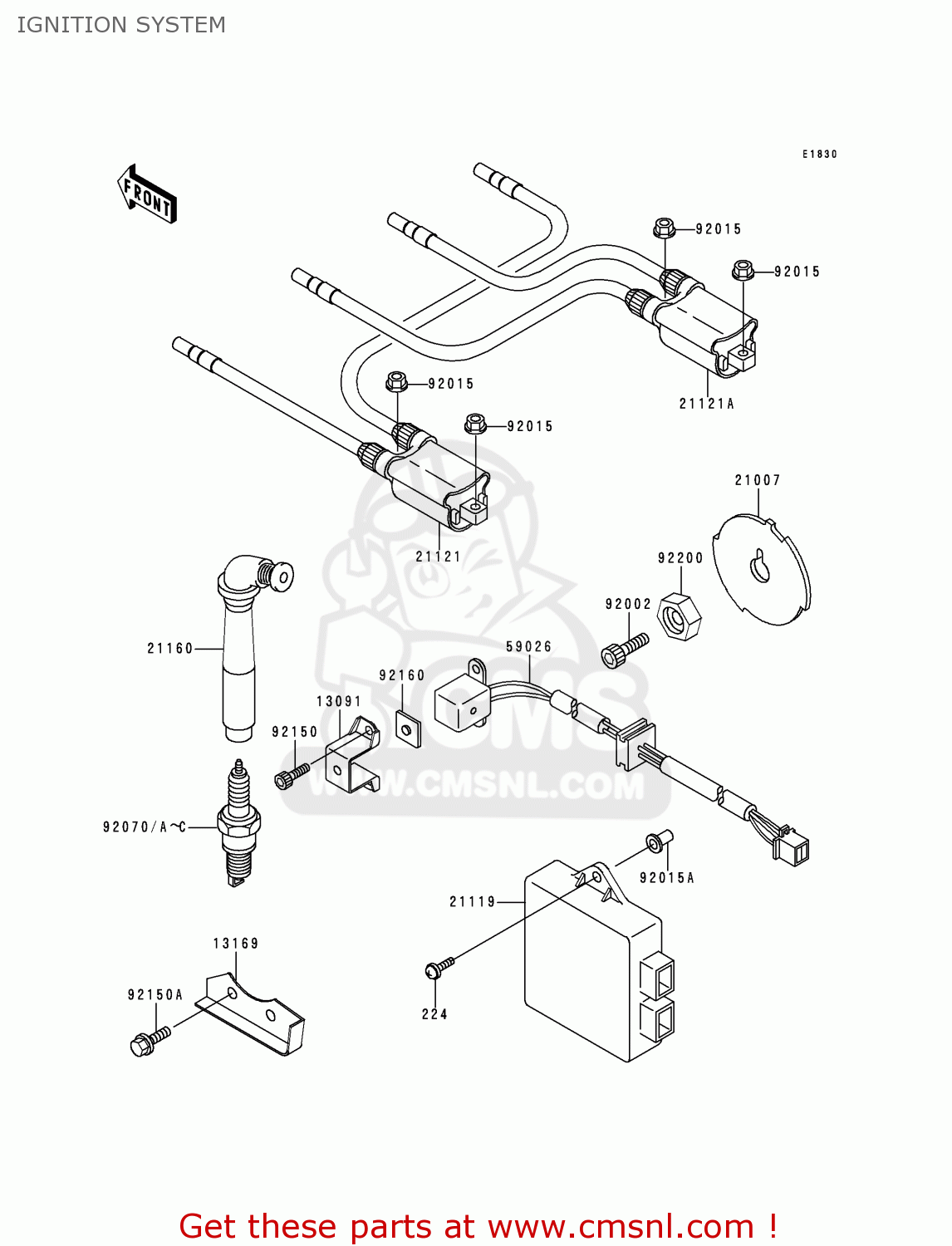

Ignition system diagram ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

prices are in EUR

ref

part #

description

quantity

224

224C0625
ref: 224

SCREW-PAN-WP-CROS

€ 0.50

13091

130911562
ref: 13091

HOLDER

€ 5.50

13169

131691748
ref: 13169

PLATE,CHAIN GUIDE

€ 10.50

21007

210071277
ref: 21007

ROTOR,PULSING

€ 31.50

21119

211191491
ref: 21119

IGNITER

€ 587.50

21121

211211267
ref: 21121

COIL-IGNITION,#1&#4

€ 178.50

21121A

211211268
ref: 21121A

COIL-IGNITION,#2&#3

€ 167.50

21160

211601098
ref: 21160

CAP-ASSY-PLUG

€ 30.50

59026

590261132
ref: 59026

COIL-PULSING

€ 114.50

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151700A
ref: 92015A

NUT

€ 5.50

92070

920701145
ref: 92070

CR9EK (NGK SPARKPLUG)

€ 8.50

92070A

920701158
ref: 92070A

CR8EK (NGK SPARKPLUG)

€ 10.00

92070B

ref: 92070B

92070C

ref: 92070C

92150

921501180
ref: 92150

BOLT

€ 2.50

92150A

921501841
ref: 92150A

BOLT,6X12

€ 3.50

92160

921601091
ref: 92160

DAMPER

€ 3.00

92200

922001173
ref: 92200

WASHER,ROTOR

€ 6.50
