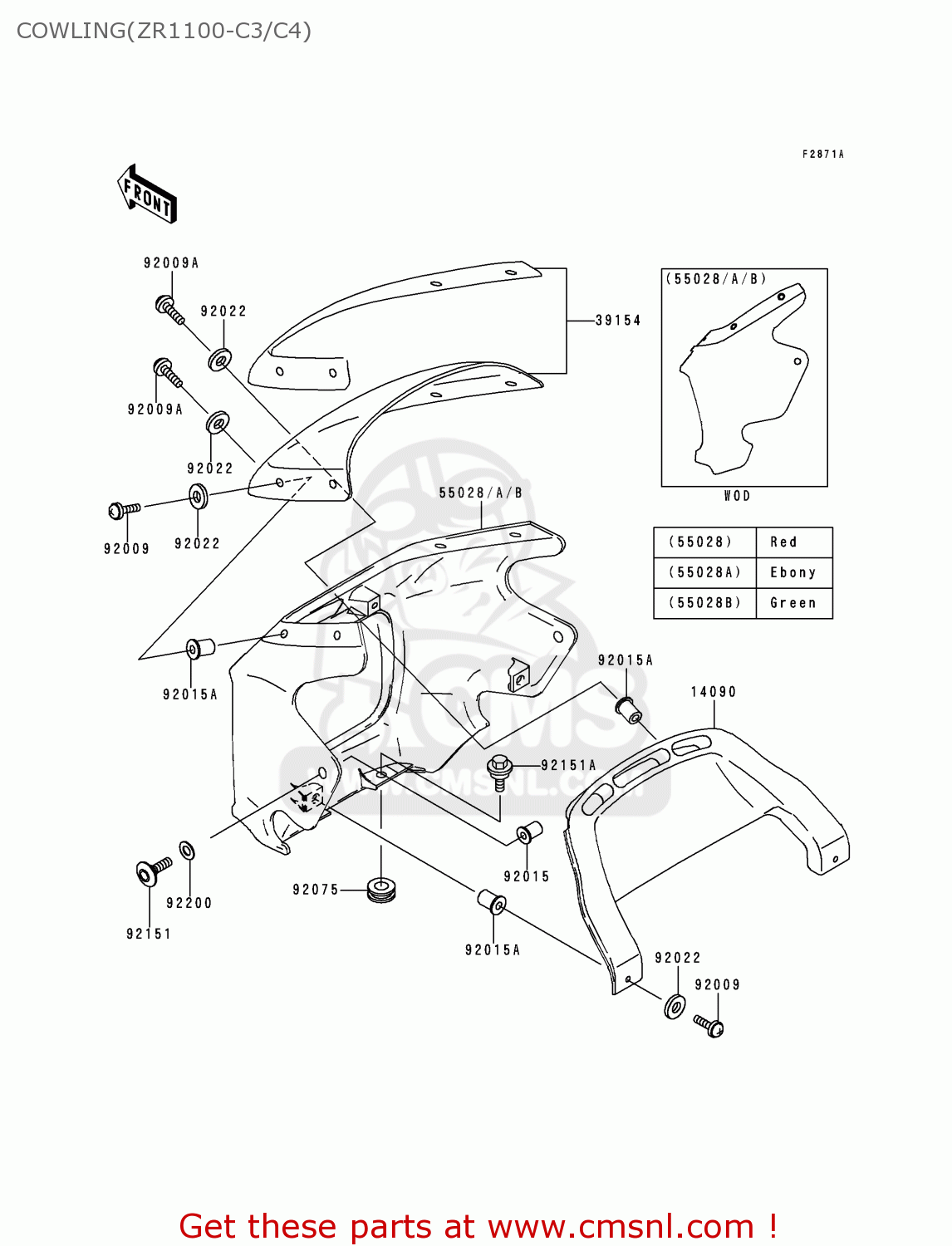

COWLING(ZR1100-C3/C4)

ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

Cowling(zr1100-c3/c4) diagram ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

prices are in EUR

ref

part #

description

quantity

14090

140901776
ref: 14090

COVER,INNER COWLING

€ 112.00

39154

391545008
ref: 39154

WINDSHIELD

€ 300.50

55028A

550281352H8
ref: 55028A

COWLING,UPP,EBONY

€ 604.50

55028B

550281352U5
ref: 55028B

COWLING,UPP,P.J.GREEN

€ 505.00

92009

920091654
ref: 92009

SCREW

€ 0.50

92009A

920091656
ref: 92009A

SCREW

€ 2.50

92015

920151700A
ref: 92015

NUT

€ 5.50

92015A

920151757A
ref: 92015A

NUT,5MM

€ 5.00

92022

920221521
ref: 92022

WASHER,NYLON,5.3X11.5

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00

92151

921511149
ref: 92151

BOLT,SOCKET,6X18

€ 5.50

92151A

921511186
ref: 92151A

BOLT,FLANGED,6MM

€ 4.50

92200

922001013
ref: 92200

WASHER,10.3X20X1

€ 3.00
