MUFFLER(S)

ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

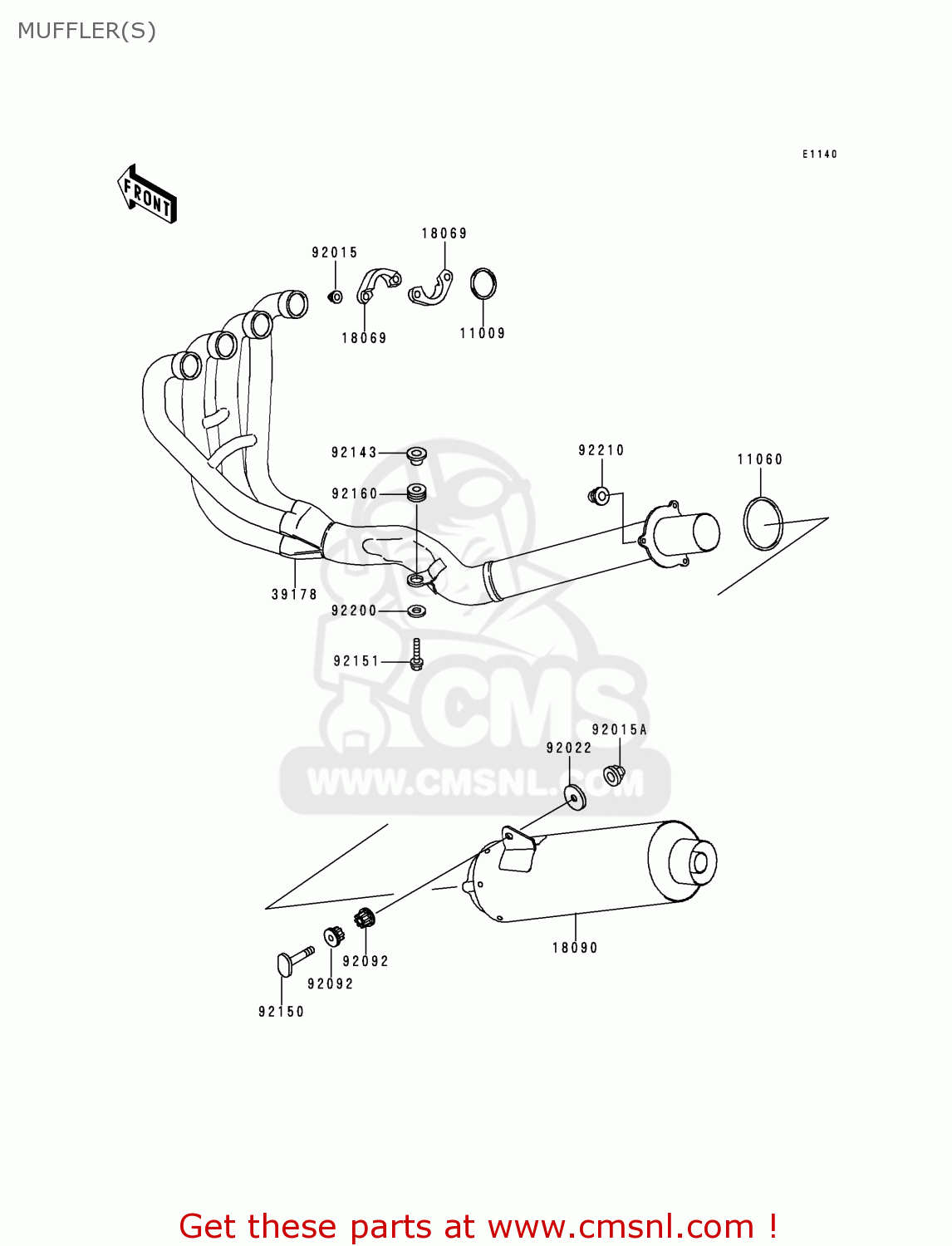

Muffler(s) diagram ZR1100C3 ZRX1100 1999 EUROPE UK FR NL AR FG GR NR SD ST

prices are in EUR

ref

part #

description

quantity

11009

110091840
ref: 11009

GASKET,EXHAUST PIPE H (NAS)

€ 7.00

11060

110601813
ref: 11060

GASKET,MUFFLER CONNEC (NAS)

€ 15.50

18069

180691139
ref: 18069

HOLDER-EXHAUST PIPE

€ 18.50

18090

180901717
ref: 18090

BODY-COMP-MUFFLER

€ 698.00

39178

391781256
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 1,466.50

92015

920151380
ref: 92015

NUT,LOCK,8MM

€ 3.00

92015A

920151649
ref: 92015A

NUT,10MM

€ 3.50

92022

92022246
ref: 92022

WASHER,10.5X26X2.3

€ 4.00

92092

920921013
ref: 92092

BUSHING-RUBBER,MUFFLE

€ 11.50

92143

921431709
ref: 92143

COLLAR

€ 4.00

92150

921501792
ref: 92150

BOLT,10X55

€ 5.50

92151

921511208
ref: 92151

BOLT,8X35

€ 3.00

92160

921601543
ref: 92160

DAMPER,MUFFLER

€ 2.00

92200

922001374
ref: 92200

WASHER

€ 3.00

92210

922101127
ref: 92210

NUT

€ 2.50

MUFFLER(S)

all assemblies
