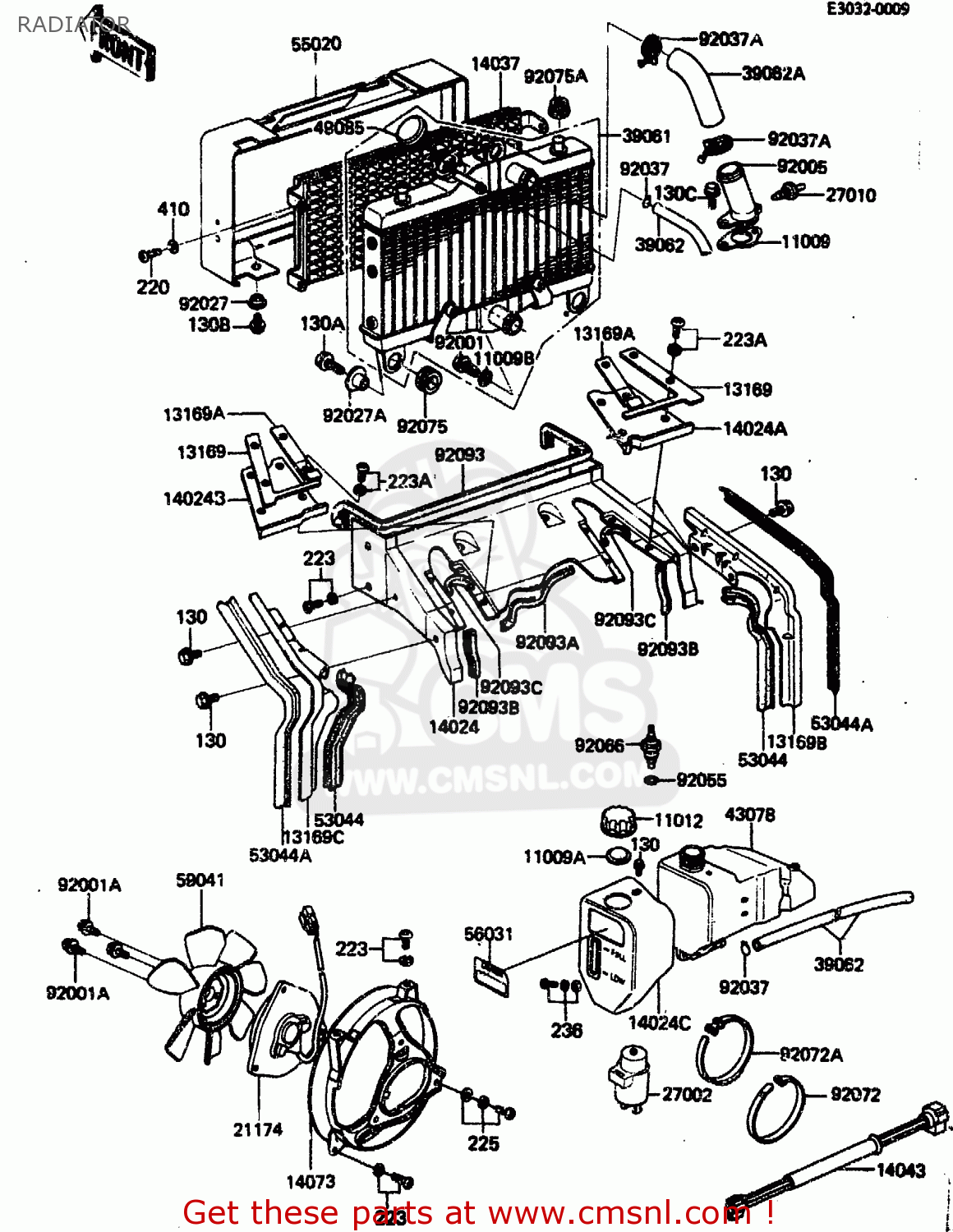

RADIATOR

ref

part #

description

quantity

11009

110091100
ref: 11009

GASKET,HOSE FITTING (MCA)

€ 2.50

11009A

110091145
ref: 11009A

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11009B

110091152
ref: 11009B

GASKET,DRAIN BOLT (NAS)

€ 4.50

11012

110121084
ref: 11012

CAP

€ 1.50

13169

131691714
ref: 13169

PLATE,RADIATOR OUTSID

€ 3.50

13169A

131691715
ref: 13169A

PLATE,RADIATOR INSIDE

€ 3.00

13169B

131691740
ref: 13169B

PLATE,RADIATOR COVER

€ 19.00

13169C

131691741
ref: 13169C

PLATE,RADIATOR COVER

€ 19.00

14024

140251665
ref: 14024

COVER,RADIATOR

€ 57.50

14024A

140251666
ref: 14024A

COVER,RH

€ 17.00

14024B

140251667
ref: 14024B

COVER

€ 17.00

14024C

140251681
ref: 14024C

COVER,RESERVOIR TANK

€ 38.50

14037

140371009
ref: 14037

SCREEN,RADIATOR

€ 54.50

14043

140431053
ref: 14043

FILTER,AUDIO-NOISE

€ 38.50

14073

140731100
ref: 14073

SHROUD,FAN

€ 80.00

21174

211741052
ref: 21174

MOTOR-ELECTRIC,FAN

€ 362.00

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27010

270101026
ref: 27010

SWITCH,FAN

€ 66.00

39061

390611017
ref: 39061

RADIATOR-ASSY

€ 602.00

39062

390621003
ref: 39062

HOSE,COOLNG,7X12X1500

€ 16.50

39062A

390621019
ref: 39062A

HOSE-COOLING

€ 18.50

43078

430781007
ref: 43078

RESERVOIR,TANK

€ 67.50

49085

490851051
ref: 49085

CAP-ASSY-PRESSURE,RAD

€ 31.00

53044

530441114
ref: 53044

TRIM,L=317

€ 14.00

53044A

530441115
ref: 53044A

TRIM,RADIATER PLATE,O

€ 17.00

55020

550201102
ref: 55020

GUARD,RADIATOR

€ 197.50

56031

560311221
ref: 56031

LABEL,COOLANT

€ 2.50

59041

590411051
ref: 59041

FAN,COOLING

€ 65.50

92001

920011277
ref: 92001

PLUG,RADIATOR DRAIN

€ 13.50

92001A

920011902
ref: 92001A

BOLT

€ 1.50

92005

920051012
ref: 92005

FITTING,UPPER HOSE

€ 22.50

92027

920271577
ref: 92027

COLLAR,RADIATOR GUARD

€ 5.00

92027A

920271699
ref: 92027A

COLLAR,RADIATOR

€ 3.00

92037

920371104
ref: 92037

CLAMP,HOSE

€ 1.00

92037A

920371177
ref: 92037A

CLAMP,HOSE

€ 6.00

92055

92055073
ref: 92055

RING-O,13.5MM

€ 6.50

92066

920661028
ref: 92066

SENDER,WATER TEMPERAT

€ 38.00

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92072A

92072056
ref: 92072A

BAND,RUBBER

€ 3.00

92075

920751127
ref: 92075

DAMPER,RADIATOR

€ 3.50

92075A

920751469
ref: 92075A

DAMPER,RADIATOR GUARD

€ 3.50

92093

920931089
ref: 92093

SEAL,RADIATOR,L=940

€ 21.00

92093A

920931090
ref: 92093A

SEAL,RADIATOR,L=220

€ 7.00

92093B

920931091
ref: 92093B

SEAL,RADIATOR,L=55

€ 3.00

92093C

920931092
ref: 92093C

SEAL,RADIATOR,L=80

€ 4.50

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

130A

130C0825
ref: 130A

BOLT-FLANGED,8X25

€ 2.00

130B

130N0612
ref: 130B

BOLT-FLANGED,6X12

€ 2.50

130C

130X0625
ref: 130C

BOLT-FLANGED

€ 2.00

220

220B0612
ref: 220

SCREW-PAN HEAD,6X12

€ 1.00

223

223B0610
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

223A

223C0614
ref: 223A

SCREW-PAN-WS-CROS

€ 2.00

225

225B0510
ref: 225

SCREW-PAN-WSP-CROS

€ 0.50

236

236D0616
ref: 236

SCREW-PAN-WSP-CROS

€ 2.50

410

410B0600
ref: 410

WASHER-PLAIN-SMALL,6M

€ 0.50
