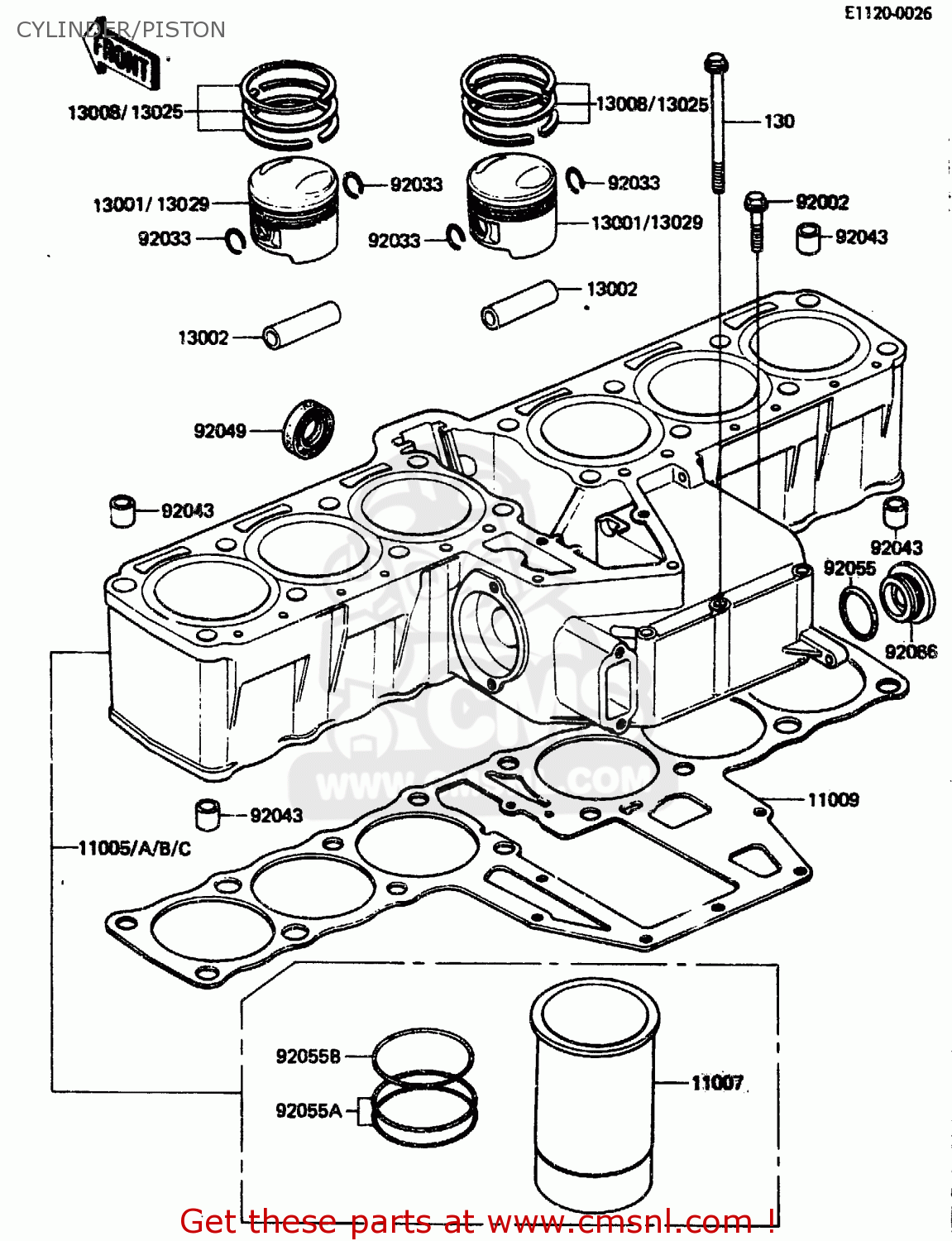

CYLINDER/PISTON

ref

part #

description

quantity

11005

110051104
ref: 11005

CYLINDER-ENGINE

€ 1,628.50

11007

110071006
ref: 11007

LINER-CYLINDER

€ 93.50

11009

110091101
ref: 11009

GASKET,CYLINDER BASE (MCA)

€ 35.50

13001

130011120
ref: 13001

PISTON-ENGINE,STD

€ 53.50

13002

13002032
ref: 13002

PIN-PISTON

€ 14.50

13008

130085059
ref: 13008

RING-SET-PISTON,STD

€ 65.00

13025

130255025
ref: 13025

RING-SET-PISTON L,O/S

€ 87.00

13029

130291053
ref: 13029

PISTON-ENGINE L,O/S,0

€ 63.00

92002

920021105
ref: 92002

BOLT, 6X28

€ 3.50

92033

92036005
ref: 92033

CIRCLIP-PISTON PIN

€ 2.50

92043

92042028
ref: 92043

PIN-DOWEL

€ 1.00

92049

920491028
ref: 92049

OIL SEAL,TC17317

€ 8.00

92055

92055091
ref: 92055

0 RING

€ 4.00

92055A

920551032
ref: 92055A

RING-O,67MM

€ 7.50

92055B

920551035
ref: 92055B

RING-O,67.5MM

€ 8.50

92066

92067024
ref: 92066

PLUG,RELEASE

€ 7.50

130

130Y0685
ref: 130

BOLT-FLANGED

€ 2.50
