AIR FILTER
ZN1300A1 1983 USA CANADA

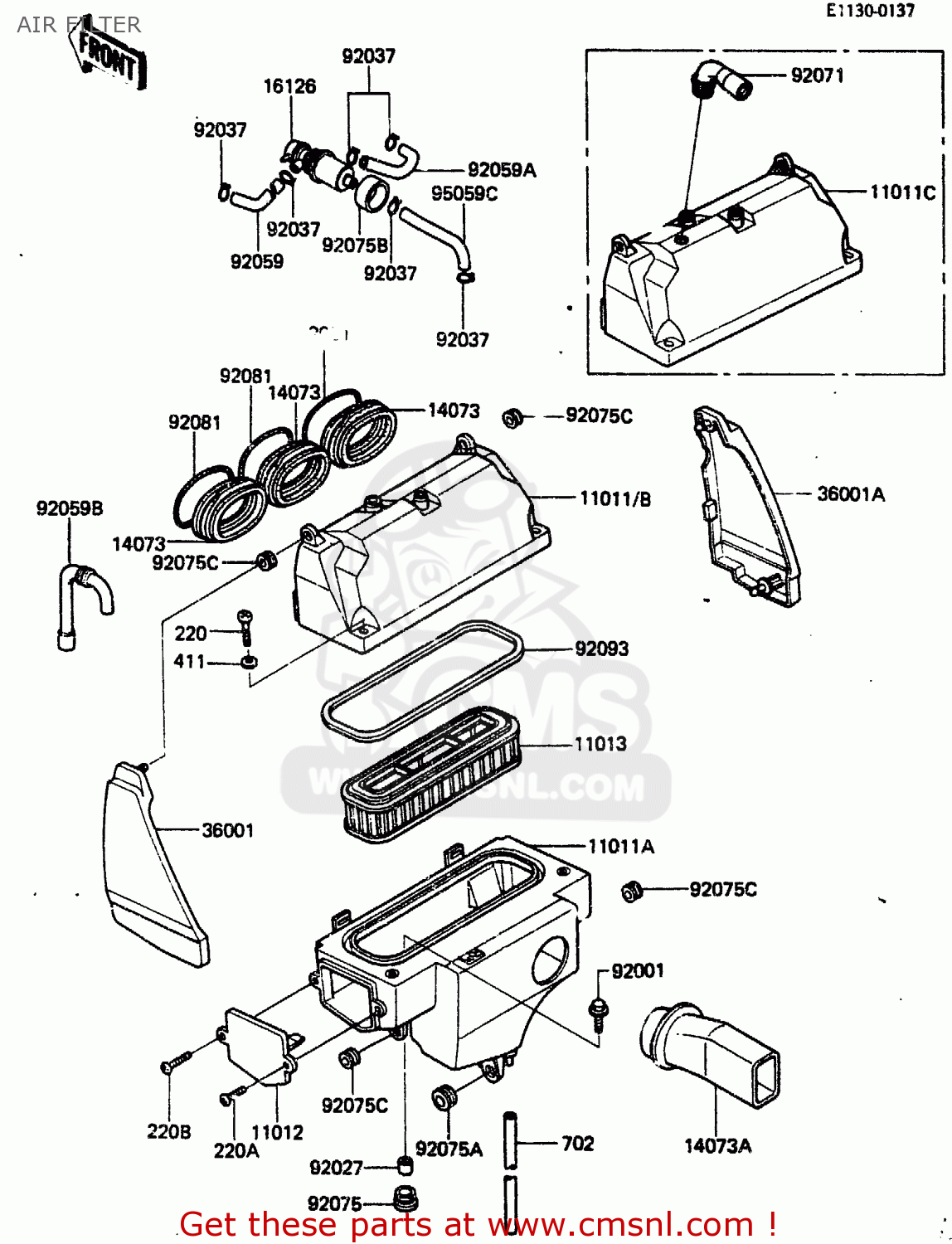

Air filter diagram ZN1300A1 1983 USA CANADA
AIR FILTER ZN1300A1 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11011
110111132
ref: 11011
US
AIR FILTER CASE
€ 44.00
11011A
110111133
ref: 11011A
CASE-AIR FILTER,LWR
€ 95.50
11011B
110111136
ref: 11011B
CN
CASE-AIR FILTER,UPP
€ 37.00
11012
110121285
ref: 11012
CAP,AIR FILTER
€ 14.50
11013
110131073
ref: 11013
ELEMENT-AIR FILTER
€ 29.00
14073
140731098
ref: 14073
DUCT,AIR FILTER
€ 14.50
14073A
140731099
ref: 14073A
DUCT,AIR FILTER
€ 50.50
16126
161261015
ref: 16126
US
AIR SWITCH VALVE ASSEMBLY
€ 222.50
36001
360011202
ref: 36001
COVER-SIDE,AIR FILTER
€ 42.00
36001A
360011203
ref: 36001A
COVER-SIDE,AIR FILTER
€ 42.00
92001
920011140
ref: 92001
BOLT,6X25,W/WASHER
€ 3.50
92027
92027120
ref: 92027
COLLAR
€ 3.00
92037
92037213
ref: 92037
US
CLAMP, BREATHER TUBE
€ 2.50
92059
920591076
ref: 92059
US
TUBE,SWITCH VALVE,LH
€ 9.00
92059A
920591077
ref: 92059A
US
TUBE,SWITCH VALVE,R.H
€ 9.50
92059B
920591266
ref: 92059B
TUBE,ARI FILTER
€ 11.50
92059C
920591272
ref: 92059C
US
AIRCUT VALVE TUBE
€ 11.50
92075
920751124
ref: 92075
DAMPER,AIR CLEANER
€ 3.00
92075A
920751126
ref: 92075A
DAMPER,CLEANER COVER
€ 6.00
92075B
920751195
ref: 92075B
US
AIR SWITCHING VALVE DAMPER
€ 3.00
92075C
920751470
ref: 92075C
DAMPER,AIR FILTER
€ 4.50
92081
920811540
ref: 92081
SPRING,COIL,3.6X237.2
€ 6.00
92093
920931088
ref: 92093
SEAL,AIR FILTER
€ 14.00
220
220B0630
ref: 220
SCREW-PAN HEAD,6X30
€ 2.50
220A
220C0620
ref: 220A
SCREW-PAN-CROS,6X20,B
€ 1.50
220B
220C0630
ref: 220B
SCREW-PAN-CROS,6X30,B
€ 1.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
702
702A06110
ref: 702
TUBE-RUBBER,6X110
€ 14.50
