FRAME FITTING
ZN1300A1 1983 USA CANADA

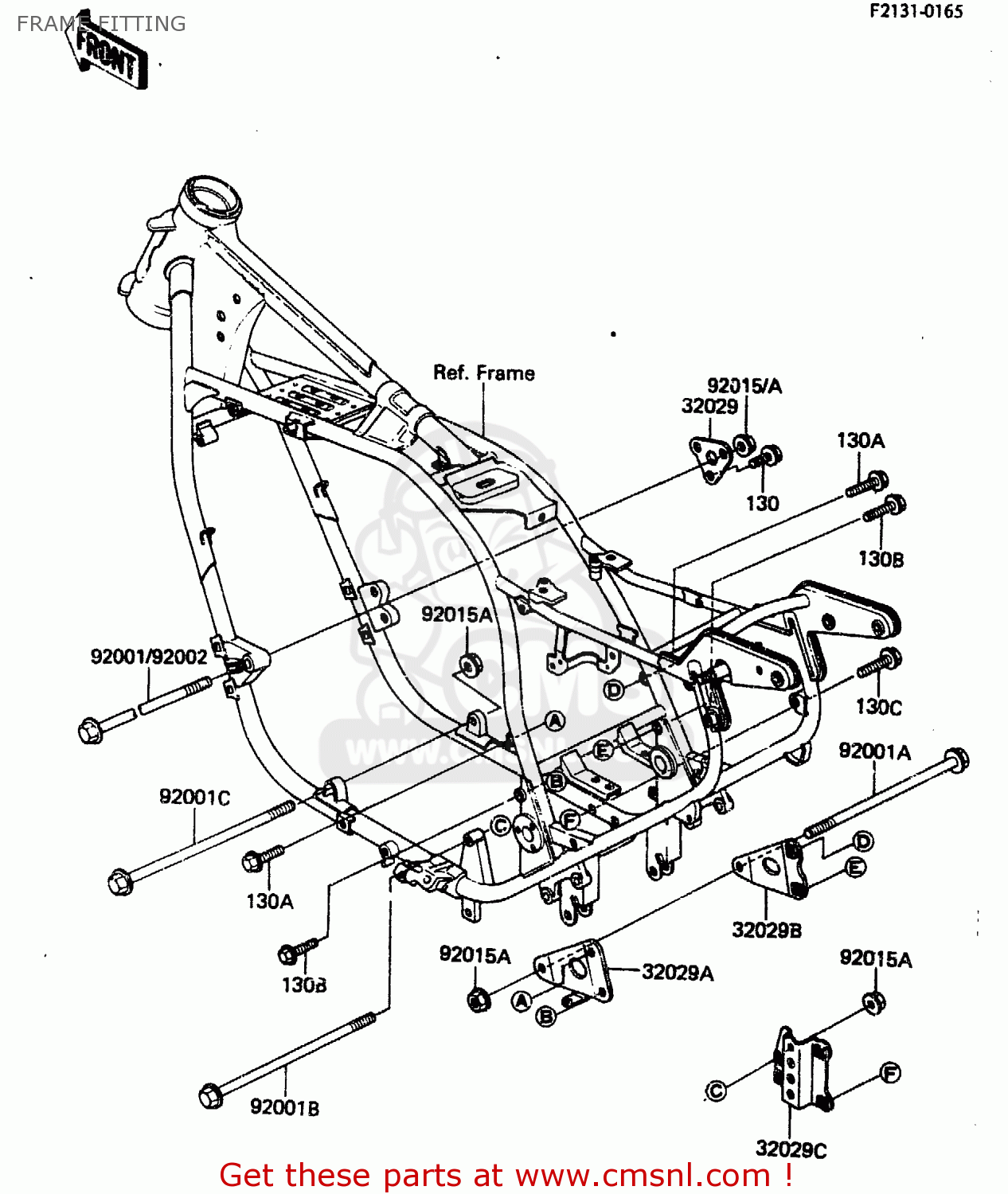

Frame fitting diagram ZN1300A1 1983 USA CANADA
FRAME FITTING ZN1300A1 1983 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
32029
320291061
ref: 32029
BRACKET-ENGINE,FR,RH,
€ 7.00
32029A
320291260
ref: 32029A
BRACKET-ENGINE,RR,UPP
€ 17.00
32029B
320291261
ref: 32029B
BRACKET-ENGINE,RR,UPP
€ 15.00
32029C
320291262
ref: 32029C
BRACKET-ENGINE,RR,LWR
€ 18.00
92001
920011694
ref: 92001
BOLT,10X380
€ 10.00
92001A
920011988
ref: 92001A
BOLT,FLANGED,10X270
€ 12.00
92001B
920011992
ref: 92001B
BOLT,FLANGED,10X305
€ 16.50
92001C
920011993
ref: 92001C
BOLT,FLANGED,10X315
€ 16.50
92015
920151172
ref: 92015
NUT,FLANGED,10MM
€ 3.00
92015A
920151180
ref: 92015A
NUT,FLANGED,10MM,BLAC
€ 2.50
130
130J0820
ref: 130
BOLT-FLANGED,8X20
€ 0.50
130A
130J0835
ref: 130A
BOLT-FLANGED,8X35,BLA
€ 2.50
130B
130J0840
ref: 130B
BOLT-FLANGED,8X40
€ 3.00
130C
130J0855
ref: 130C
BOLT-FLANGED,8X55
€ 2.50
