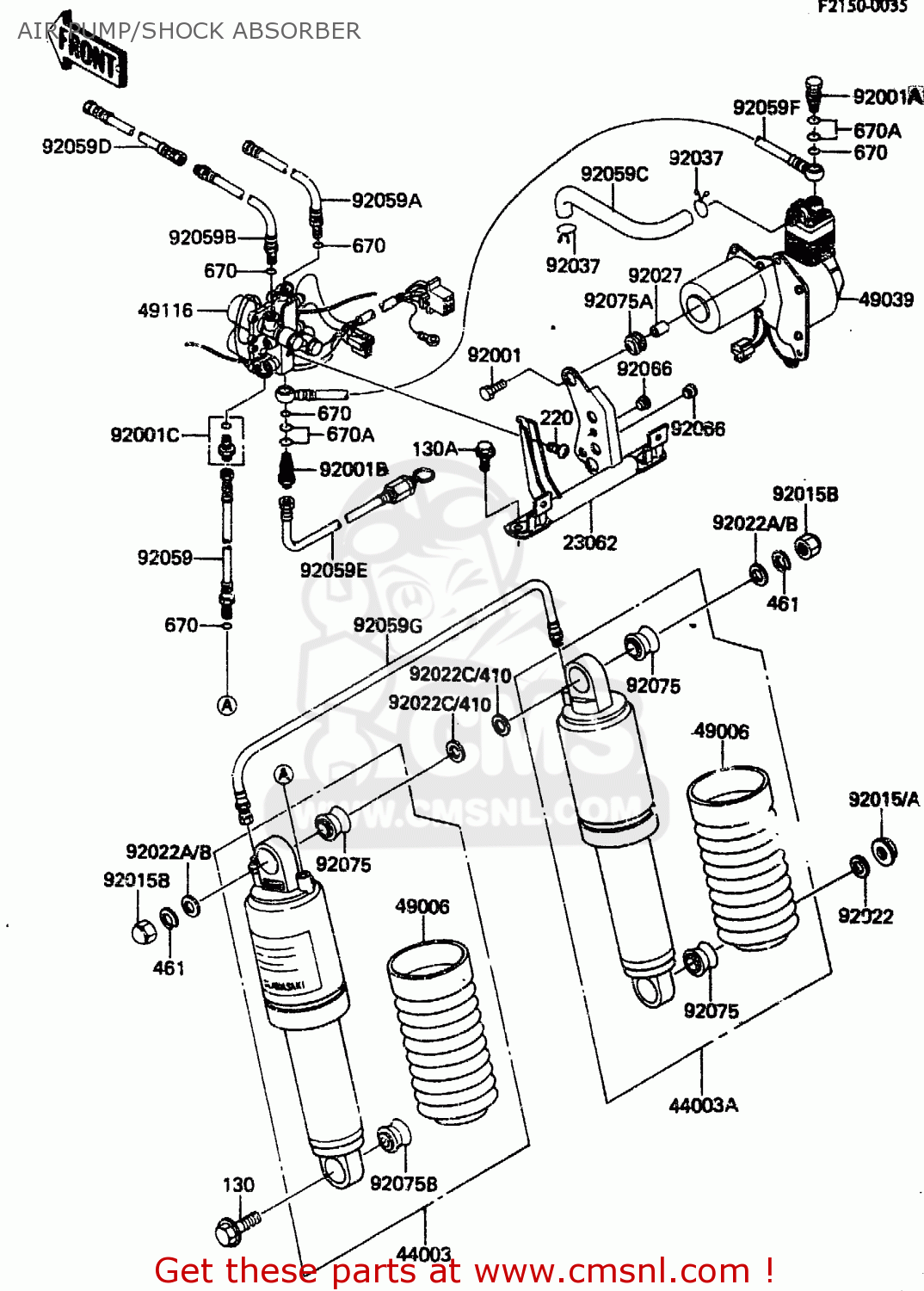

AIR PUMP/SHOCK ABSORBER

ref

part #

description

quantity

23062

230621055
ref: 23062

BRACKET-COMP,AIR PUMP

€ 25.00

44003

440031473
ref: 44003

DAMPER-ASSY,LH

€ 454.00

44003A

440031474
ref: 44003A

DAMPER-ASSY,RH

€ 454.00

49006

490061158
ref: 49006

BOOT,SHOCKABSORBER

€ 34.00

49039

490391051
ref: 49039

PUMP-AIR

€ 566.50

49116

491161053
ref: 49116

VALVE-ASSY,AIR PUMP

€ 505.00

92001

920011826
ref: 92001

BOLT,6X20

€ 2.50

92001A

920011876
ref: 92001A

BOLT,AIR PUMP

€ 9.50

92001B

920011877
ref: 92001B

BOLT,VALVE

€ 13.00

92001C

920011878
ref: 92001C

BOLT,NIPPLE

€ 13.00

92015

920151234
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92015B

92020014
ref: 92015B

NUT,CAP,12MM

€ 6.50

92022

920221193
ref: 92022

WASHER,10.5X30X2.3

€ 4.50

92022A

920221196
ref: 92022A

WASHER,12.4X28X4.5

€ 3.00

92027

92027129
ref: 92027

COLLAR,6.8X10X8.5

€ 3.00

92037

920371468
ref: 92037

CLAMP

€ 4.00

92059

920591286
ref: 92059

TUBE,AIR,RR,L=579.8

€ 44.00

92059A

920591287
ref: 92059A

TUBE,AIR,FR,L=1100

€ 56.50

92059B

920591288
ref: 92059B

TUBE,AIR GAUGE,L=1900

€ 54.00

92059C

920591373
ref: 92059C

TUBE

€ 18.00

92059D

920591374
ref: 92059D

TUBE

€ 34.00

92059E

920591384
ref: 92059E

TUBE

€ 140.00

92059F

920591385
ref: 92059F

TUBE,L=200

€ 50.00

92059G

920591386
ref: 92059G

TUBE,SHOCKABSORBER

€ 74.50

92066

92074028
ref: 92066

PLUG,RUBBER

€ 2.50

92075

920751141
ref: 92075

BUSHING,SHOCK ABSORBE

€ 10.00

92075A

920751409
ref: 92075A

DAMPER

€ 4.00

92075B

920751586
ref: 92075B

DAMPER,SHOCKABSORBER

€ 10.50

130

130B1035
ref: 130

BOLT-FLANGED,10X35

€ 2.50

130A

130J0660
ref: 130A

BOLT-FLANGED,6X60

€ 2.50

220

220C0610
ref: 220

SCREW-PAN-CROS,6X10

€ 1.00

410

410B1400
ref: 410

410B1400

461

461F1200
ref: 461

WASHER-SPRING,12MM

€ 0.50

670

670B1506
ref: 670

O RING,6MM

€ 1.00

670A

670B1508
ref: 670A

O RING,8MM

€ 1.00

all assemblies
