Genuine ZL Kawasaki Parts delivered quickly!


IGNITION SYSTEM

ZL1000A1 1987 EUROPE UK FR FG NR SD ST

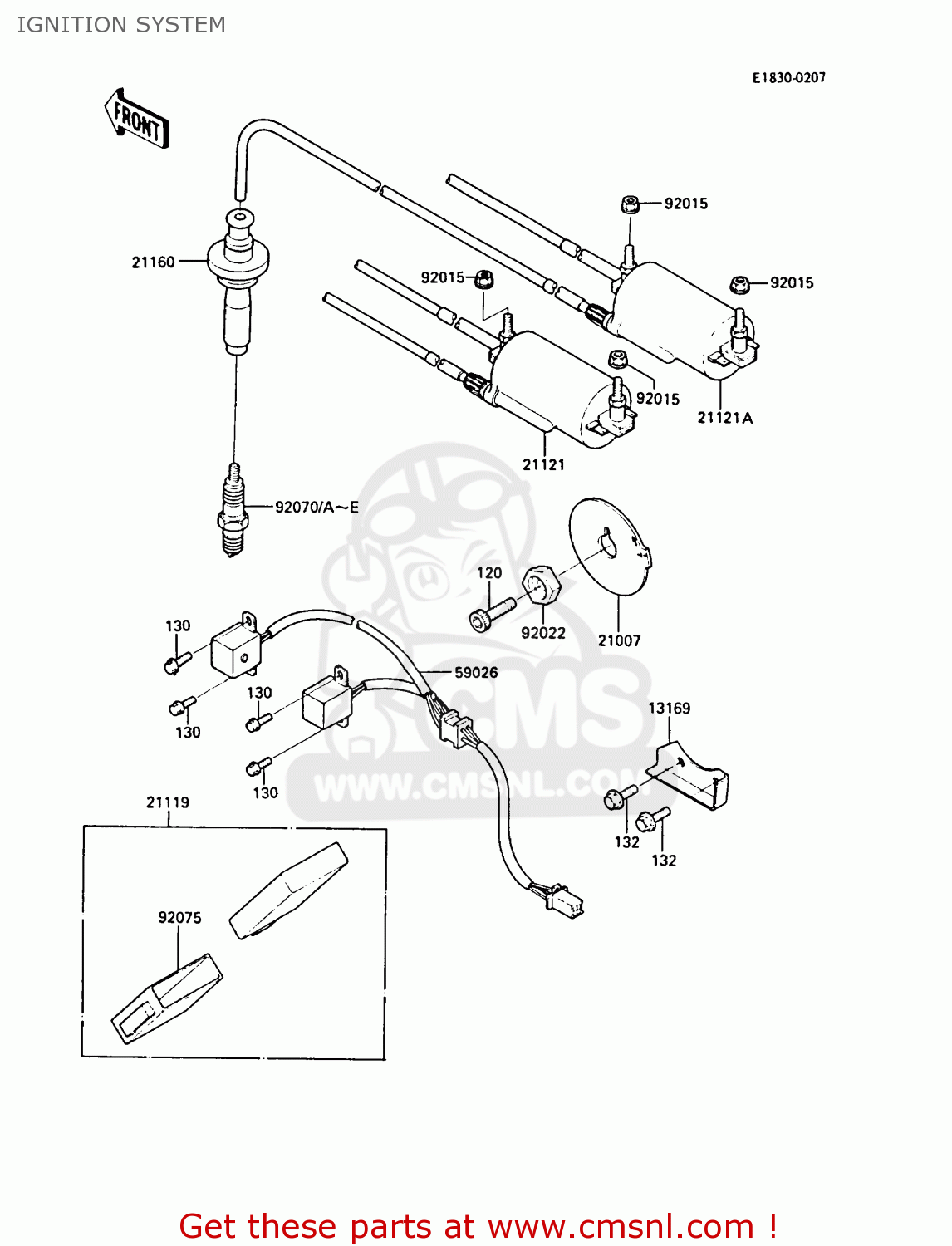

Ignition system diagram ZL1000A1 1987 EUROPE UK FR FG NR SD ST

IGNITION SYSTEM ZL1000A1 1987 EUROPE UK FR FG NR SD ST
IGNITION SYSTEM ZL1000A1 1987 EUROPE UK FR FG NR SD ST
IGNITION SYSTEM ZL1000A1 1987 EUROPE UK FR FG NR SD ST
prices are in EUR
ref
part #
description
quantity
13169
131691748
ref: 13169
PLATE,CHAIN GUIDE
131691748
€ 10.50
21007
210071109
ref: 21007
ROTOR,PULSING COIL
210071109
€ 36.00
21119
211191202
ref: 21119
IGNITER
€ 596.50
21121
211211135
ref: 21121
COIL-IGNITION,#1&4
211211135
€ 129.50
21121A
211211136
ref: 21121A
COIL-IGNITION,#2&3
€ 129.50
21160
211601065
ref: 21160
CAP-ASSY-PLUG
211601065
€ 33.50
59026
590261061
ref: 59026
COIL-PULSING
590261061
€ 192.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92022
920221497
ref: 92022
WASHER,ROTOR,HEX-HEAD
€ 6.50
92070

ref: 92070
92070A
920701019
ref: 92070A
DR8ES (NGK SPARKPLUG)
€ 4.00
92070B

ref: 92070B
92070C
920701113
ref: 92070C
DR7ES (NGK SPARKPLUG)
€ 4.00
92070C
920701113
ref: 92070C
DR7ES (NGK SPARKPLUG)
€ 4.00
92070D
920701116
ref: 92070D
DR8ES-L (NGK SPARKPLU
€ 4.00
92070E

ref: 92070E
92075
920751592
ref: 92075
DAMPER,IGNITER
€ 26.50
120
120P0825
ref: 120
BOLT,SOCKET,8X25
120P0825
€ 1.50
130
130G0512
ref: 130
BOLT-FLANGED
130G0512
€ 1.00
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
