FRAME FITTINGS
ZL1000A1 1987 EUROPE UK FR FG NR SD ST

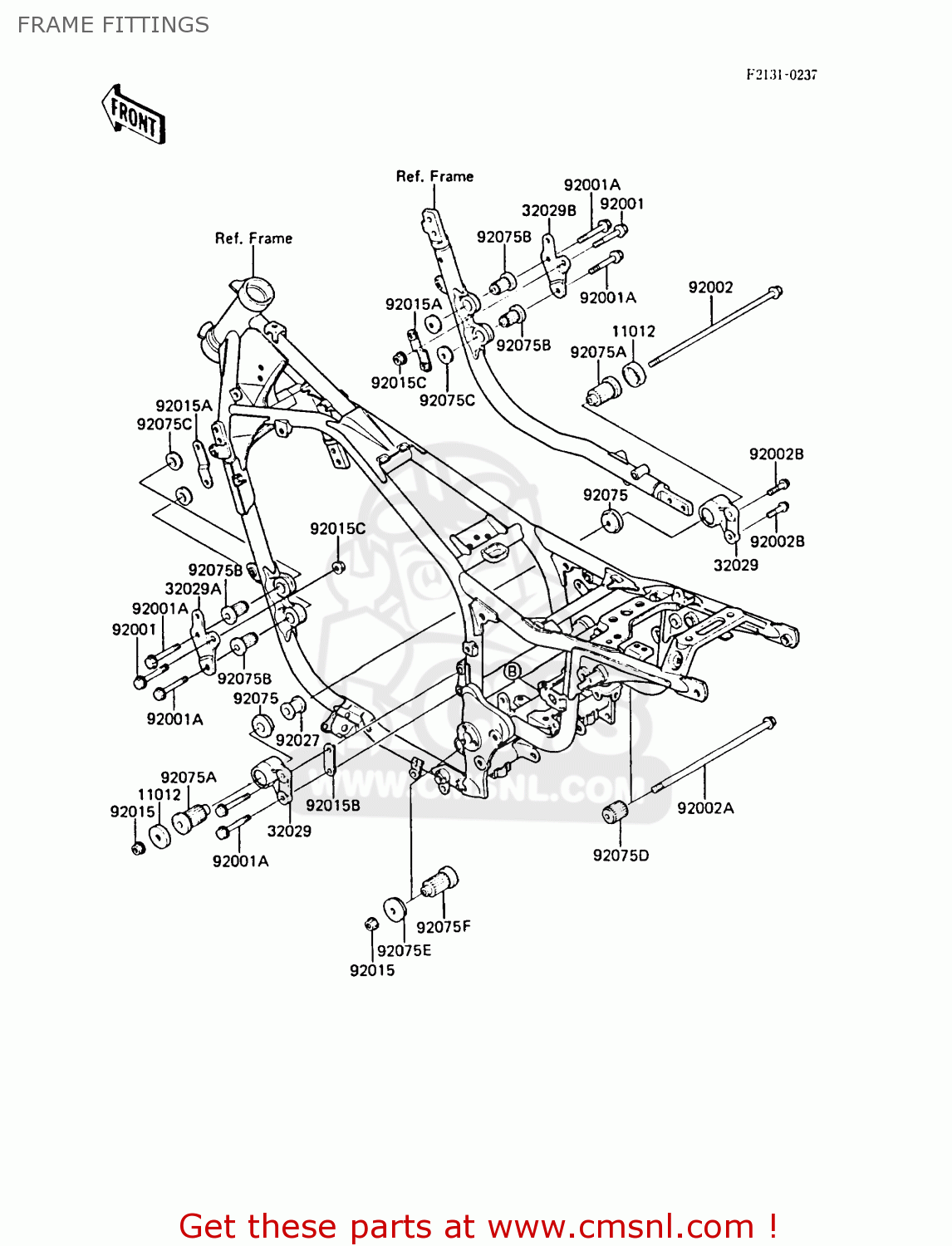

Frame fittings diagram ZL1000A1 1987 EUROPE UK FR FG NR SD ST
FRAME FITTINGS ZL1000A1 1987 EUROPE UK FR FG NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11012
110121228
ref: 11012
CAP,ENGINE BRACKET
€ 4.50
32029
320291406
ref: 32029
BRACKET-ENGINE,RR,UPP
€ 25.50
32029A
320291427
ref: 32029A
BRACKET-ENGINE,FR,LH
€ 10.00
32029B
320291428
ref: 32029B
BRACKET-ENGINE,FR,RH
€ 10.00
92001
920011522
ref: 92001
BOLT,BLACK,10X47
€ 4.00
92001A
920011641
ref: 92001A
BOLT,FLANGED,8X55,BLA
€ 4.50
92002
920021360
ref: 92002
BOLT
€ 10.00
92002A
920021530
ref: 92002A
BOLT,FLANGED,10X280
€ 19.00
92002B
920021532
ref: 92002B
BOLT,FLANGED,8X30
€ 2.50
92015
920151180
ref: 92015
NUT,FLANGED,10MM,BLAC
€ 2.50
92015A
920151517
ref: 92015A
NUT
€ 6.00
92015B
920151518
ref: 92015B
NUT
€ 5.50
92015C
92019021
ref: 92015C
NUT,LOCK,10M/M
€ 2.00
92027
920271990
ref: 92027
COLLAR,L=24.8
€ 9.00
92075
920751274
ref: 92075
DAMPER,ENG MOUNT,SIDE
€ 11.00
92075A
920751377
ref: 92075A
DAMPER,ENGINE BRACKET
€ 19.50
92075B
920751730
ref: 92075B
DAMPER,ENGINE MOUNT
€ 13.50
92075C
920751731
ref: 92075C
DAMPER,ENGINE MOUNT
€ 9.00
92075D
920751733
ref: 92075D
DAMPER,ENGINE MOUNT
€ 10.00
92075E
920751738
ref: 92075E
DAMPER,ENGINE BRACKET
€ 16.00
92075F
920751739
ref: 92075F
DAMPER,ENGINE MOUNT,M
€ 32.50
