CRANKCASE BOLT PATTERN

ZL1000A1 1987 EUROPE UK FR FG NR SD ST

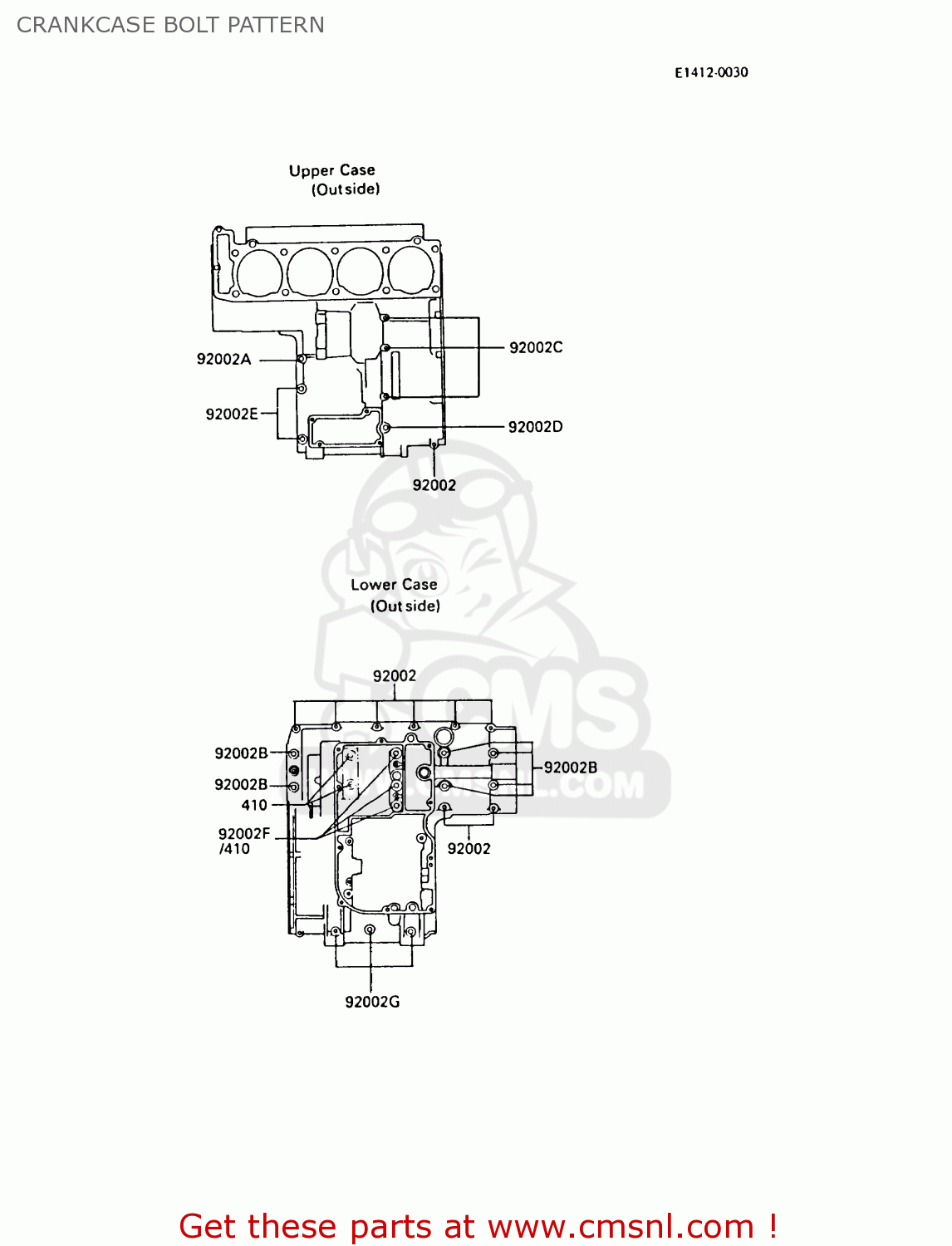

Crankcase bolt pattern diagram ZL1000A1 1987 EUROPE UK FR FG NR SD ST

CRANKCASE BOLT PATTERN ZL1000A1 1987 EUROPE UK FR FG NR SD ST

CRANKCASE BOLT PATTERN ZL1000A1 1987 EUROPE UK FR FG NR SD ST

prices are in EUR

ref

part #

description

quantity

92002

920011899
ref: 92002

BOLT,6X38

€ 2.50

92002A

920021054
ref: 92002A

BOLT,6X55

€ 3.00

92002B

920021057
ref: 92002B

BOLT,8X90

€ 6.50

92002C

920021081
ref: 92002C

BOLT,6X115

€ 4.00

92002D

920021306
ref: 92002D

BOLT

€ 3.50

92002E

920021308
ref: 92002E

BOLT

€ 5.50

92002F

920021402
ref: 92002F

BOLT,8X140

€ 6.50

92002G

920021654
ref: 92002G

BOLT

€ 4.50

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50
