CRANKCASE
ZL1000A1 1987 EUROPE UK FR FG NR SD ST

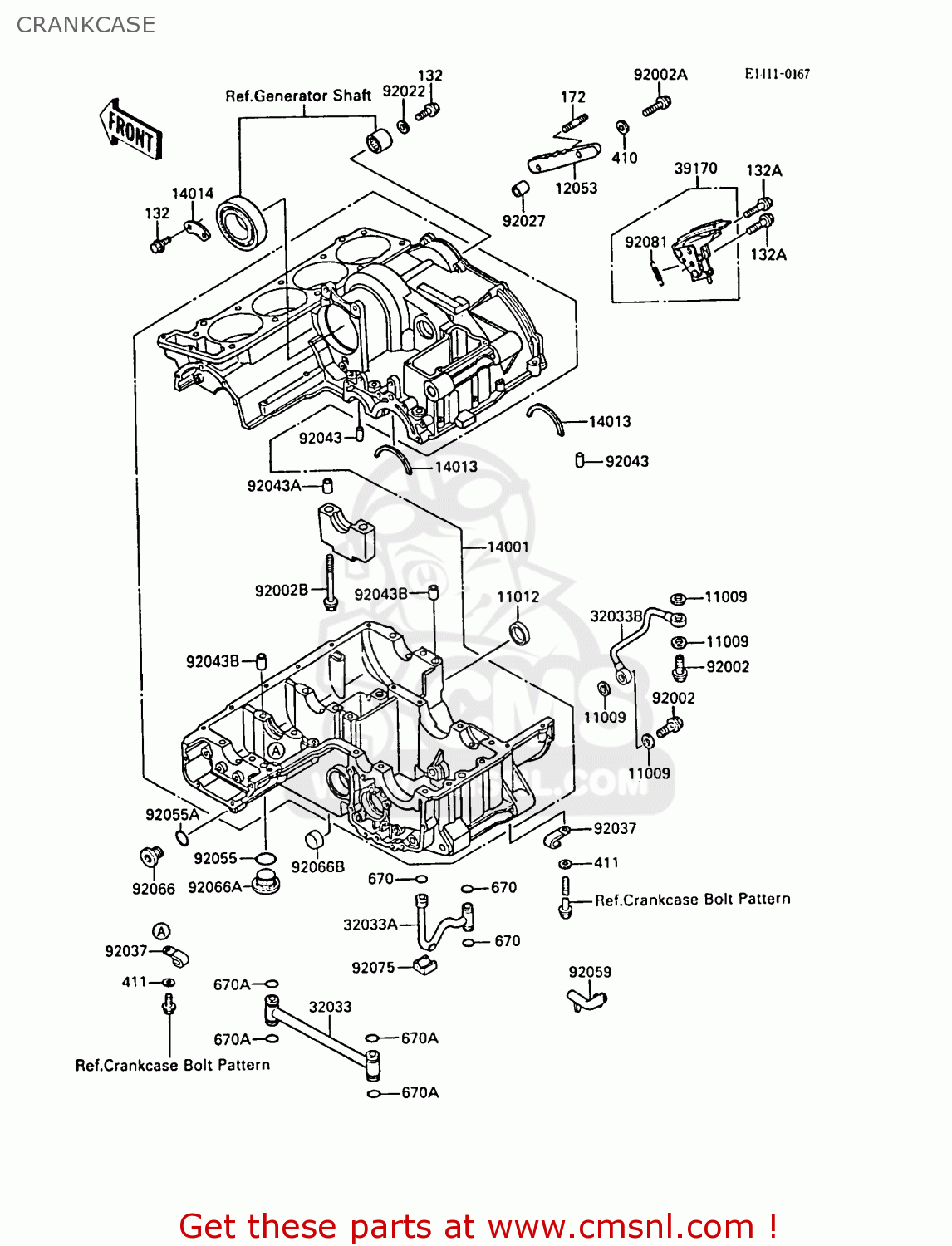

Crankcase diagram ZL1000A1 1987 EUROPE UK FR FG NR SD ST
CRANKCASE ZL1000A1 1987 EUROPE UK FR FG NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11009
110091376
ref: 11009
GASKET,12.5X18X1.5 (NAS)
€ 1.50
11012
110121454
ref: 11012
CAP
€ 6.50
12053
120531138
ref: 12053
GUIDE-CHAIN
€ 16.50
14001
140015214
ref: 14001
SET-CRANKCASE
€ 2,200.00
14013
140131005
ref: 14013
RING-POSITION
€ 3.00
14014
140141056
ref: 14014
PLATE-POSITION
€ 9.50
32033
320331201
ref: 32033
PIPE,MAIN GALLARY
€ 37.50
32033A
320331202
ref: 32033A
PIPE
€ 27.50
32033B
320331961
ref: 32033B
PIPE
€ 37.00
39170
391701053
ref: 39170
TENSIONER-COMP
€ 156.00
92002
920011871
ref: 92002
BOLT,BANJO,12X23
€ 12.50
92002A
920021609
ref: 92002A
BOLT
€ 3.00
92002B
920021649
ref: 92002B
BOLT
€ 4.50
92022
920221517
ref: 92022
WASHER,6X19.5X2
€ 1.50
92027
920271079
ref: 92027
COLLAR,8X15
€ 2.50
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92043
92042016
ref: 92043
PIN,DOWEL,6X16
€ 3.50
92043A
92042031
ref: 92043A
PIN,DOWEL,12X14
€ 4.50
92043B
920431037
ref: 92043B
PIN,DOWEL,10X8.2X14
€ 0.50
92055
920551136
ref: 92055
RING-O,OILPAN CAP
€ 3.00
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92059
920591508
ref: 92059
TUBE
€ 12.50
92066
920661096
ref: 92066
PLUG,MAIN GALLARY,18X
€ 7.50
92066A
920661161
ref: 92066A
PLUG,25X8
€ 7.00
92066B
920661204
ref: 92066B
PLUG,BALANCER
€ 3.00
92075
920751785
ref: 92075
DAMPER
€ 3.00
92081
920811668
ref: 92081
SPRING
€ 9.00
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0630
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
172
172G0616
ref: 172
STUD,6X16
€ 1.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
€ 0.50
670
670D1509
ref: 670
O RING,9MM
€ 3.00
670A
670D2016
ref: 670A
O RING,16MM
€ 1.00
