FRONT HUB
ZL1000A1 1987 EUROPE UK FR FG NR SD ST

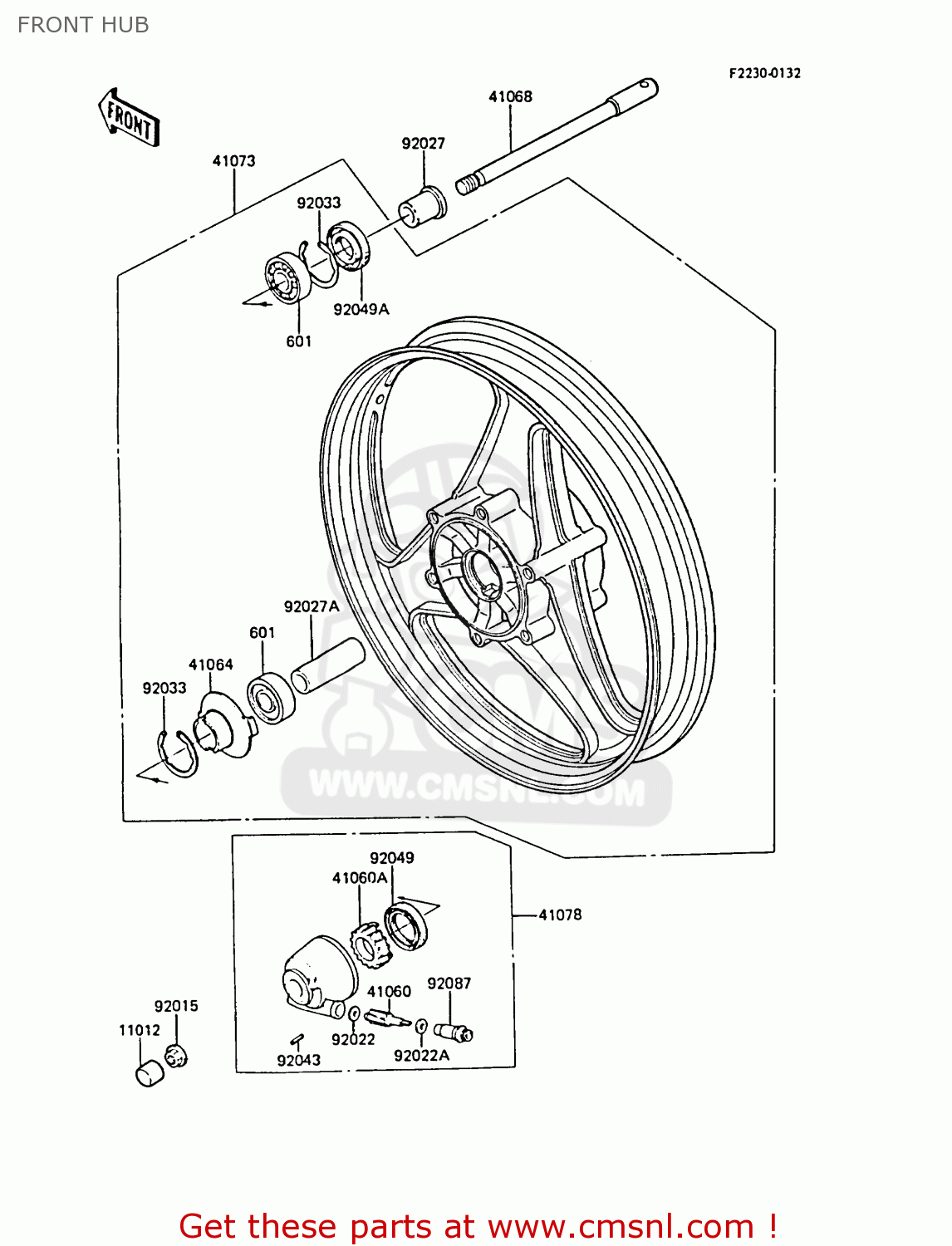

Front hub diagram ZL1000A1 1987 EUROPE UK FR FG NR SD ST
FRONT HUB ZL1000A1 1987 EUROPE UK FR FG NR SD ST
×
prices are in EUR
ref
part #
description
quantity
11012
110121591
ref: 11012
CAP,AXLE NUT
€ 3.00
41060
410601016
ref: 41060
PINION,SPEEDOMETER,9T
€ 21.50
41060A
410601041
ref: 41060A
GEAR-METER SCREW,25T
€ 19.00
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681009
ref: 41068
AXLE,FR,L=204
€ 44.50
41073
410731315T7
ref: 41073
WHEEL-ASSY,FR,SILVER
€ 728.00
41078
410781027
ref: 41078
CASE-ASSY-METER GEAR
€ 97.00
92015
920151032
ref: 92015
NUT,14M/M
€ 6.50
92022
41063001
ref: 92022
WASHER-THRST SPD PINI
€ 3.00
92022A
920221062
ref: 92022A
WASHER,PLAIN
€ 3.00
92027
920271225
ref: 92027
COLLAR,FR AXLE L=30MM
€ 11.50
92027A
920271505
ref: 92027A
COLLAR,15.2X22X55
€ 8.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92043
41082001
ref: 92043
PIN-SPRING
€ 2.50
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491058
ref: 92049A
OIL SEAL,BJN22425
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
€ 14.50
601
601B6302UG
ref: 601
BEARING BALL
€ 29.00
