Genuine ZL Kawasaki Parts delivered quickly!


CLUTCH MASTER CYLINDER

ZL1000A1 1987 EUROPE UK FR FG NR SD ST

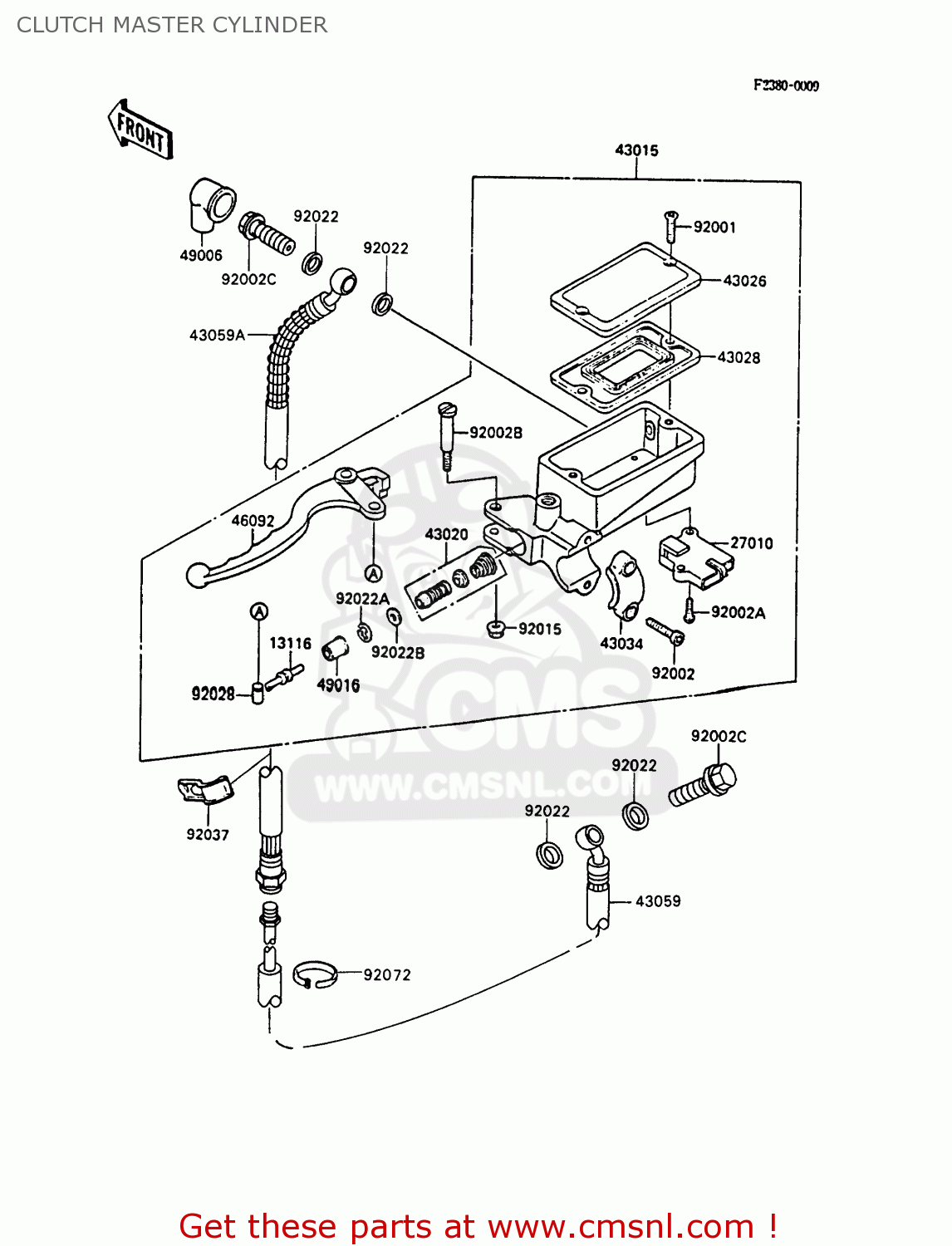

Clutch master cylinder diagram ZL1000A1 1987 EUROPE UK FR FG NR SD ST

CLUTCH MASTER CYLINDER ZL1000A1 1987 EUROPE UK FR FG NR SD ST
CLUTCH MASTER CYLINDER ZL1000A1 1987 EUROPE UK FR FG NR SD ST
CLUTCH MASTER CYLINDER ZL1000A1 1987 EUROPE UK FR FG NR SD ST
prices are in EUR
ref
part #
description
quantity
13116
131161110
ref: 13116
ROD-PUSH,MASTER CYLIN
131161110
€ 24.00
27010
270101171
ref: 27010
SWITCH,CLUTCH
270101171
€ 25.00
43015
430151306
ref: 43015
CYLINDER-ASSY-MASTER,
€ 249.00
43020
430201055
ref: 43020
PISTON-COMP-BRAKE,CLU
430201055
€ 47.50
43026
430261052
ref: 43026
CAP-BRAKE,FR
430261052
€ 41.00
43028
430281058
ref: 43028
DIAPHRAGM,MASTER CYLI
430281058
€ 15.50
43034
430341054
ref: 43034
HOLDER-BRAKE,MASTER C
430341054
€ 26.00
43059
430591309
ref: 43059
HOSE-BRAKE,CLUTCH
€ 89.50
43059A
430591379
ref: 43059A
HOSE-BRAKE,CLUTCH
€ 72.50
46092
460921129
ref: 46092
LEVER-GRIP,CLUTCH
460921129
€ 20.00
49006
490061040
ref: 49006
BOOT,DUST
490061040
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
490161044
€ 7.00
92001
920011727
ref: 92001
BOLT,MASTER CYLINDER
920011727
€ 2.50
92002
920021324
ref: 92002
BOLT,SOCKET,6X20
920021324
€ 5.00
92002A
920021325
ref: 92002A
BOLT
920021325
€ 4.00
92002B
920021561
ref: 92002B
BOLT,LEVER SET
920021561
€ 8.00
92002C
920021907
ref: 92002C
BOLT
920021907
€ 3.50
92015
920151528
ref: 92015
NUT,FLANGED,6MM
920151528
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
43067001
€ 1.50
92022A
920221605
ref: 92022A
WASHER,PISTON
920221605
€ 3.00
92022B
920221606
ref: 92022B
WASHER,PISTON
920221606
€ 3.00
92028
920281310
ref: 92028
BUSHING,MASTER CYLIND
920281310
€ 10.00
92037
920371687
ref: 92037
EUFRNRSD
CLAMP,HOSE
€ 3.50
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
