SWINGARM

VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

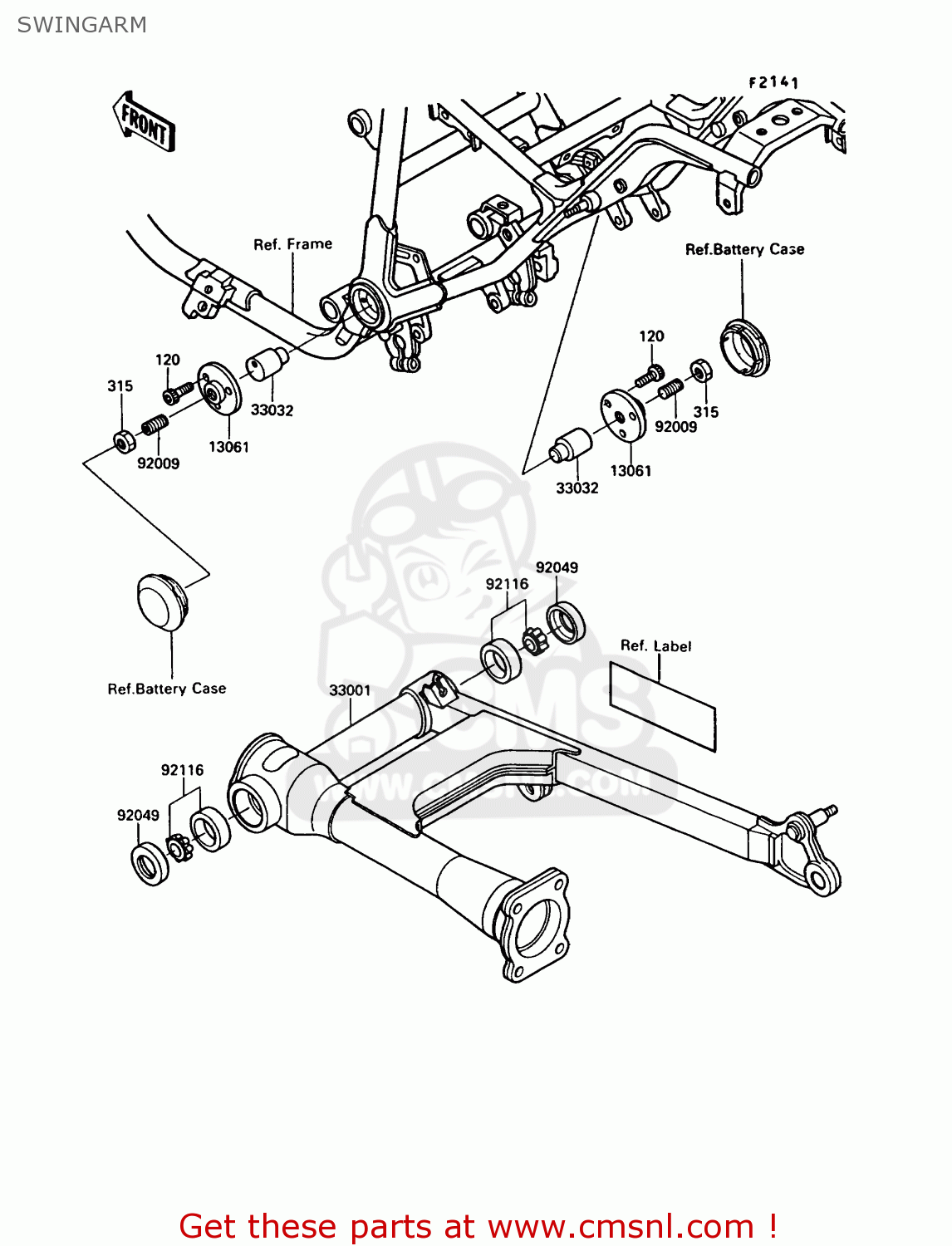

Swingarm diagram VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

SWINGARM VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

SWINGARM VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

prices are in EUR

ref

part #

description

quantity

120

120P0616
ref: 120

BOLT,SOCKET,6X16

€ 1.50

315

315B1200
ref: 315

NUT,12MM

€ 0.50

13061

130611149
ref: 13061

BOSS

€ 29.00

33001

330011234
ref: 33001

ARM-COMP-SWING

€ 492.50

33032

330321043
ref: 33032

SHAFT-SWING ARM

€ 22.00

92009

920091374
ref: 92009

SCREW,SOCKET,12X22

€ 6.50

92049

920491030
ref: 92049

OIL SEAL,26406

€ 6.50

92116

921161001
ref: 92116

BEARING,R,4T30203E1

€ 39.00
