GEAR CHANGE MECHANISM

VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

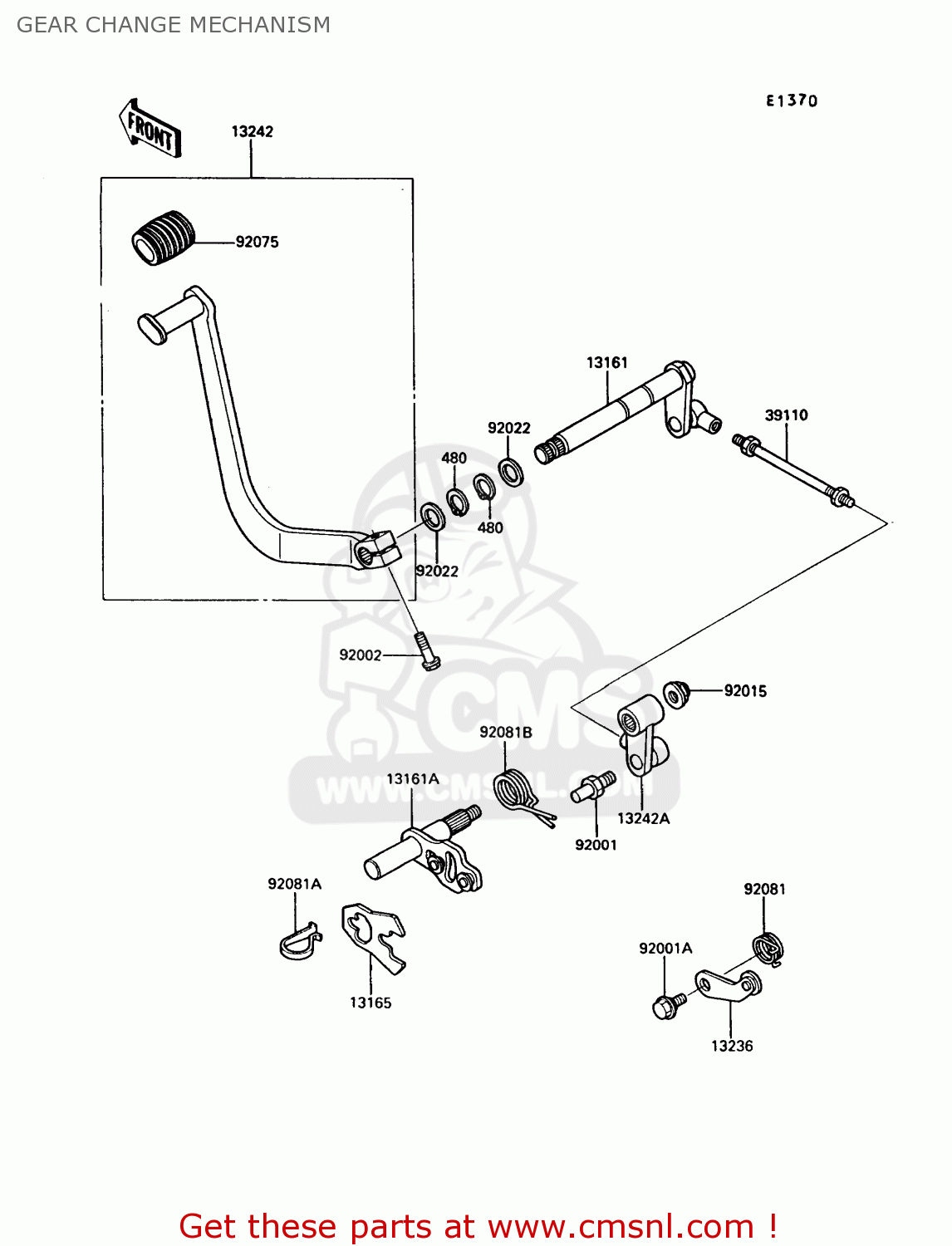

Gear change mechanism diagram VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

prices are in EUR

ref

part #

description

quantity

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611119
ref: 13161

LEVER-COMP-CHANGE SHA

€ 66.00

13161A

131611120
ref: 13161A

LEVER-COMP-CHANGE SHA

€ 59.50

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361126
ref: 13236

LEVER-COMP,POSITION

€ 9.00

13242

132421185
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 40.50

13242A

132421188
ref: 13242A

LEVER-ASSY-CHANGE

€ 23.00

39110

391101073
ref: 39110

ROD-ASSY-TIE

€ 7.00

92001

920011401
ref: 92001

BOLT,RETURN SPRING

€ 3.00

92001A

920011715
ref: 92001A

BOLT

€ 7.00

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92015

920151397
ref: 92015

NUT,FLANGED,8MM

€ 2.50

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92075

920751585
ref: 92075

DAMPER

€ 6.50

92081

920811777
ref: 92081

SPRING,RETURN

€ 6.00

92081A

920811829
ref: 92081A

SPRING,CHANGE LEVER

€ 6.00

92081B

920811869
ref: 92081B

SPRING,CHANGE PEDAL R

€ 7.00
