RADIATOR

VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

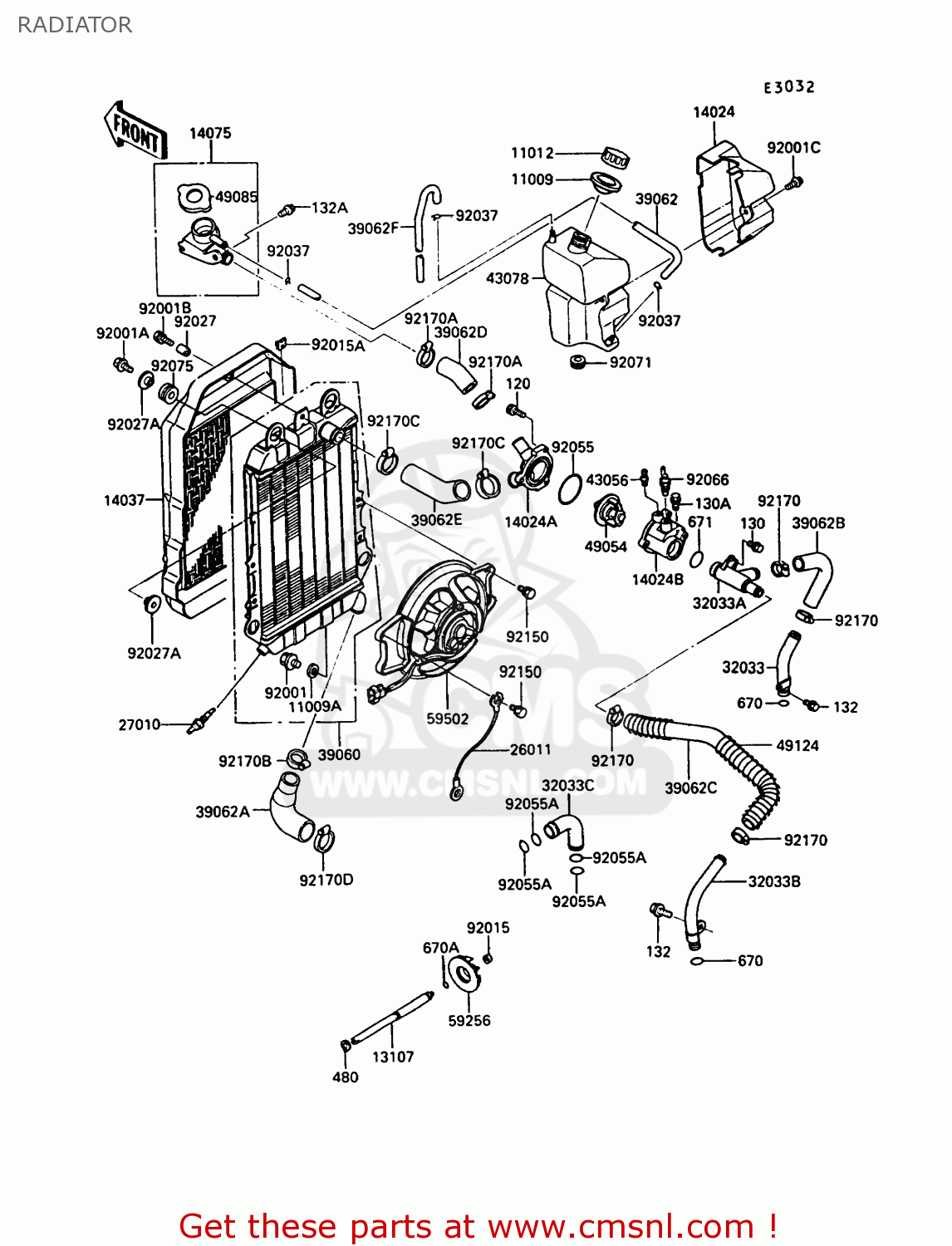

Radiator diagram VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

RADIATOR VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST
RADIATOR VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST
RADIATOR VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
110091152
€ 4.50
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
13107
131071155
ref: 13107
SHAFT,IMPELLER
131071155
€ 35.00
14024
140251962
ref: 14024
COVER,RESORVOIR
140251962
€ 38.50
14024A
140251972
ref: 14024A
COVER,THERMOSTAT,UPP
140251972
€ 31.50
14024B
140251973
ref: 14024B
COVER,THERMOSTAT,LWR
140251973
€ 33.50
14037
140371066
ref: 14037
SCREEN,RADIATOR
140371066
€ 55.50
14075
140751057
ref: 14075
CAP-ASSY,RADIATOR
140751057
€ 142.00
26011
260111326
ref: 26011
WIRE-LEAD
€ 13.50
27010
270101167
ref: 27010
SWITCH,FAN
270101167
€ 108.50
32033
320331484
ref: 32033
PIPE
320331484
€ 31.50
32033A
320331486
ref: 32033A
PIPE
320331486
€ 47.50
32033B
320331738
ref: 32033B
PIPE
320331738
€ 38.00
32033C
320331966
ref: 32033C
PIPE
320331966
€ 20.00
39060
390601065
ref: 39060
RADIATOR
€ 725.50
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621100
ref: 39062A
HOSE-COOLING
390621100
€ 21.50
39062B
390621101
ref: 39062B
HOSE-COOLING
390621101
€ 20.00
39062C
390621102
ref: 39062C
HOSE-COOLING
390621102
€ 28.00
39062D
390621103
ref: 39062D
HOSE-COOLING
390621103
€ 14.00
39062E
390621104
ref: 39062E
HOSE-COOLING
390621104
€ 21.50
39062F
390621122
ref: 39062F
HOSE-COOLING
€ 18.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781057
ref: 43078
RESERVOIR
430781057
€ 36.00
49054
490541051
ref: 49054
THERMOSTAT
490541051
€ 44.50
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
490851003
€ 23.50
49124
491241051
ref: 49124
SPRING-TUBE GUARD
€ 12.00
59256
592561058
ref: 59256
IMPELLER
592561058
€ 32.00
59502
595021059
ref: 59502
FAN-ASSY
€ 621.50
92001
920011277
ref: 92001
PLUG,RADIATOR DRAIN
920011277
€ 13.50
92001A
920011352
ref: 92001A
BOLT,FLANGED,6X22
920011352
€ 2.50
92001B
920011852
ref: 92001B
BOLT,6X25
920011852
€ 2.50
92001C
920011860
ref: 92001C
BOLT,W/P,6X16
920011860
€ 2.50
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015A
920151487
ref: 92015A
NUT
920151487
€ 3.00
92027
920271210
ref: 92027
COLLAR,6.8X10X11.5L
920271210
€ 7.00
92027A
920271906
ref: 92027A
COLLAR
920271906
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
120
120P0620
ref: 120
BOLT-HEX HEAD,6X20
120P0620
€ 0.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
130C0610
€ 1.50
130A
130C0616
ref: 130A
BOLT-FLANGED,6X16
€ 1.50
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0614
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670D1509
ref: 670A
O RING,9MM
670D1509
€ 3.00
671
671B2525
ref: 671
O RING,25MM
671B2525
€ 3.00
92055A
920551308
ref: 92055A
RING-O,19MM
920551308
€ 3.50
92066
920661183
ref: 92066
PLUG,SENSOR WATER
920661183
€ 38.00
92071
920711115
ref: 92071
GROMMET,RESERVOIR TAN
920711115
€ 3.50
92075
920751665
ref: 92075
DAMPER
920751665
€ 5.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
921701032
€ 16.50
92170A
921701033
ref: 92170A
CLAMP,COOLING HOSE
921701033
€ 10.50
92170B
921701034
ref: 92170B
CLAMP,COOLING HOSE
921701034
€ 14.00
92170C
921701035
ref: 92170C
CLAMP,COOLING HOSE
921701035
€ 12.00
92170D
921701036
ref: 92170D
CLAMP,COOLING HOSE
921701036
€ 16.50
