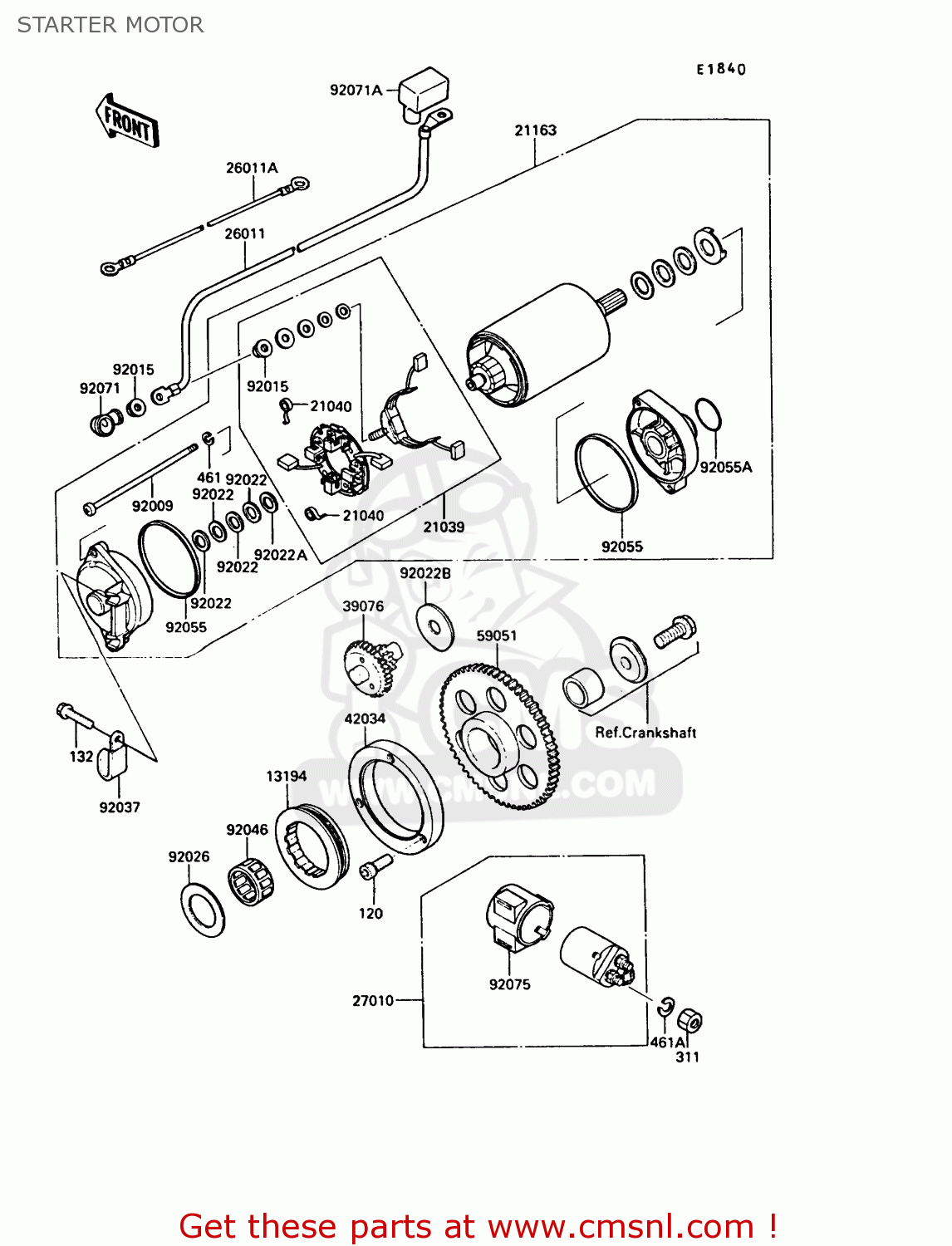

STARTER MOTOR

ref

part #

description

quantity

120

120Q0820
ref: 120

BOLT,ALLEN,8X20

€ 2.50

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

311

311B0600
ref: 311

NUT,6MM

€ 0.50

461

461F0500
ref: 461

WASHER-SPRING,5MM

€ 0.50

461A

461F0600
ref: 461A

WASHER-SPRING,6MM

€ 0.50

13194

131941062
ref: 13194

CLUTCH-ONEWAY

€ 138.50

21039

210391053
ref: 21039

BRUSH,CARBON

€ 89.50

21040

210401003
ref: 21040

SPRING-BRUSH

€ 6.00

21163

211631068
ref: 21163

STARTER-ELECTRIC

€ 703.50

26011

260111276
ref: 26011

WIRE-LEAD,STARTER MOT

€ 57.50

26011A

260111320
ref: 26011A

WIRE-LEAD,BATTERY GRO

€ 9.50

27010

270101209
ref: 27010

SWITCH,MAGNETIC

€ 110.50

39076

390761051
ref: 39076

LIMITER,IDLE GEAR

€ 107.00

42034

420341081
ref: 42034

COUPLING

€ 103.00

59051

590511130
ref: 59051

GEAR-SPUR,STARTER,63T

€ 138.00

92009

920091369
ref: 92009

SCREW

€ 6.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

21025011
ref: 92022

WASHER, THRUST, 0.2T

€ 4.00

92022A

920221132
ref: 92022A

WASHER,9.1X18X0.8

€ 4.00

92022B

920221664
ref: 92022B

WASHER,12.3X38X2.0

€ 4.50

92026

92026087
ref: 92026

SPACER,CONNECTING ROD

€ 6.50

92037

920371539
ref: 92037

CLAMP,L=45

€ 3.00

92046

920461137
ref: 92046

BEARING-NEEDLE

€ 29.00

92055

920551086
ref: 92055

O RING,64MM

€ 6.50

92055A

920551276
ref: 92055A

RING-O

€ 6.50

92071

21017017
ref: 92071

GROMMET-CORD

€ 6.50

92071A

920711130
ref: 92071A

GROMMET,TERMINAL

€ 7.00

92075

21064002
ref: 92075

DAMPER,MAGNETIC SWITC

€ 13.50

all assemblies
