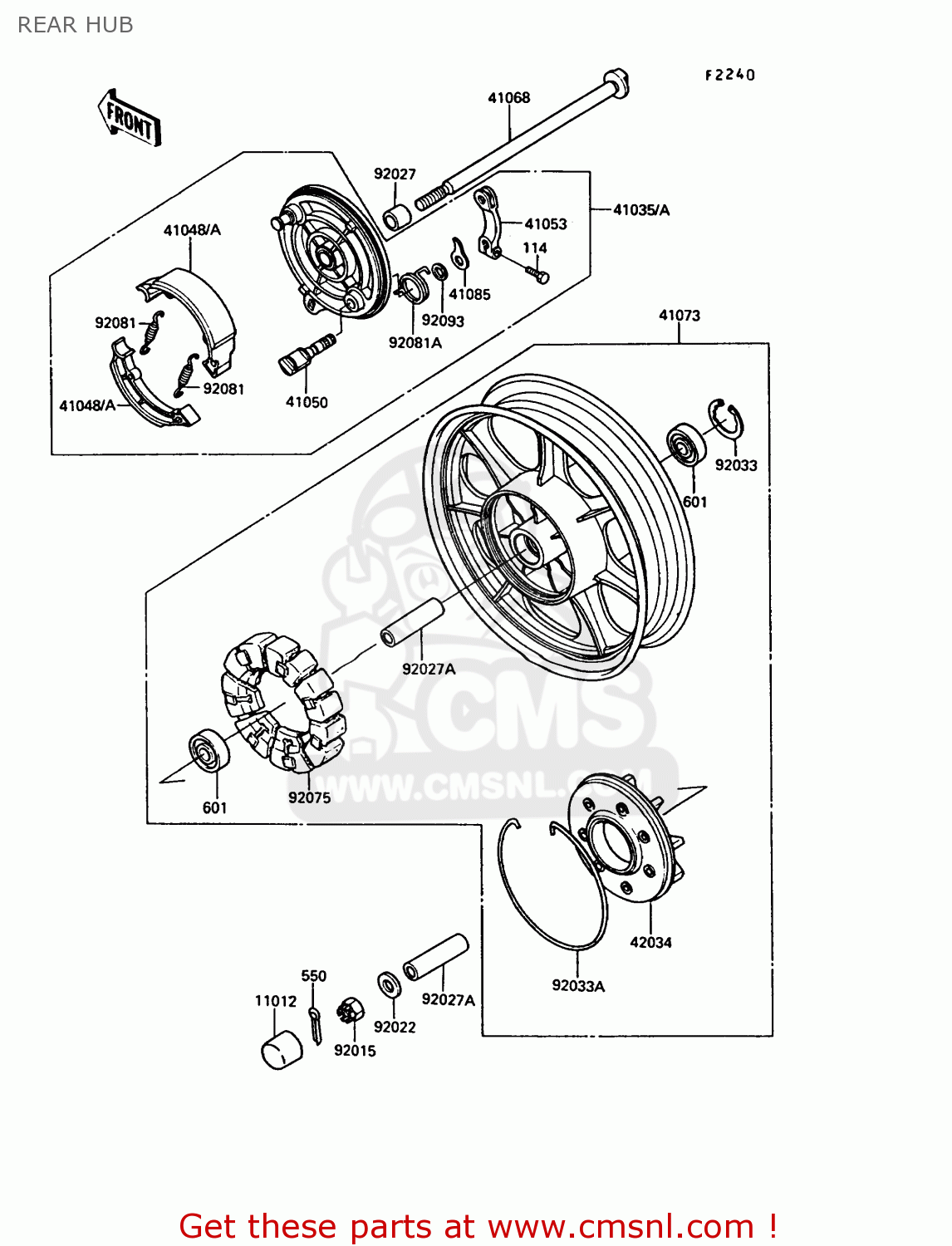

REAR HUB

ref

part #

description

quantity

114

114G0828
ref: 114

BOLT-SMALL,8X28

€ 2.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6303ZZ
ref: 601

BEARING-BALL,#6303ZZC

€ 32.50

11012

110121590
ref: 11012
FG

CAP,AXLE NUT

€ 3.50

41035

410351185
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 301.50

41048

410481059
ref: 41048

SHOE-BRAKE (MCA)

€ 26.00

41050

410501059
ref: 41050

CAM-BRAKE

€ 41.00

41053

410531063
ref: 41053

LEVER-BRAKE CAM

€ 43.00

41068

410681191
ref: 41068

AXLE,RR

€ 55.50

41073

41073130721
ref: 41073

WHEEL-ASSY,RR,F.BLACK

€ 512.00

41085

410851054
ref: 41085

INDICATOR

€ 9.00

42034

420341029
ref: 42034

COUPLING,RR HUB

€ 154.50

92015

92015055
ref: 92015

NUT,16MM

€ 8.00

92022

42046009
ref: 92022

WASHER-SLEEVE

€ 5.00

92027

920271486
ref: 92027

COLLAR

€ 12.00

92027A

920271867
ref: 92027A

COLLAR,17.2X25X74

€ 14.50

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92033A

920331075
ref: 92033A

RING-SNAP,194MM

€ 10.50

92075

920751372
ref: 92075

DAMPER,RR HUB SHOCK

€ 66.00

92081

41049007
ref: 92081

SPRING-BRAK SHOE

€ 6.00

92081A

920811816
ref: 92081A

SPRING,BRAKE CAM LEVE

€ 6.50

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50
