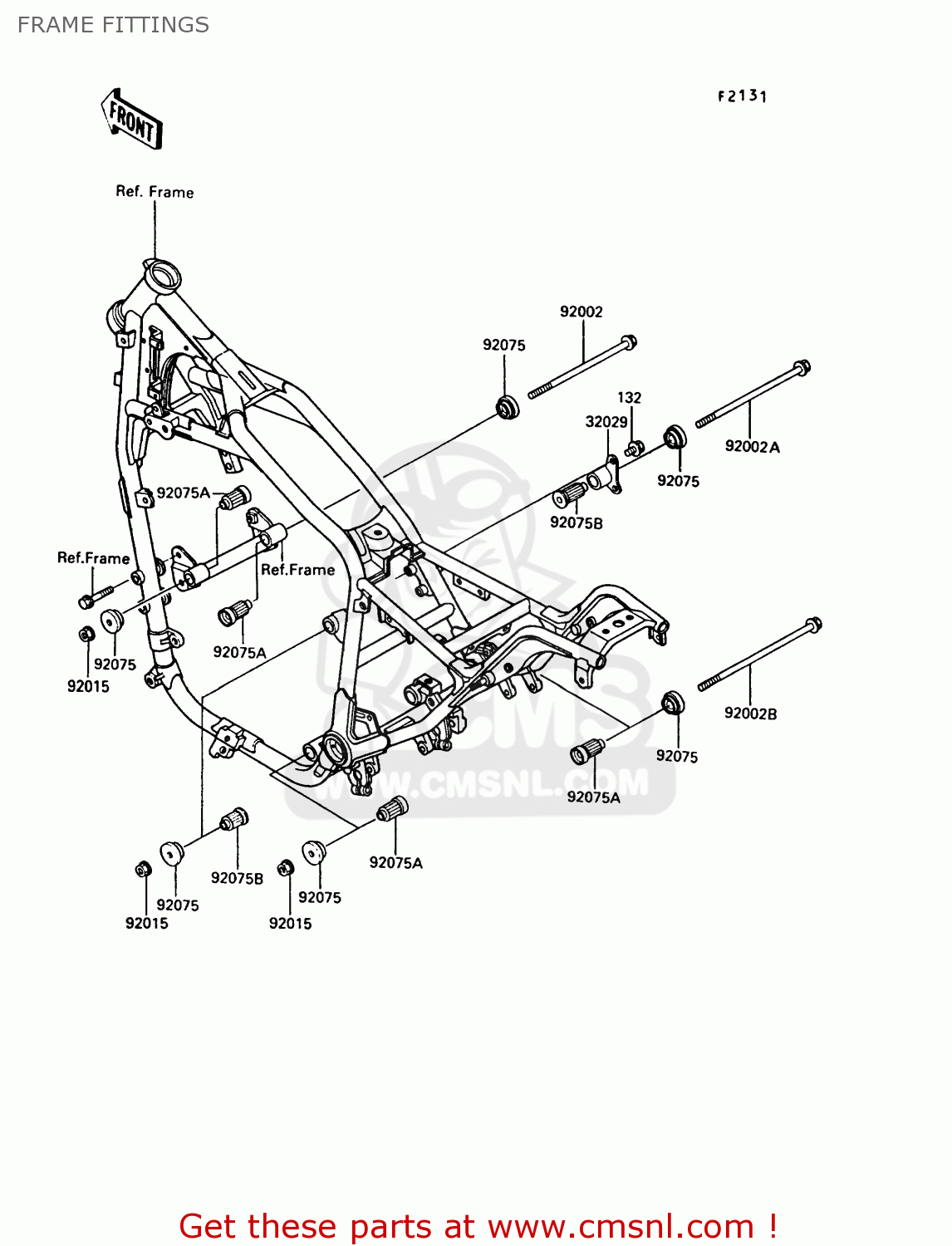

FRAME FITTINGS

VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

Frame fittings diagram VN750A2 VN750 TWIN 1986 EUROPE FR UK FG IT NR SD ST

prices are in EUR

ref

part #

description

quantity

132

132J0820
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

32029

320291392
ref: 32029

BRACKET-ENGINE

€ 29.50

92002

920021206
ref: 92002

BOLT,10X285

€ 16.50

92002A

920021454
ref: 92002A

BOLT,FLANGED,10X265

€ 16.00

92002B

920021540
ref: 92002B

BOLT,FLANGED,10X330

€ 16.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92075

920751738
ref: 92075

DAMPER,ENGINE BRACKET

€ 16.00

92075A

920751739
ref: 92075A

DAMPER,ENGINE MOUNT,M

€ 32.50

92075B

920751740
ref: 92075B

DAMPER,ENGINE MOUNT

€ 28.50
