SADDLEBAGS

VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

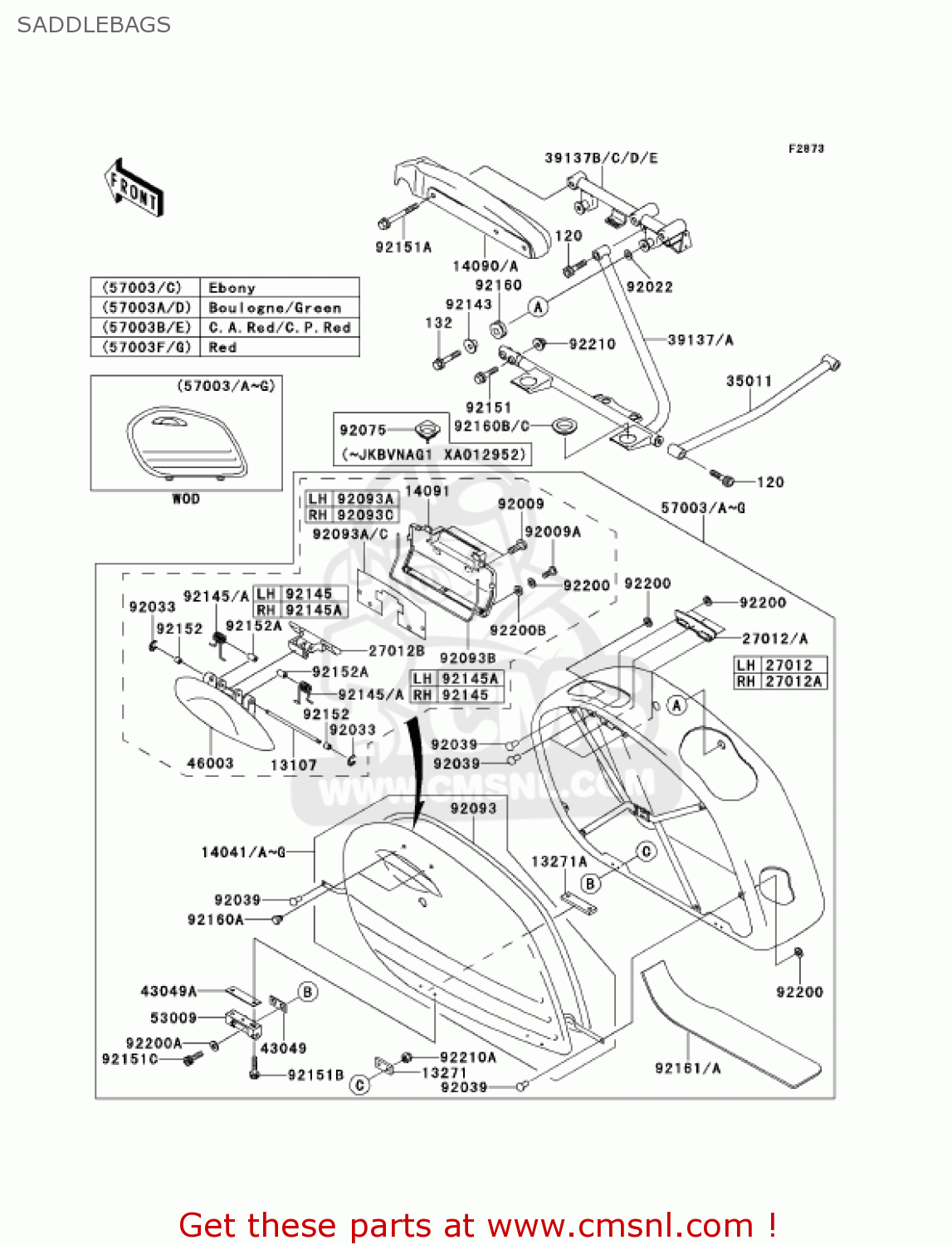

Saddlebags diagram VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

SADDLEBAGS VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA
SADDLEBAGS VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA
SADDLEBAGS VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
13107
131071403
ref: 13107
SHAFT
131071403
€ 2.50
13271
132711146
ref: 13271
PLATE
€ 2.50
13271A
132711147
ref: 13271A
PLATE
€ 5.50
14041B
140411130P5
ref: 14041B
COVER-COMP,SIDE BAG,L
€ 330.00
14041F
140411131P5
ref: 14041F
COVER-COMP,SIDE BAG,R
€ 299.50
14090
140901894
ref: 14090
COVER,RR FENDER,LH
€ 56.50
14090A
140901895
ref: 14090A
COVER,RR FENDER,RH
€ 68.00
14091
140911069
ref: 14091
COVER
€ 14.00
27012
270121571
ref: 27012
HOOK,LOCK PLATE,LH
270121571
€ 10.50
27012A
270121572
ref: 27012A
HOOK,LOCK PLATE,RH
270121572
€ 10.50
27012B
270121575
ref: 27012B
HOOK,HANDLE
270121575
€ 13.50
35011
350111896
ref: 35011
STAY,SIDE BAG
€ 44.50
39137
391371067
ref: 39137
STAY-COMP,SIDE BAG,LH
391371067
€ 120.50
39137A
391371068
ref: 39137A
STAY-COMP,SIDE BAG,RH
€ 123.00
39137D
391371075
ref: 39137D
STAY-COMP,SIDE BAG,LH
€ 127.00
39137E
391371076
ref: 39137E
STAY-COMP,SIDE BAG,RH
€ 148.50
43049
430491084
ref: 43049
PACKING (NAS)
€ 1.50
43049A
430491086
ref: 43049A
PACKING (NAS)
430491086
€ 1.50
46003
460031505
ref: 46003
HANDLE,SIDE BAG
460031505
€ 137.50
53009
530091104
ref: 53009
HINGE
€ 17.50
57003F
570031084P5
ref: 57003F
BAG-ASSY,LH,L.V.RED
€ 846.00
57003G
570031085P5
ref: 57003G
BAG-ASSY,RH,L.V.RED
€ 846.00
92009
920091870
ref: 92009
SCREW
€ 1.00
92009A
920091871
ref: 92009A
SCREW
€ 1.00
92022
920221317
ref: 92022
WASHER,8.5X20X1.6,BLA
920221317
€ 2.00
92033
920331300
ref: 92033
RING-SNAP
920331300
€ 1.00
120
120S0835
ref: 120
BOLT-SOCKET,8X35,BLAC
120S0835
€ 3.00
132
132J0845
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
92039
920391236
ref: 92039
RIVET
€ 1.50
92093
920931486
ref: 92093
SEAL
€ 8.50
92093A
920931487
ref: 92093A
SEAL
€ 3.50
92093B
920931488
ref: 92093B
SEAL
€ 2.00
92093C
920931489
ref: 92093C
SEAL
€ 3.50
92143
921431450
ref: 92143
COLLAR
921431450
€ 6.50
92145
921451175
ref: 92145
SPRING
€ 4.50
92145A
921451200
ref: 92145A
SPRING
€ 4.50
92151
921511402
ref: 92151
BOLT,FLANGED,8X35
€ 1.50
92151A
921511403
ref: 92151A
BOLT,FLANGED,8X75
921511403
€ 3.00
92151B
921511436
ref: 92151B
BOLT
€ 1.50
92151C
921511437
ref: 92151C
BOLT
€ 1.50
92152
921521121
ref: 92152
COLLAR
€ 2.50
92152A
921521122
ref: 92152A
COLLAR
€ 2.00
92160
921601012
ref: 92160
DAMPER
921601012
€ 3.50
92160A
921601976
ref: 92160A
DAMPER
921601976
€ 1.50
92160B
921601981
ref: 92160B
DAMPER
921601981
€ 7.00
92161
921611171
ref: 92161
DAMPER,SIDE BAG,LH
€ 30.00
92161A
921611176
ref: 92161A
DAMPER,SIDE BAG,RH
€ 31.00
92200
922001442
ref: 92200
WASHER
922001442
€ 1.00
92200A
922001443
ref: 92200A
WASHER
€ 1.00
92200B
922001444
ref: 92200B
WASHER,3MM
€ 1.00
92210
922101161
ref: 92210
NUT,CAP,8MM
922101161
€ 1.50
92210A
922101168
ref: 92210A
NUT
€ 1.50
