HANDLEBAR

VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

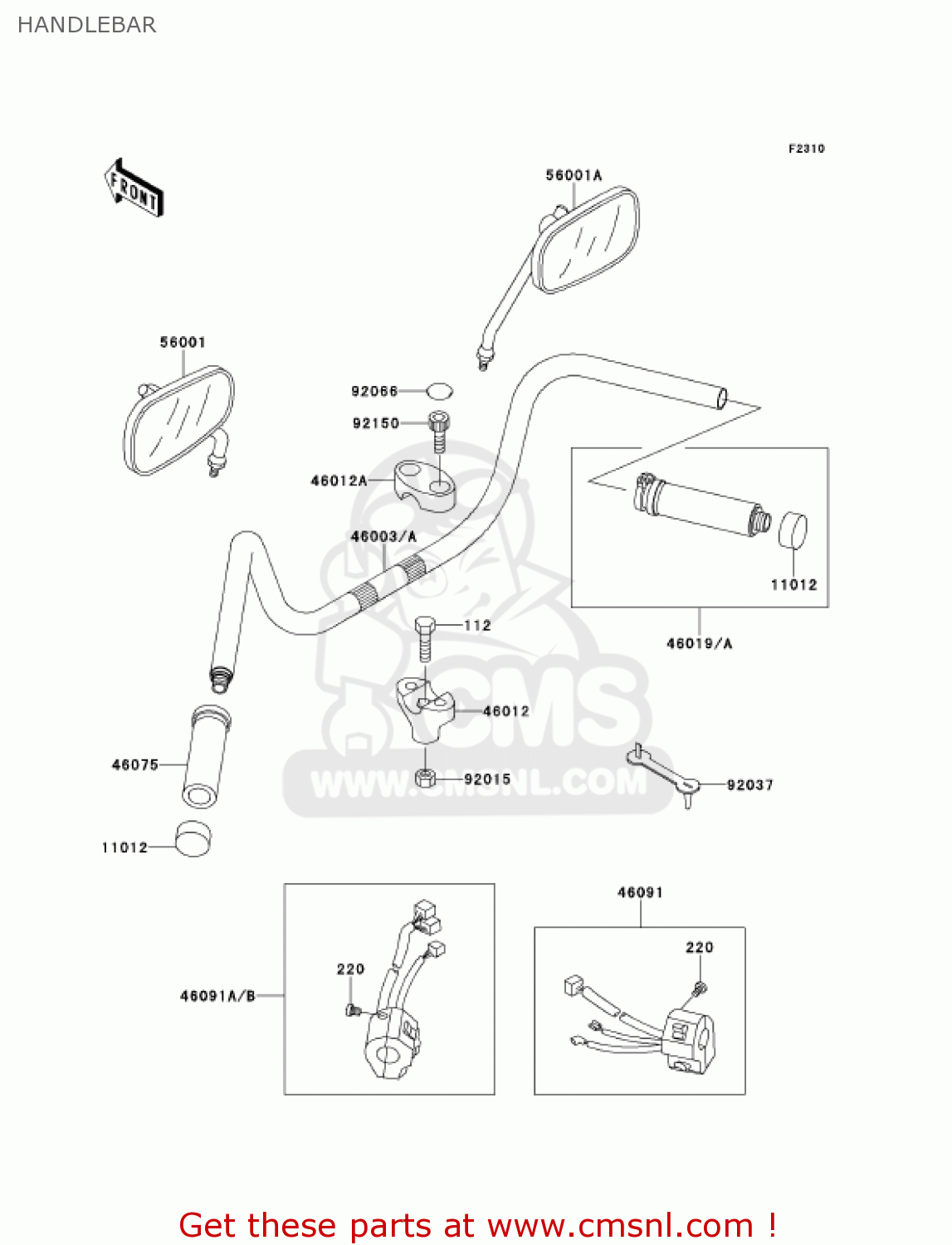

Handlebar diagram VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

112

112H1065
ref: 112

BOLT-UPSET,10X65

€ 5.00

220

220E0525
ref: 220

SCREW-PAN-CROSS,5X25

€ 1.50

11012

110121975
ref: 11012

CAP,GRIP END

€ 14.00

46003A

460031544
ref: 46003A

HANDLE

€ 129.50

46012

460121272
ref: 46012

HOLDER-HANDLE,LWR

€ 84.50

46012A

460121273
ref: 46012A

HOLDER-HANDLE,UPP

€ 50.00

46019A

460191109
ref: 46019A

GRIP-ASSY,THROTTLE

€ 51.50

46075

460751074
ref: 46075

GRIP,LH

€ 20.50

46091

460911717
ref: 46091

CONTROLLER HOUSING ASSEMBLY

€ 131.00

46091B

460911788
ref: 46091B

HOUSING-ASSY-CONTROL,

€ 289.00

56001

560011503
ref: 56001

MIRROR-ASSY,LH

€ 62.00

56001A

560011504
ref: 56001A

MIRROR-ASSY,RH

€ 59.50

92015

920151717
ref: 92015

NUT,LOCK,FLANGED,10MM

€ 6.50

92037

920371903
ref: 92037

CLAMP

€ 5.00

92066

920661285
ref: 92066

PLUG

€ 5.00

92150

921501942
ref: 92150

BOLT,SOCKET,10X23

€ 4.50
