RADIATOR

VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

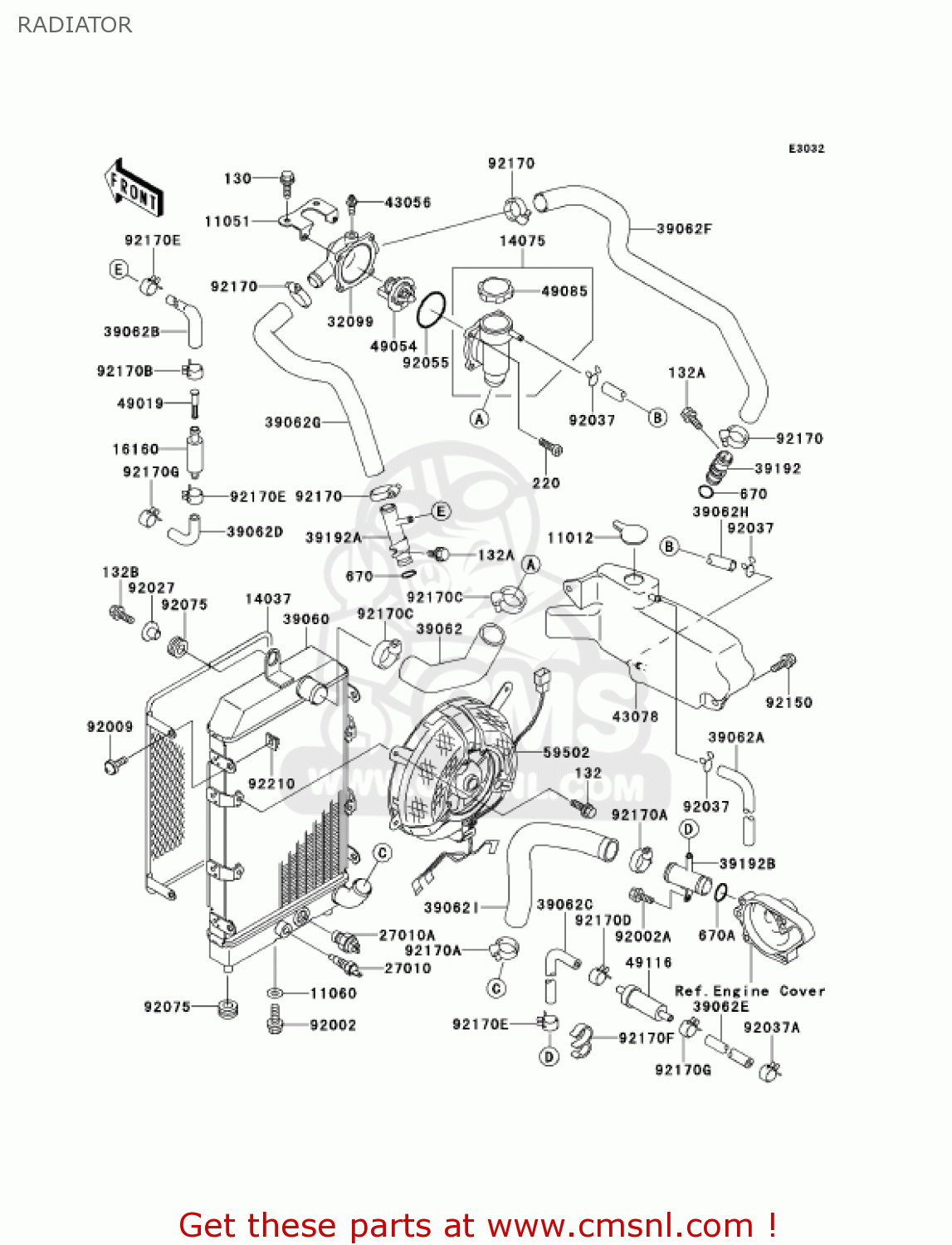

Radiator diagram VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

RADIATOR VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA
RADIATOR VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA
RADIATOR VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
11012
110121585
ref: 11012
CAP
110121585
€ 4.50
11051
110511535
ref: 11051
BRACKET,THERMOSTAT CA
€ 6.00
11060
110601767
ref: 11060
GASKET,DRAIN PLUG (NAS)
110601767
€ 2.00
14037
140371251
ref: 14037
SCREEN
€ 52.00
14075
140751068
ref: 14075
CAP-ASSY
140751068
€ 134.00
16160
161601151
ref: 16160
BODY,FILTER
161601151
€ 6.50
27010
270101305
ref: 27010
SWITCH
270101305
€ 60.00
27010A
270101364
ref: 27010A
SWITCH,FAN
270101364
€ 117.00
32099
320991093
ref: 32099
CASE,THERMOSTAT
€ 38.50
39060
390601165
ref: 39060
RADIATOR
390601165
€ 607.50
39062
390621696
ref: 39062
HOSE-COOLING,THERMO-R
390621696
€ 22.00
39062A
390621700
ref: 39062A
HOSE-COOLING,OVERFLOW
€ 15.50
39062B
390621753
ref: 39062B
HOSE-COOLING
390621753
€ 10.00
39062C
390621756
ref: 39062C
HOSE-COOLING,CAB-CHAC
390621756
€ 7.50
39062D
390621760
ref: 39062D
HOSE-COOLING
€ 4.00
39062E
390621764
ref: 39062E
HOSE-COOLING
€ 4.00
39062F
390621777
ref: 39062F
HOSE-COOLING,HEAD RR-
390621777
€ 31.00
39062G
390621778
ref: 39062G
HOSE-COOLING,HEAD FR-
390621778
€ 18.00
39062H
390621783
ref: 39062H
HOSE-COOLING,RESERVOI
€ 12.00
39062I
390621850
ref: 39062I
HOSE-COOLING,RADIATOR
390621850
€ 22.00
39192
391921094
ref: 39192
PIPE-WATER
391921094
€ 15.50
39192A
391921114
ref: 39192A
PIPE-WATER
391921114
€ 20.00
39192B
391921136
ref: 39192B
PIPE-WATER
391921136
€ 19.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43078
430781153
ref: 43078
RESERVOIR
430781153
€ 24.00
49019
490191068
ref: 49019
FILTER-FUEL
490191068
€ 4.00
49054
490541067
ref: 49054
THERMOSTAT
490541067
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
49116
491161167
ref: 49116
VALVE-ASSY
491161167
€ 88.00
59502
595021127
ref: 59502
FAN-ASSY
€ 596.00
92002
920021311
ref: 92002
BOLT,FLANGED,10X10
920021311
€ 3.50
92002A
920021569
ref: 92002A
BOLT,6X12
920021569
€ 2.50
92009
920091402
ref: 92009
SCREW,6X10
920091402
€ 1.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371505
ref: 92037A
CLAMP,TUBE
920371505
€ 3.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92150
921501392
ref: 92150
BOLT
921501392
€ 3.00
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
921701032
€ 16.50
130
130J0618
ref: 130
BOLT-FLANGED,6X18
130J0618
€ 1.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0625
ref: 132B
BOLT-FLANGED-SMALL
132J0625
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
92170A
921701034
ref: 92170A
CLAMP,COOLING HOSE
921701034
€ 14.00
92170B
921701118
ref: 92170B
CLAMP
921701118
€ 5.00
92170C
921701284
ref: 92170C
CLAMP,CABLE
921701284
€ 7.50
92170D
921701492
ref: 92170D
CLAMP
921701492
€ 3.00
92170E
921701493
ref: 92170E
CLAMP
921701493
€ 3.00
92170F
921701884
ref: 92170F
CLAMP
921701884
€ 1.50
92170G
921702043
ref: 92170G
CLAMP
921702043
€ 1.00
92210
922101125
ref: 92210
NUT
922101125
€ 3.00
