FUEL PUMP

VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

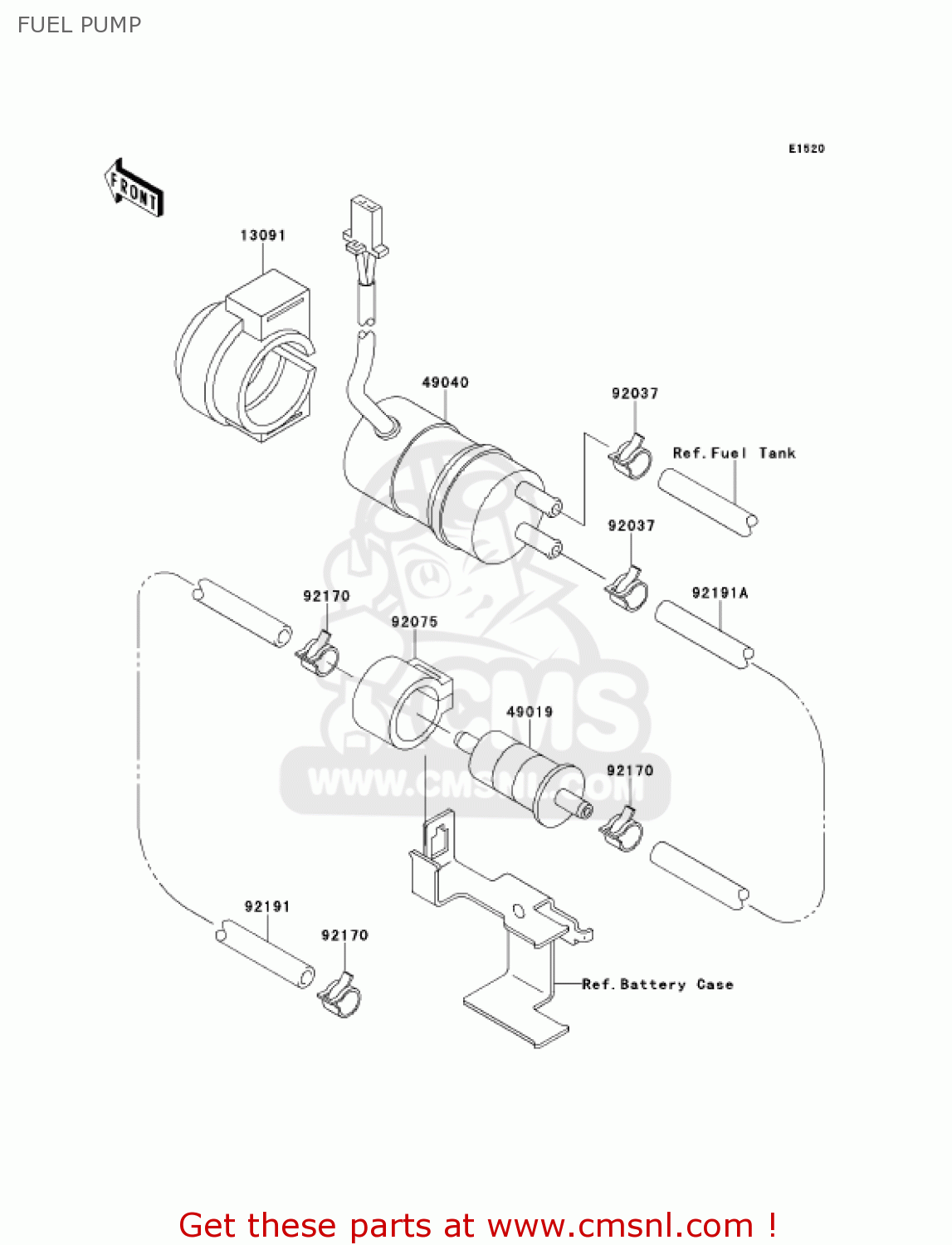

Fuel pump diagram VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

FUEL PUMP VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

FUEL PUMP VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

13091

130911512
ref: 13091

HOLDER

€ 10.00

49019

490191055
ref: 49019

FILTER-FUEL

€ 14.50

49040

490401063
ref: 49040

PUMP-FUEL

€ 410.00

92037

920371505
ref: 92037

CLAMP,TUBE

€ 3.00

92075

920751853
ref: 92075

DAMPER

€ 8.50

92170

921701492
ref: 92170

CLAMP

€ 3.00

92191

921911055
ref: 92191

TUBE,FUEL TAP-FILTER

€ 19.00

92191A

921911058
ref: 92191A

TUBE,FILTER-PUMP

€ 9.00
