FENDERS

VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

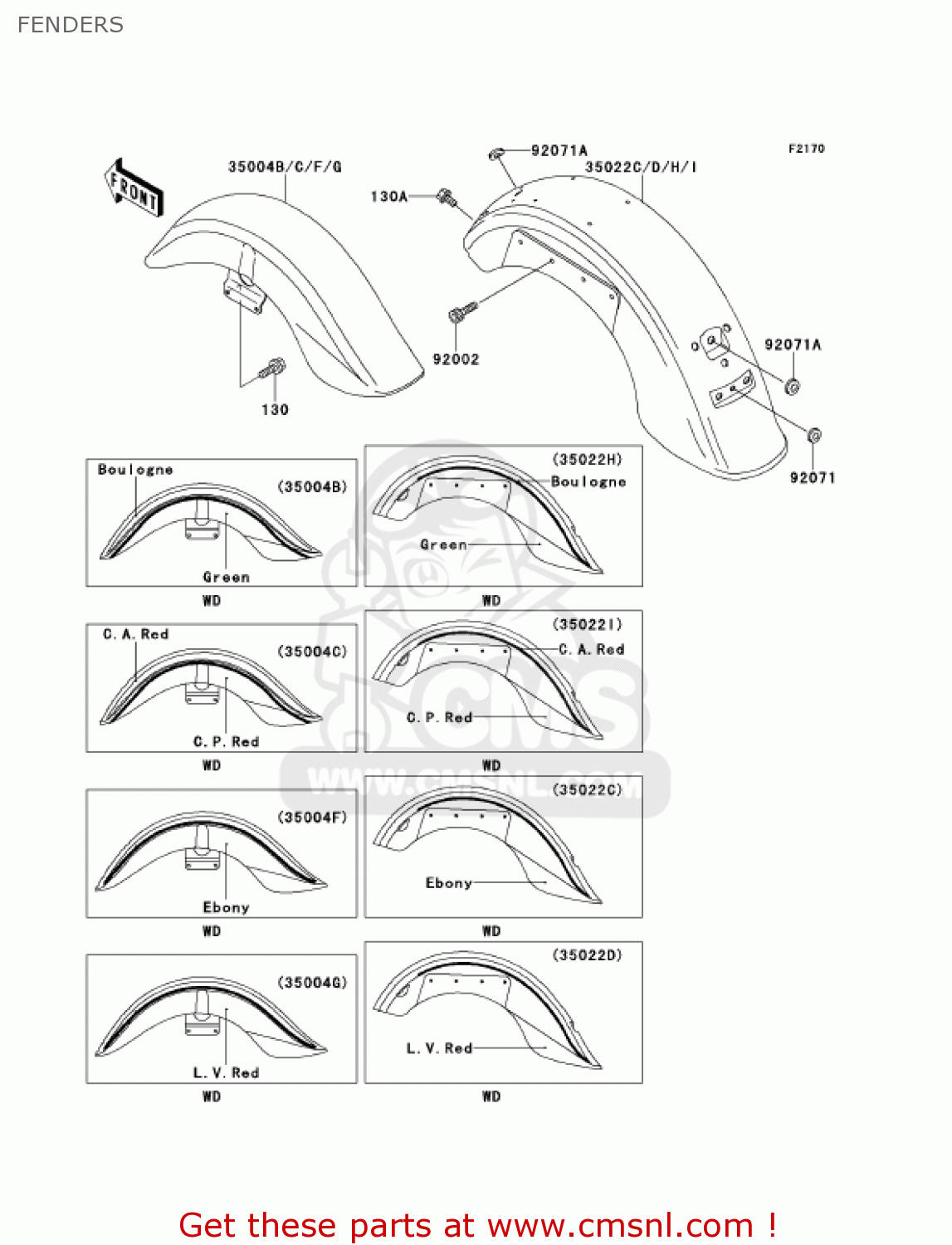

Fenders diagram VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

FENDERS VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

FENDERS VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130J0814
ref: 130

BOLT-FLANGED,8X14

€ 2.50

130A

130J0816
ref: 130A

BOLT-FLANGED,8X16,BLA

€ 0.50

35004G

350045156P5
ref: 35004G

FENDER-FRONT,L.V.RED

€ 286.50

35022D

350225025P5
ref: 35022D

FENDER-COMP-REAR,L.V.

€ 412.50

92002

920021442
ref: 92002

BOLT,SOCKET,8X25

€ 3.00

92071

92071019
ref: 92071

GROMMET,10MM

€ 2.50

92071A

92071099
ref: 92071A

GROMMET, REAR FENDER

€ 3.00
