IGNITION SWITCH/LOCKS/REFLECTORS

VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

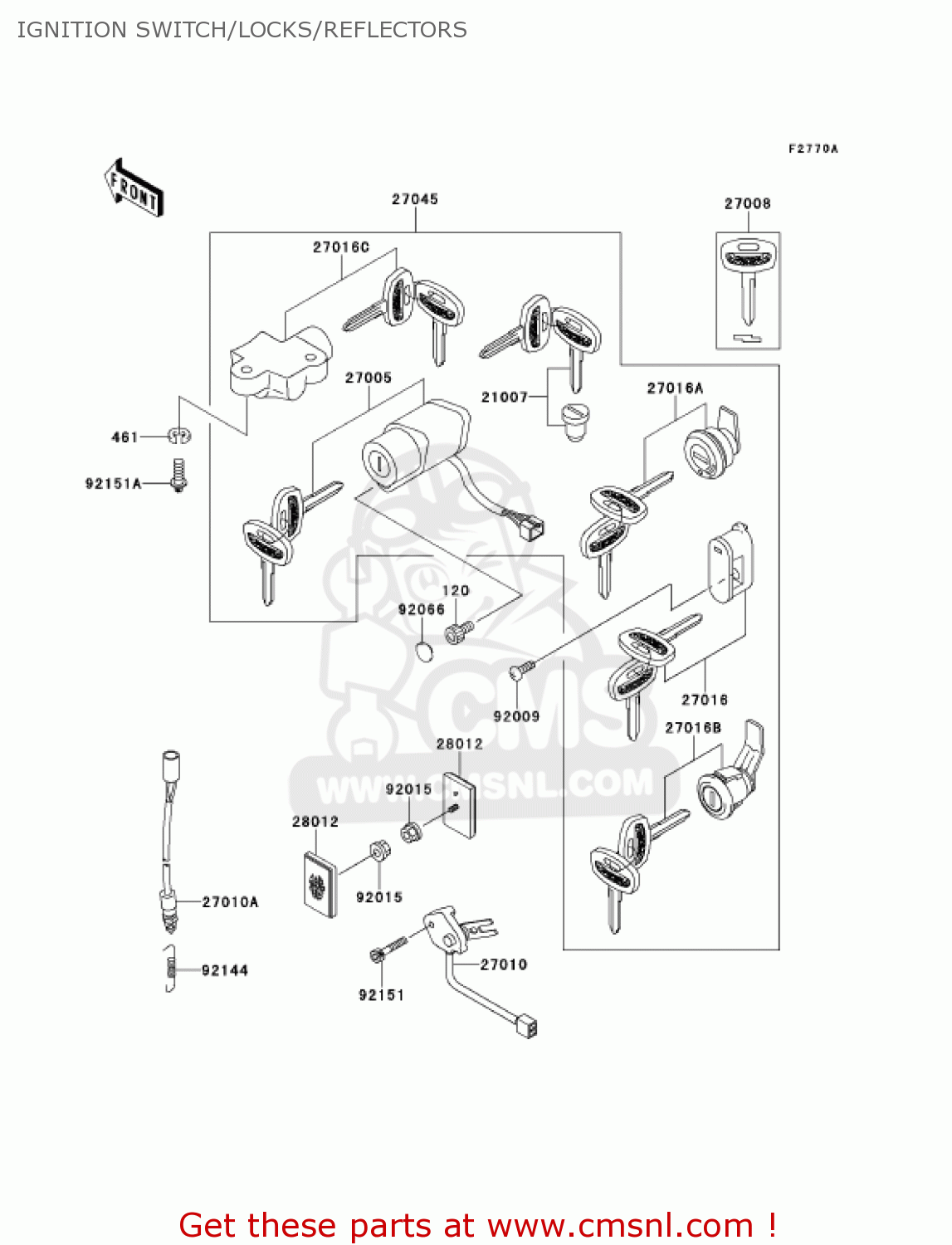

Ignition switch/locks/reflectors diagram VN1500G3 VULCAN 1500 NOMAD 2001 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

120

120P0512
ref: 120

BOLT,ALLEN,5X12

€ 1.00

461

461L0600
ref: 461

WASHER-SPRING

€ 0.50

21007

210075047
ref: 21007

SWITCH-ASSY,TANK CAP

€ 50.50

27005

270051256
ref: 27005

SWITCH-ASSY-IGNITION

€ 249.00

27008

270081208
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 19.50

27010

270101359
ref: 27010

SWITCH,SIDE STAND

€ 54.00

27010A

270101412
ref: 27010A

SWITCH,REAR BRAKE

€ 26.50

27016

270165266
ref: 27016

LOCK-ASSY,HELMET

€ 58.00

27016A

270165267
ref: 27016A

LOCK-ASSY,PAD

€ 54.00

27016B

270165268
ref: 27016B

LOCK-ASSY,SIDE BAG

€ 60.50

27016C

270165269
ref: 27016C

LOCK-ASSY,STEERING

€ 52.50

27045

270455121
ref: 27045

SWITCH-ASSY

€ 510.00

28012

280121009
ref: 28012

REFLECTOR-REFLEX,FR

€ 16.00

92009

920091296
ref: 92009

SCREW,5X12

€ 2.50

92015

920151656
ref: 92015

NUT,FLANGED,5MM

€ 2.00

92066

920661435
ref: 92066

PLUG

€ 2.00

92144

921441141
ref: 92144

SPRING,REAR BRAKE SWI

€ 3.50

92151

921511390
ref: 92151

BOLT,SOCKET,6X35

€ 1.50

92151A

921511911
ref: 92151A

BOLT,TORX,6X16

€ 1.50
