RADIATOR

VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

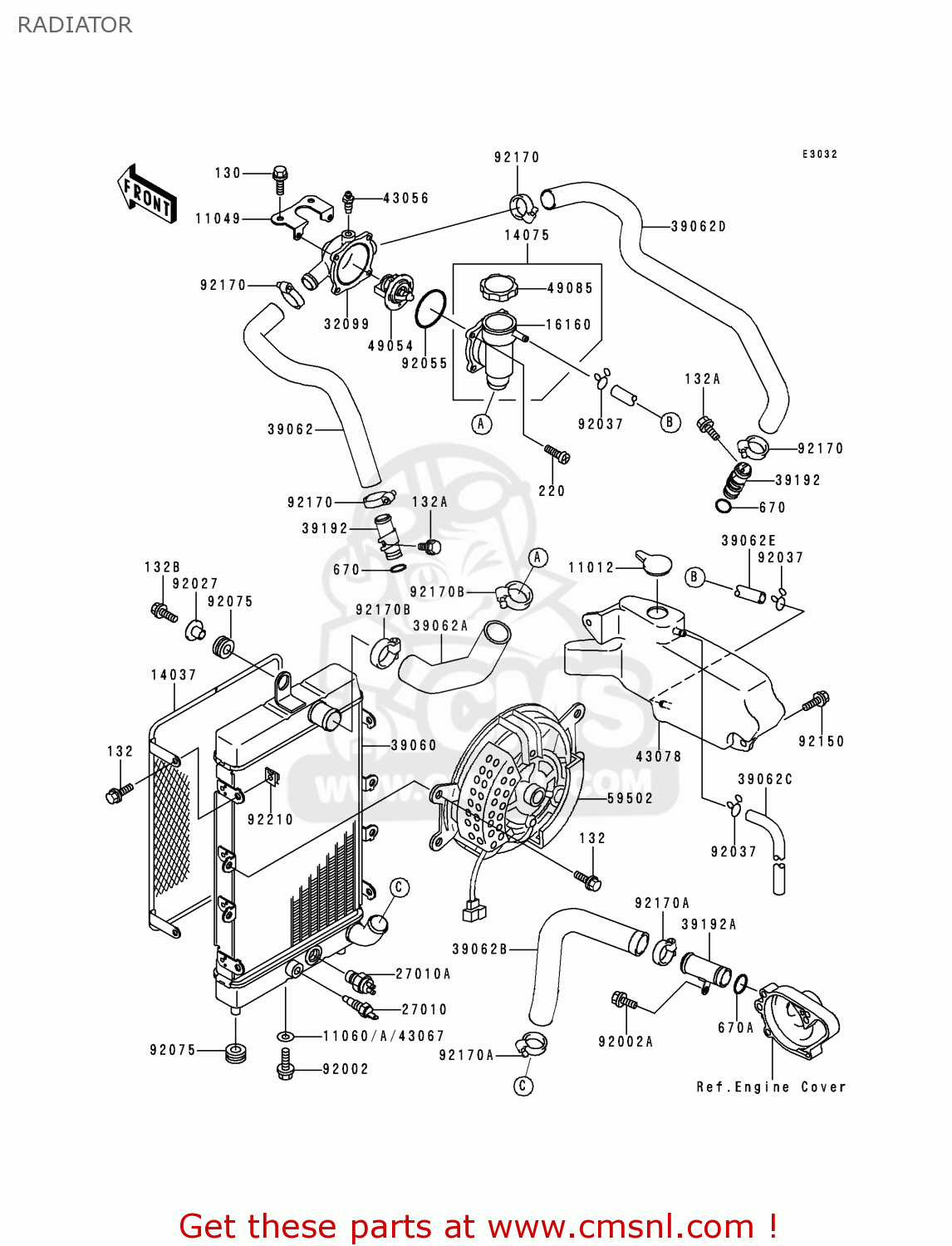

Radiator diagram VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

RADIATOR VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST
RADIATOR VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST
RADIATOR VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
132
132J0610
ref: 132
BOLT-FLANGED-SMALL,6X
132J0610
€ 1.50
11012
110121585
ref: 11012
CAP
110121585
€ 4.50
11049
110491541
ref: 11049
BRACKET,THERMOSTAT CA
€ 6.00
11060A
110601767
ref: 11060A
GASKET,DRAIN PLUG (NAS)
110601767
€ 2.00
14037
140371226
ref: 14037
SCREEN,RADIATOR
€ 43.00
14075
140751068
ref: 14075
CAP-ASSY
140751068
€ 134.00
16160
161601116
ref: 16160
BODY,THERMOSTAT,UPP
161601116
€ 134.00
27010
270101305
ref: 27010
SWITCH
270101305
€ 60.00
27010A
270101364
ref: 27010A
SWITCH,FAN
270101364
€ 117.00
32099
320991093
ref: 32099
CASE,THERMOSTAT
€ 38.50
39060
390601146
ref: 39060
RADIATOR
€ 601.50
39062
390621681
ref: 39062
HOSE-COOLING,HEAD,FR-
€ 15.00
39062A
390621696
ref: 39062A
HOSE-COOLING,THERMO-R
390621696
€ 22.00
39062B
390621697
ref: 39062B
HOSE-COOLING,RADIATOR
390621697
€ 22.00
39062C
390621700
ref: 39062C
HOSE-COOLING,OVERFLOW
€ 15.50
39062D
390621777
ref: 39062D
HOSE-COOLING,HEAD RR-
390621777
€ 31.00
39062E
390621783
ref: 39062E
HOSE-COOLING,RESERVOI
€ 12.00
39192
391921094
ref: 39192
PIPE-WATER
391921094
€ 15.50
39192A
391921096
ref: 39192A
PIPE-WATER
391921096
€ 18.00
43056
43056003
ref: 43056
BREATHER-BRAKE
43056003
€ 16.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781153
ref: 43078
RESERVOIR
430781153
€ 24.00
49054
490541067
ref: 49054
THERMOSTAT
490541067
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
59502
595021115
ref: 59502
FAN-ASSY,RADIATOR
€ 501.00
92002
920021311
ref: 92002
BOLT,FLANGED,10X10
920021311
€ 3.50
92002A
920021569
ref: 92002A
BOLT,6X12
920021569
€ 2.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
920271450
€ 4.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
920751690
€ 3.00
92150
921501392
ref: 92150
BOLT
921501392
€ 3.00
92170
921701032
ref: 92170
CLAMP,COOLING HOSE
921701032
€ 16.50
92170A
921701034
ref: 92170A
CLAMP,COOLING HOSE
921701034
€ 14.00
92170B
921701284
ref: 92170B
CLAMP,CABLE
921701284
€ 7.50
92210
922101125
ref: 92210
NUT
922101125
€ 3.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132B
132J0625
ref: 132B
BOLT-FLANGED-SMALL
132J0625
€ 2.50
220
220D0514
ref: 220
SCREW-PAN-CROS
€ 2.50
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
670B2018
€ 1.00
