CLUTCH MASTER CYLINDER

VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

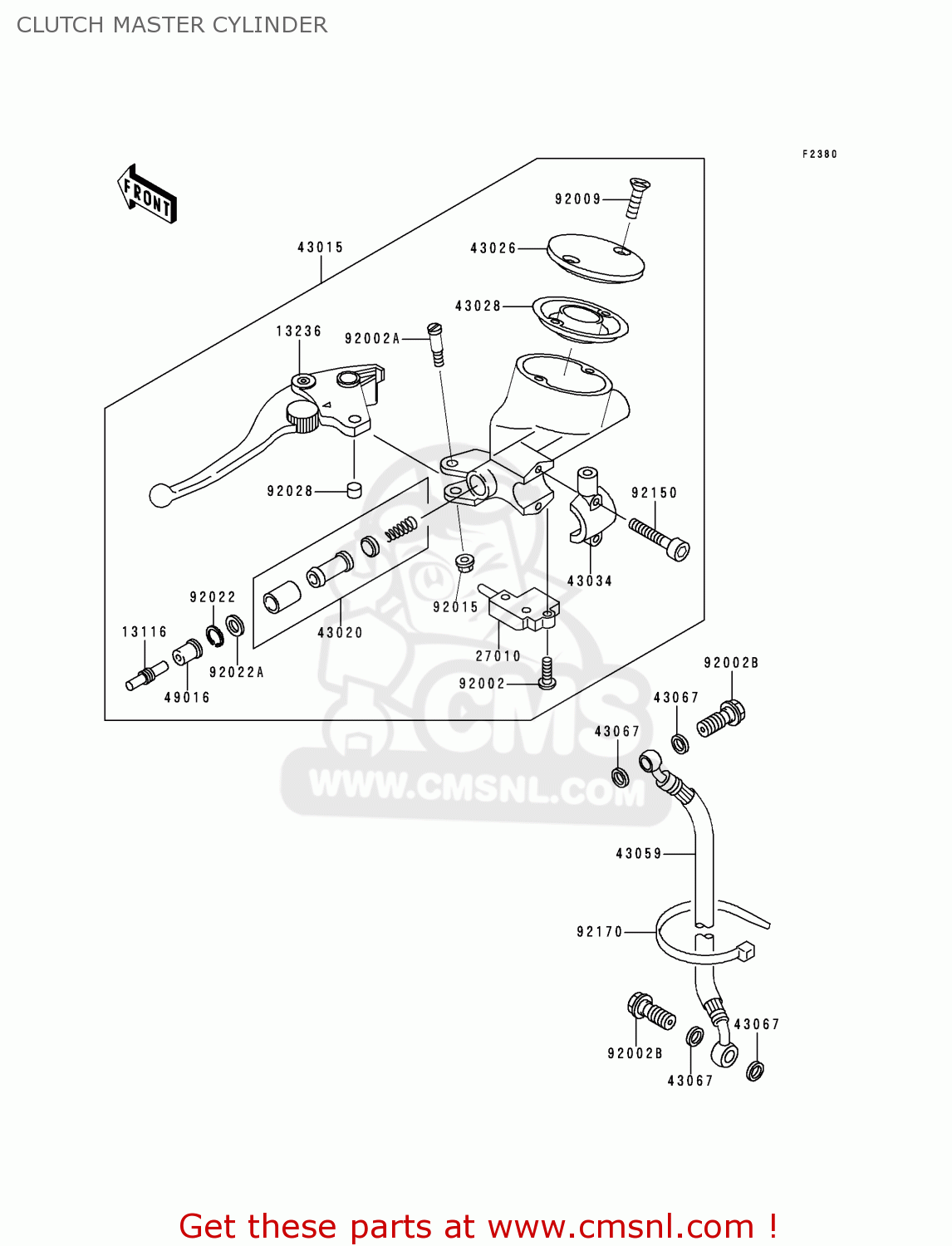

Clutch master cylinder diagram VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

13116

131161110
ref: 13116

ROD-PUSH,MASTER CYLIN

€ 24.00

13236

132361282
ref: 13236

LEVER-COMP,CLUTCH

€ 38.00

27010

270101171
ref: 27010

SWITCH,CLUTCH

€ 25.00

43015

430151579
ref: 43015

CYLINDER-ASSY-MASTER,

€ 259.50

43020

430201055
ref: 43020

PISTON-COMP-BRAKE,CLU

€ 47.50

43026

430261078
ref: 43026

CAP-BRAKE

€ 43.50

43028

430281071
ref: 43028

DIAPHRAGM,MASTER CYLI

€ 15.50

43034

430341102
ref: 43034

HOLDER-BRAKE

€ 54.00

43059

430591954
ref: 43059

HOSE-BRAKE,CLUTCH

€ 123.50

43067

43067001
ref: 43067

WASHER,10.5X15X1.5

€ 1.50

49016

490161044
ref: 49016

COVER-SEAL,MASTER CYL

€ 7.00

92002

920021325
ref: 92002

BOLT

€ 4.00

92002A

920021561
ref: 92002A

BOLT,LEVER SET

€ 8.00

92002B

920021888
ref: 92002B

BOLT,OIL,L=23

€ 3.50

92009

920091440
ref: 92009

SCREW

€ 2.50

92015

920151528
ref: 92015

NUT,FLANGED,6MM

€ 3.50

92022

920221605
ref: 92022

WASHER,PISTON

€ 3.00

92022A

920221606
ref: 92022A

WASHER,PISTON

€ 3.00

92028

920281310
ref: 92028

BUSHING,MASTER CYLIND

€ 10.00

92150

921501025
ref: 92150

BOLT,SOCKET,6MM

€ 4.50

92170

921701703
ref: 92170

CLAMP,HOSE

€ 5.50
