GEAR CHANGE DRUM/SHIFT FORK(S)

VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

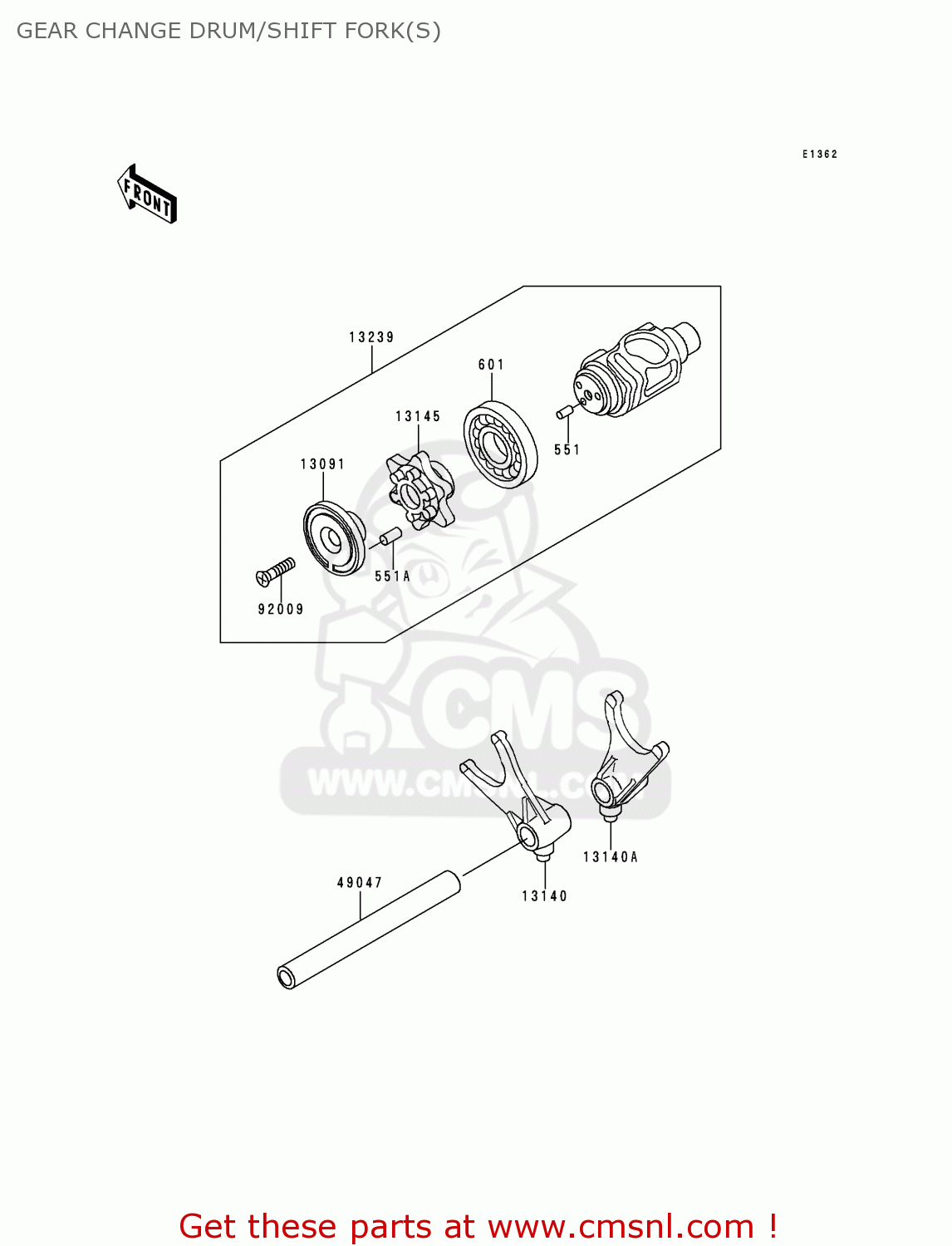

Gear change drum/shift fork(s) diagram VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

551

551A0408
ref: 551

PIN-DOWEL,4X8

€ 0.50

551A

551A0412
ref: 551A

PIN-DOWEL

€ 2.50

601

601A6005
ref: 601

BEARING-BALL

€ 14.50

13091

130911104
ref: 13091

HOLDER,CHANGE DRUM PI

€ 16.50

13140

131401155
ref: 13140

FORK-SHIFT,INPUT,2ND

€ 86.00

13140A

131401258
ref: 13140A

FORK-SHIFT,OUTPUT,3RD

€ 71.00

13145

131451062
ref: 13145

CAM-CHANGE DRUM

€ 28.50

13239

132391141
ref: 13239

DRUM-ASSY-CHANGE

€ 141.50

49047

490471062
ref: 49047

ROD-SHIFT

€ 18.50

92009

920091599
ref: 92009

SCREW

€ 2.50
