FRONT HUB

VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

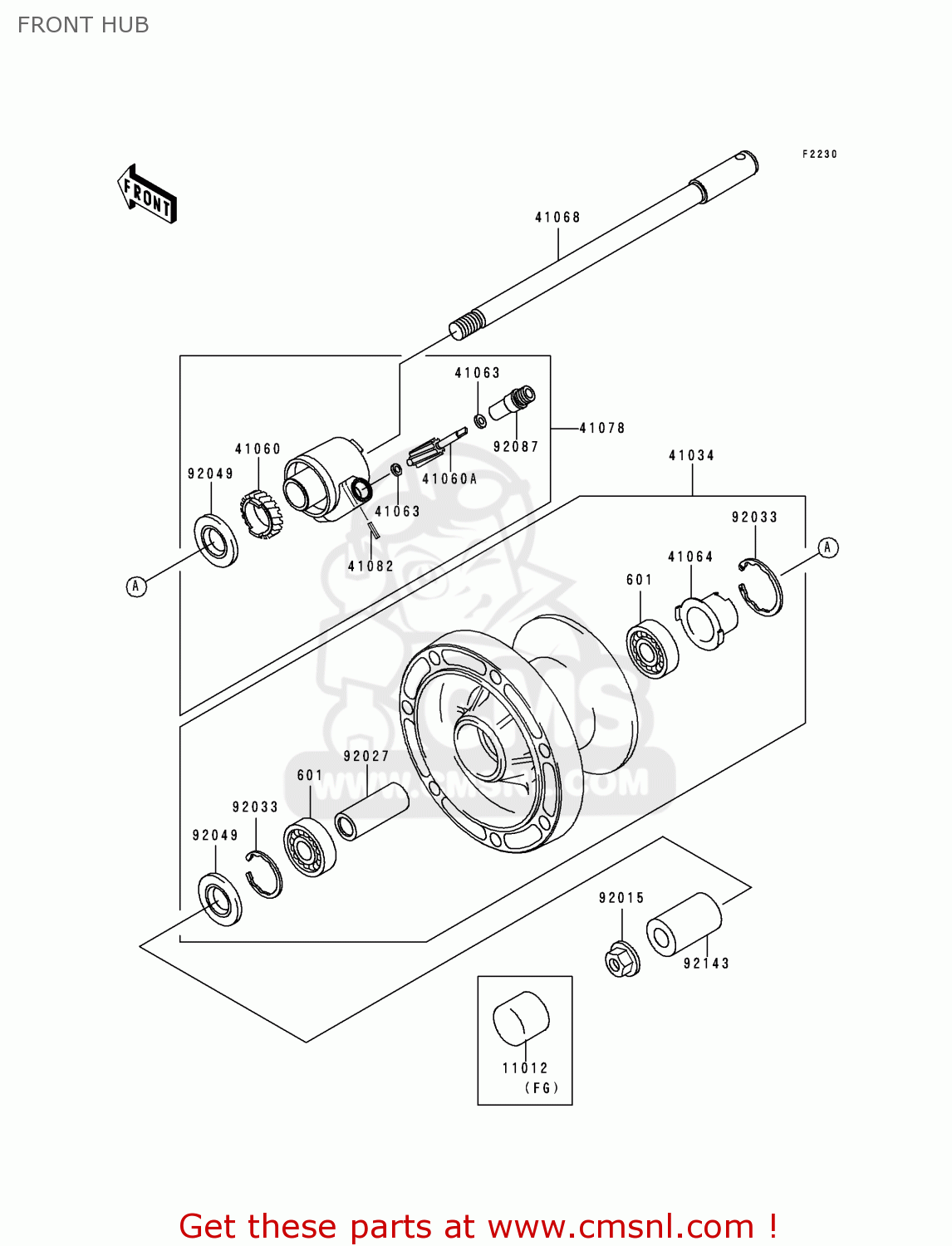

Front hub diagram VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

601

601B6004UU
ref: 601

BEARING-BALL,#6004UUC

€ 27.00

11012

110121592
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41034

410341259
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 577.00

41060

410601160
ref: 41060

GEAR-METER SCREW,25T

€ 17.50

41060A

410601161
ref: 41060A

GEAR-METER SCREW,9T

€ 17.50

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641056
ref: 41064

RECEIVER-SPEEDOMETER

€ 16.00

41068

410681378
ref: 41068

AXLE,FR

€ 61.50

41078

410781103
ref: 41078

CASE-ASSY-METER GEAR

€ 117.00

41082

41082001
ref: 41082

PIN-SPRING

€ 2.50

92015

920151993
ref: 92015

NUT,FLANGED,18MM

€ 6.50

92027

920271752
ref: 92027

COLLAR,20.2X28X70

€ 13.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92087

920871056
ref: 92087

BUSHING-METER GEAR

€ 14.00

92143

921431837
ref: 92143

COLLAR,FR AXLE,LH,L=4

€ 21.50
