IGNITION SWITCH

VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

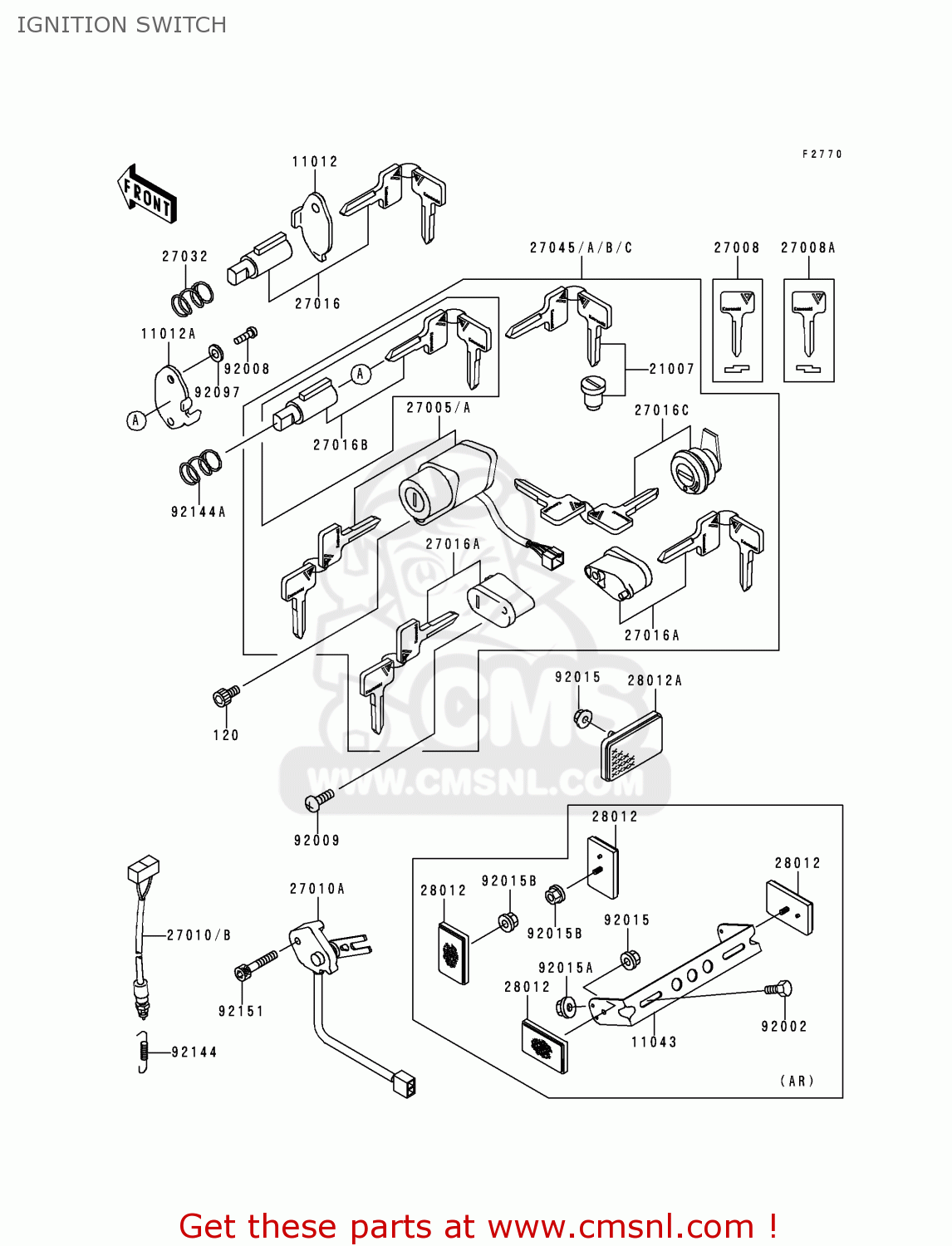

Ignition switch diagram VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

IGNITION SWITCH VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST
IGNITION SWITCH VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
110121134
ref: 11012
FGNRSD
CAP,STEERING LOCK
110121134
€ 4.50
11012A
110121586
ref: 11012A
AREUFRGRITNLSPSTUK
CAP,STEERING LOCK
110121586
€ 5.00
11043
110431619
ref: 11043
AR
BRACKET,REFLECTOR,RR
110431619
€ 9.00
21007
210075024
ref: 21007
ROTOR,LOCK,TANK CAP
€ 50.50
27005
270051198
ref: 27005
SWITCH-ASSY-IGNITION
€ 238.00
27008
270081138
ref: 27008
KEY-LOCK,BLANK
270081138
€ 13.00
27008A
270081139
ref: 27008A
KEY-LOCK,BLANK
270081139
€ 13.00
27010
270101353
ref: 27010
SWITCH,REAR BRAKE
€ 25.50
27010A
270101359
ref: 27010A
SWITCH,SIDE STAND
€ 54.00
27016
270161005
ref: 27016
FGNRSD
LOCK-ASSY,STEERING
270161005
€ 65.00
27016A
270165129
ref: 27016A
LOCK-ASSY,HELMET
270165129
€ 58.00
27016B
270165131
ref: 27016B
AREUFRGRITNLSPSTUK
LOCK-ASSY,STEERING
270165131
€ 66.50
27016C
270165232
ref: 27016C
LOCK-ASSY,PAD
€ 54.00
27032
27032001
ref: 27032
FGNRSD
SPRING-STEERING LOCK
27032001
€ 3.50
27045
270455027
ref: 27045
AREUFRGRITNLSPSTUK
SWITCH-ASSY
€ 373.50
27045A
270455028
ref: 27045A
FGNRSD
SWITCH-ASSY
€ 340.00
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
28012A
280121078
ref: 28012A
REFLECTOR-REFLEX,RR
280121078
€ 15.00
92002
920021132
ref: 92002
AR
BOLT,6X12
€ 2.50
92008
92008007
ref: 92008
SCREW-TAPPING
92008007
€ 2.50
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
92015
920151259
ref: 92015
EUFGFRGRITNLNRSDSPST
NUT,FLANGED,5MM
920151259
€ 2.50
92015
920151259
ref: 92015
AR
NUT,FLANGED,5MM
920151259
€ 2.50
92015A
920151367
ref: 92015A
AR
NUT,FLANGED,6MM
920151367
€ 0.50
92015B
920151656
ref: 92015B
AR
NUT,FLANGED,5MM
920151656
€ 2.00
92097
92097003
ref: 92097
WASHER
92097003
€ 2.50
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92144A
921441222
ref: 92144A
AREUFRGRITNLSPSTUK
SPRING,STEERING LOCK
921441222
€ 2.50
92151
921511390
ref: 92151
BOLT,SOCKET,6X35
€ 1.50
