FRAME

VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

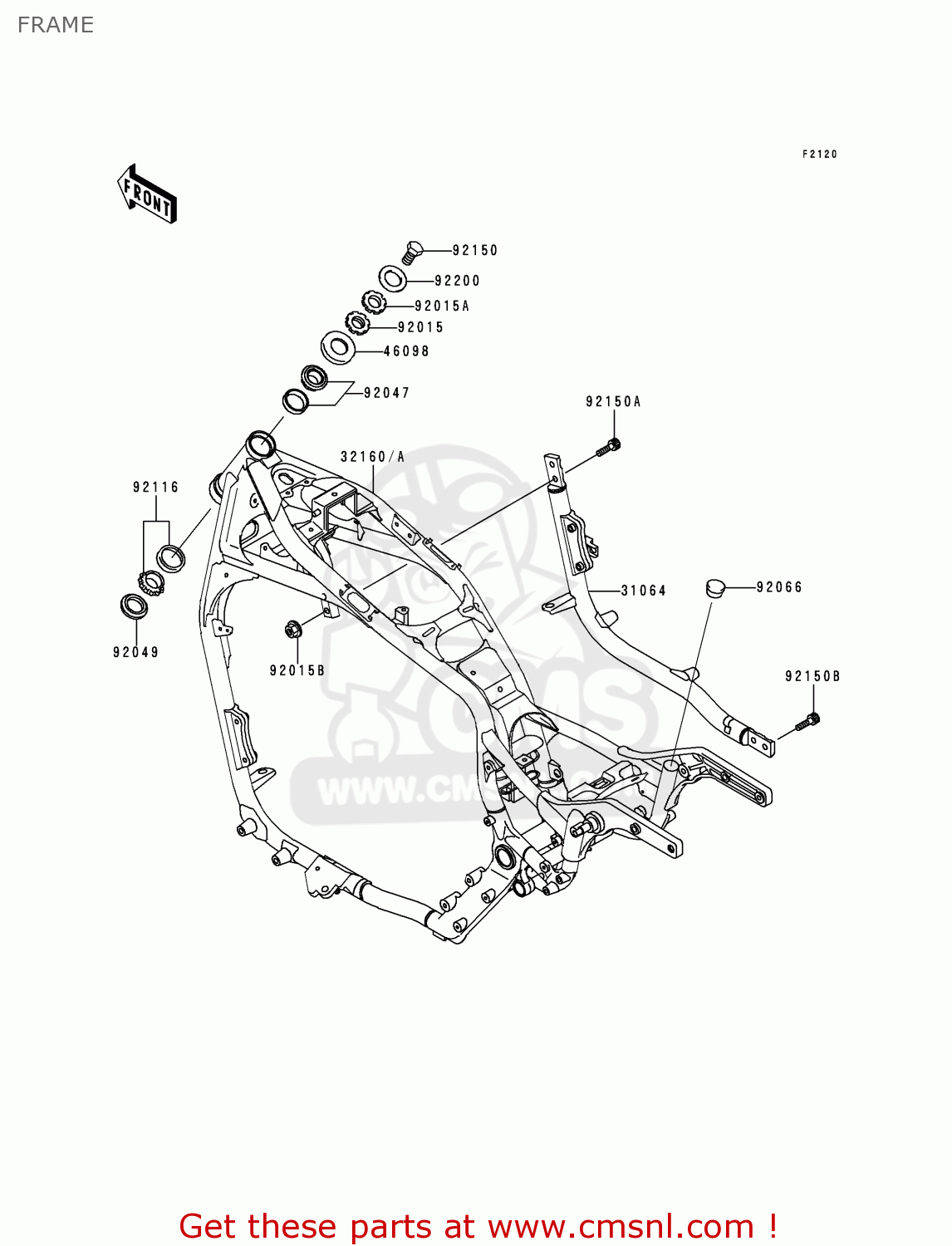

Frame diagram VN1500D1 VN1500 CLASSIC 1996 EU UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

31064

310641192
ref: 31064

PIPE-COMP,DOWNTUBE,RH

€ 345.50

32160

321601442
ref: 32160
AREUFRGRITNLSPSTUK

FRAME-COMP

€ 1,478.00

32160A

321601443
ref: 32160A
FGNRSD

FRAME-COMP

€ 1,317.00

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92015B

920151727
ref: 92015B

NUT

€ 2.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92066

920661444
ref: 92066

PLUG

€ 3.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92150

921501672
ref: 92150

BOLT,14X25

€ 9.50

92150A

921501690
ref: 92150A

BOLT,SOCKET,10X30

€ 4.00

92150B

921501942
ref: 92150B

BOLT,SOCKET,10X23

€ 4.50

92200

922001140
ref: 92200

WASHER

€ 8.00
