STARTER MOTOR/STARTER CLUTCH ('8
KZ750H4 1983 USA CANADA / LTD

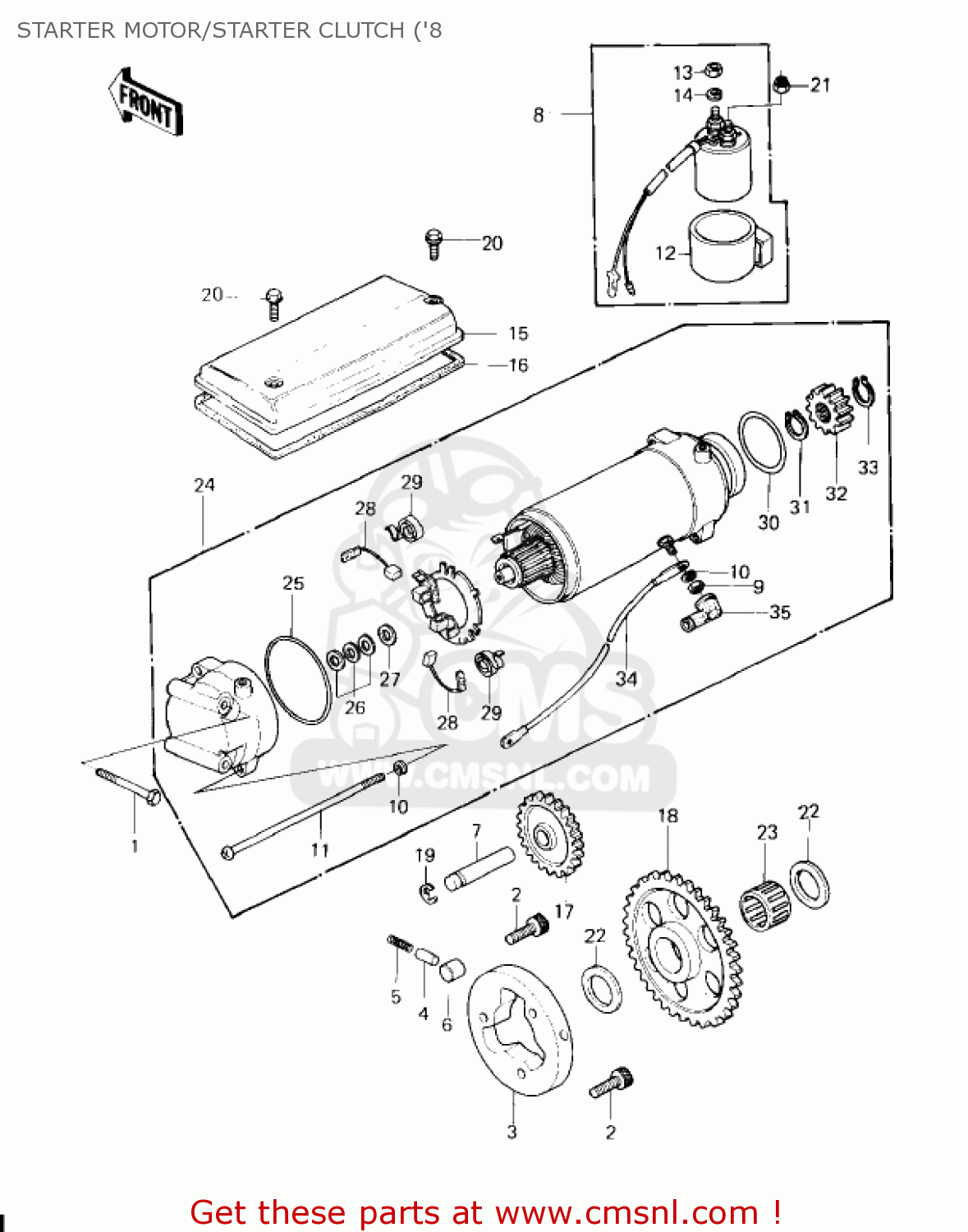

Starter motor/starter clutch ('8 diagram KZ750H4 1983 USA CANADA / LTD
STARTER MOTOR/STARTER CLUTCH ('8 KZ750H4 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
112G0660
ref: 1
BOLT-UPSET
€ 3.00
2
120P0812
ref: 2
BOLT,SOCKET,8X12
€ 2.50
3
131931012
ref: 3
CLUTCH TARIER
€ 152.50
4
92043087
ref: 4
PIN
€ 8.00
5
92081110
ref: 5
SPRING
€ 3.00
6
92122004
ref: 6
ROLLER,15X13
€ 7.00
7
21143003
ref: 7
SHAFT,IDLE GEAR
€ 10.00
8
21164005
ref: 8
SWITCH ASSY,MAGNETIC
€ 99.00
9
312B0600
ref: 9
NUT,6MM
€ 0.50
10
461F0600
ref: 10
WASHER-SPRING,6MM
€ 0.50
11
21099006
ref: 11
SCREW,PAN HEAD, 6X130
€ 4.50
12
21064002
ref: 12
DAMPER,MAGNETIC SWITC
€ 13.50
13
312B0600
ref: 13
NUT,6MM
€ 0.50
14
461F0600
ref: 14
WASHER-SPRING,6MM
€ 0.50
15
21165003
ref: 15
COVER,STARTER
€ 13.50
16
21166003
ref: 16
GASKET,STARTER COVER (NAS)
€ 9.50
17
21167004
ref: 17
GEAR-SPUR,IDLE,29T
€ 69.50
18
120461032
ref: 18
SPROCKET,STARTER,58T
€ 99.50
19
482K0200
ref: 19
CIRCLIP-TYPE-E,12MM
€ 0.50
20
920011151
ref: 20
BOLT,6X10
€ 3.00
21
92017014
ref: 21
NUT,LOCK,6MM
€ 4.00
22
920261025
ref: 22
SPACER,25X36X3.2
€ 3.50
23
92046056
ref: 23
BEARING-NEEDLE,K25301
€ 24.00
24
211631190
ref: 24
STARTER-ELECTRIC
€ 707.50
25
21027006
ref: 25
RING-O,62MM
€ 8.00
26
21025011
ref: 26
WASHER, THRUST, 0.2T
€ 4.00
27
21025010
ref: 27
WASHER,THRUST,T=1.6
€ 4.00
28
21039003
ref: 28
BRUSH,CARBON
€ 23.50
29
21040003
ref: 29
SPRING-BRUSH
€ 4.50
30
21027008
ref: 30
O RING, 40M/M
€ 8.50
31
92033034
ref: 31
CIRCLIP
€ 7.00
32
21053004
ref: 32
PINION, STARTER
€ 69.00
33
92033037
ref: 33
RING-SNAP,13MM
€ 6.50
34
260111081
ref: 34
WIRE,STARTER MOTR LD
€ 51.50
35
21017017
ref: 35
GROMMET-CORD
€ 6.50
