CHASSIS ELECTRICAL EQUIPMENT ('8
KZ750H4 1983 USA CANADA / LTD

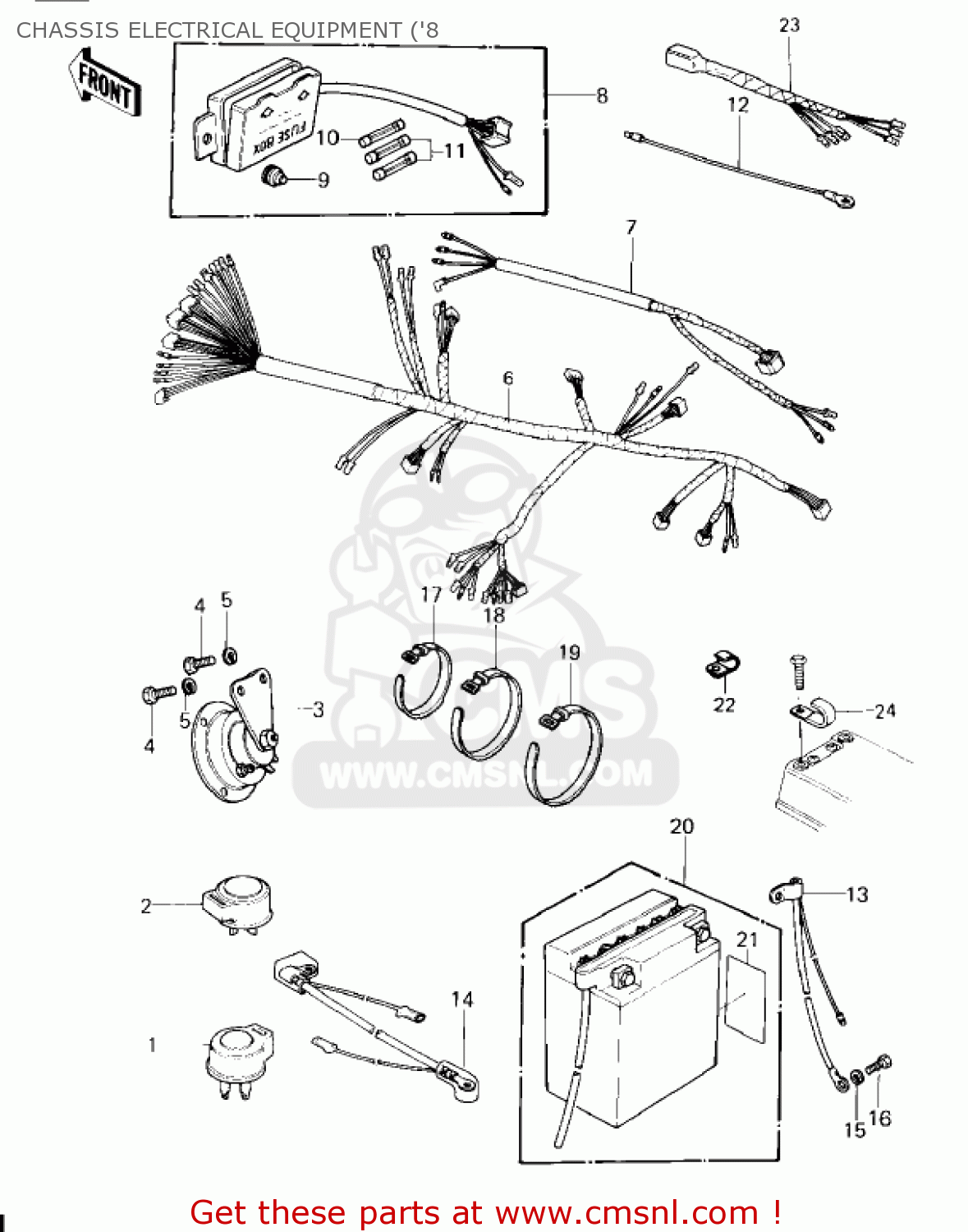

Chassis electrical equipment ('8 diagram KZ750H4 1983 USA CANADA / LTD
CHASSIS ELECTRICAL EQUIPMENT ('8 KZ750H4 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
27002011
ref: 1
RELAY-ASSY,TURN SIGNA
€ 69.50
2
27002016
ref: 2
RELAY-ASSY,HAZARD
€ 26.50
3
27003076
ref: 3
HORN
€ 84.00
4
115G0816
ref: 4
BOLT-HEX,HEAD 8X16
€ 0.50
5
461F0800
ref: 5
WASHER-SPRING,8MM
€ 0.50
6
260011149
ref: 6
WIRING HARNESS,MAIN
€ 130.50
7
260011117
ref: 7
WIRING HARNESS,CENTER
€ 25.00
8
260041006
ref: 8
FUSE-ASSY
€ 57.00
9
92075279
ref: 9
DAMPER,FUSE
€ 3.50
10
26006005
ref: 10
FUSE 20A
€ 3.50
11
26006003
ref: 11
FUSE 10A
€ 3.00
12
26011063
ref: 12
WIRE-LEAD,L=185
€ 5.00
13
260111032
ref: 13
WIRE-LEAD,BATTERY GRO
€ 17.00
14
260111080
ref: 14
WIRE,LEAD,BATTERY GRD
€ 18.50
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
92001137
ref: 16
BOLT,HEX HEAD,6M/M
€ 4.00
17
92072030
ref: 17
BAND,SHORT
€ 3.00
18
92072031
ref: 18
BAND,MIDDLE
€ 3.00
19
92072056
ref: 19
BAND,RUBBER
€ 3.00
20
260121004
ref: 20
BATTERY 12V 12AH
€ 97.00
21
560401036
ref: 21
WARNING, BATTERY
€ 2.00
22
92037113
ref: 22
CLAMP
€ 4.00
23
26002063
ref: 23
WIRING HARNESS, REAR
€ 20.00
24
920371069
ref: 24
CLAMP,L=60
€ 1.50
