CYLINDER/PISTONS ('80 H1)
KZ750H4 1983 USA CANADA / LTD

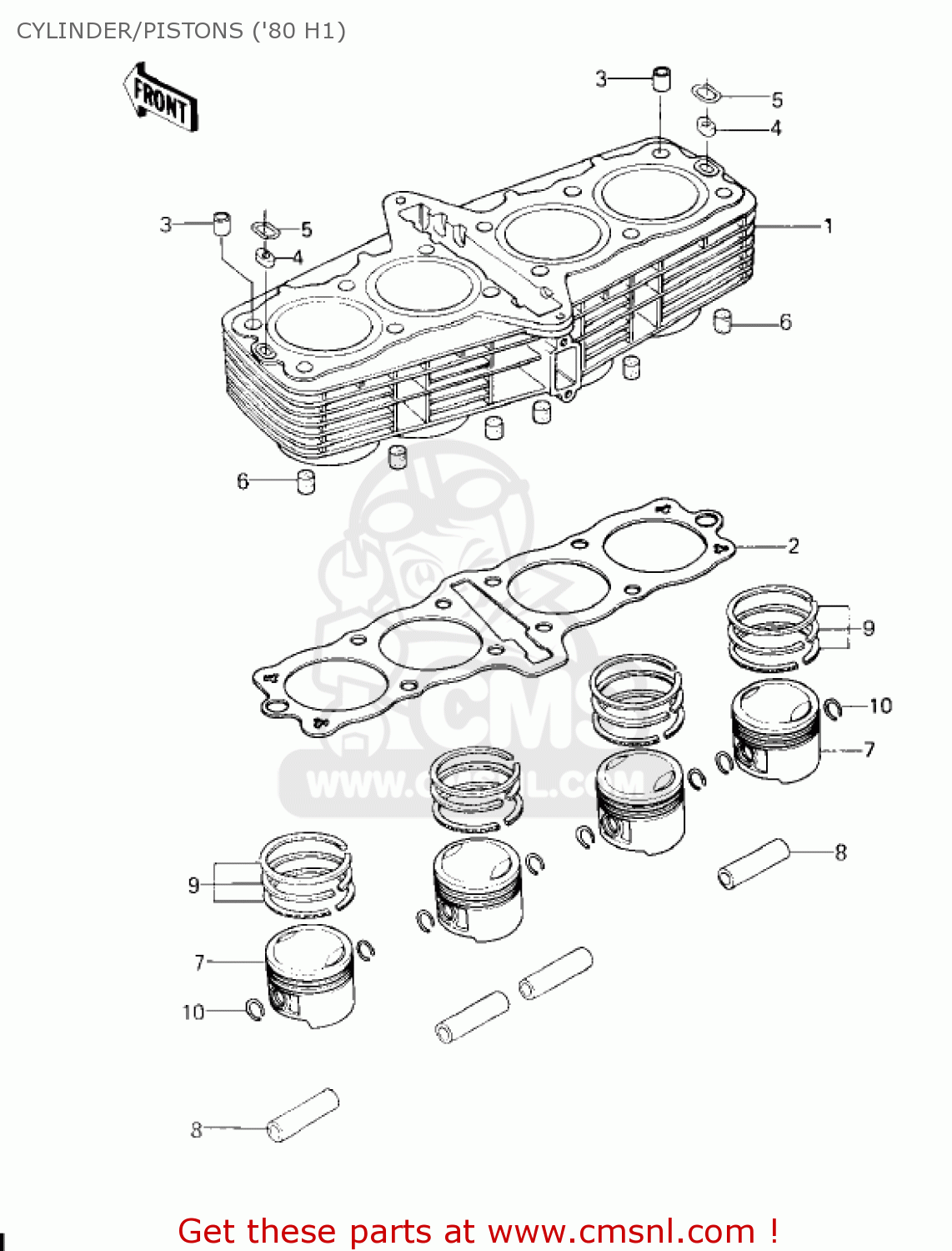

Cylinder/pistons ('80 h1) diagram KZ750H4 1983 USA CANADA / LTD
CYLINDER/PISTONS ('80 H1) KZ750H4 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
110051054
ref: 1
CYLINDER
€ 683.50
2
110601144
ref: 2
GASKET,CYLINDER BASE (NAS)
€ 23.50
3
920431266
ref: 3
PIN,11X14X12.3
€ 1.00
4
920431210
ref: 4
PIN,OIL LINE
€ 4.50
5
920551147
ref: 5
RING-O,CYLINDER OIL L
€ 6.00
6
920661016
ref: 6
PLUG,DAMPER,13.5X8
€ 3.00
7
130011027
ref: 7
PISTON,STD
€ 69.00
7
130011059
ref: 7
PISTON,STD
€ 69.00
7
130291021
ref: 7
PISTON-ENGINE L,O/S 0
€ 51.50
7
130271022
ref: 7
PISTON,0.040 O/S
€ 34.50
8
130021001
ref: 8
PIN-PISTON
€ 4.00
9
130085031
ref: 9
RING-SET-PISTON,STD
€ 69.00
9
130255014
ref: 9
RING-SET-PISTON L,O/S
€ 65.00
10
92036005
ref: 10
CIRCLIP-PISTON PIN
€ 2.50
