KZ750H4 1983 USA CANADA / LTD

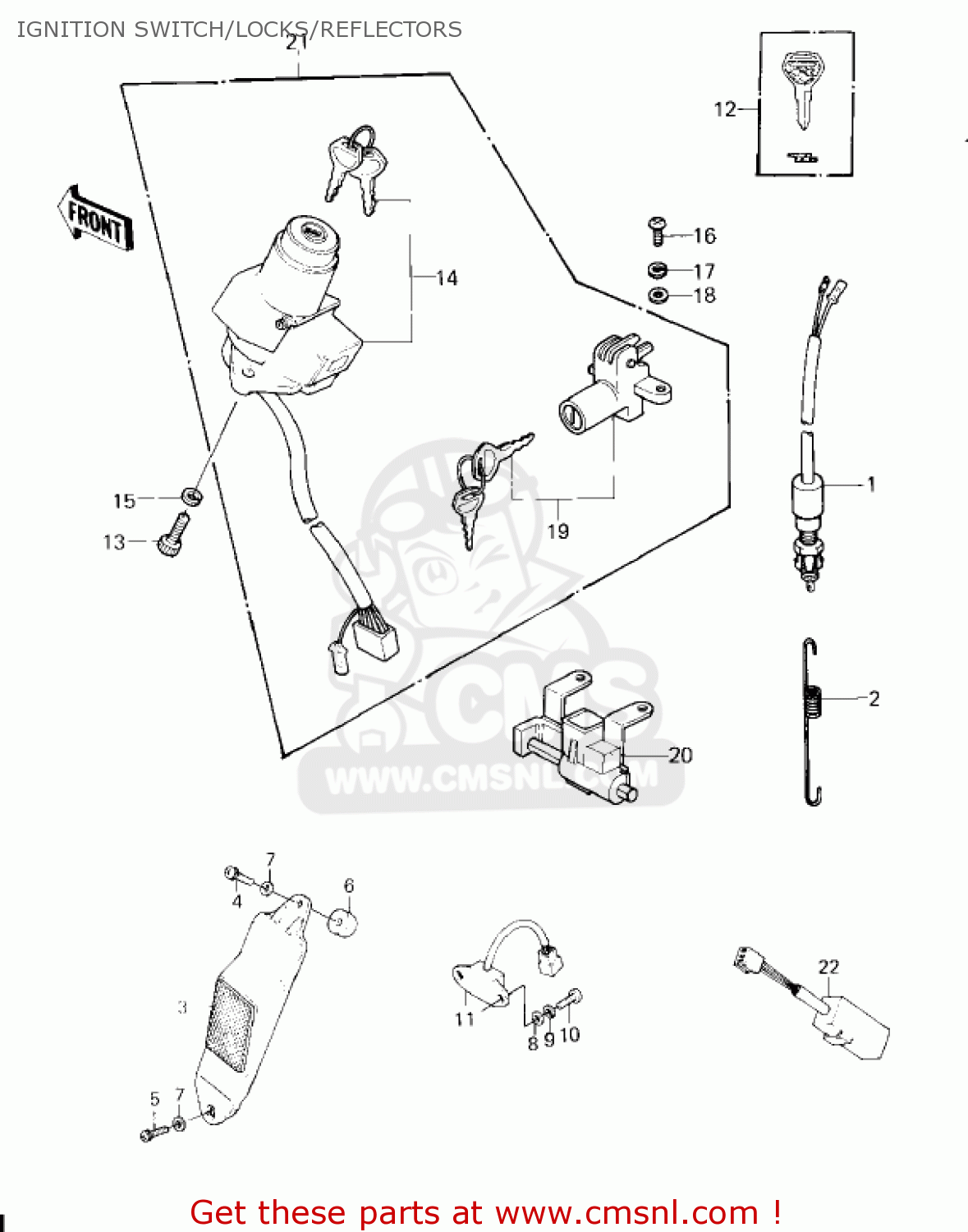

Ignition switch/locks/reflectors diagram KZ750H4 1983 USA CANADA / LTD
IGNITION SWITCH/LOCKS/REFLECTORS KZ750H4 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
270101019
ref: 1
SWITCH,REAR BRAKE
€ 23.00
2
27011015
ref: 2
SPRING,BRAKE LAMP SW
€ 6.50
3
280011015
ref: 3
REFLECTOR-ASSY-REFLEX
€ 31.50
4
920091100
ref: 4
SCREW,PAN HEAD,5X30
€ 0.50
5
920091099
ref: 5
SCREW,PAN HEAD,5X16
€ 2.50
6
920261077
ref: 6
SPACER,5.2X23X10
€ 3.00
7
25009004
ref: 7
WASHER,5.2X16X1.2T
€ 2.50
8
410B0600
ref: 8
WASHER-PLAIN-SMALL,6M
€ 0.50
9
461F0600
ref: 9
WASHER-SPRING,6MM
€ 0.50
10
220B0620
ref: 10
SCREW-PAN HEAD,6X20
€ 2.50
11
270101024
ref: 11
SWITCH,RESERV LIGHTIN
€ 149.00
12
270081103
ref: 12
OPTION
KEY-LOCK,BLANK
€ 13.50
13
120S0616
ref: 13
BOLT-SOCKET,6X16
€ 1.00
14
270055024
ref: 14
SWITCH ASSY IGNITION
€ 249.00
15
461F0600
ref: 15
WASHER-SPRING,6MM
€ 0.50
16
220B0614
ref: 16
SCREW-PAN HEAD,6X14
€ 2.00
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
410B0600
ref: 18
WASHER-PLAIN-SMALL,6M
€ 0.50
19
270165010
ref: 19
LOCK-ASSY,SEAT
€ 72.50
20
530451001
ref: 20
HOOK ASSY,HELMET
€ 31.00
21
270045151
ref: 21
OPTION
SWITCH-ASSY
€ 339.50
22
28019001
ref: 22
SWITCH,OUTAGE INDICTR
€ 46.00
