CRANKCASE ('80 H1)
KZ750H4 1983 USA CANADA / LTD

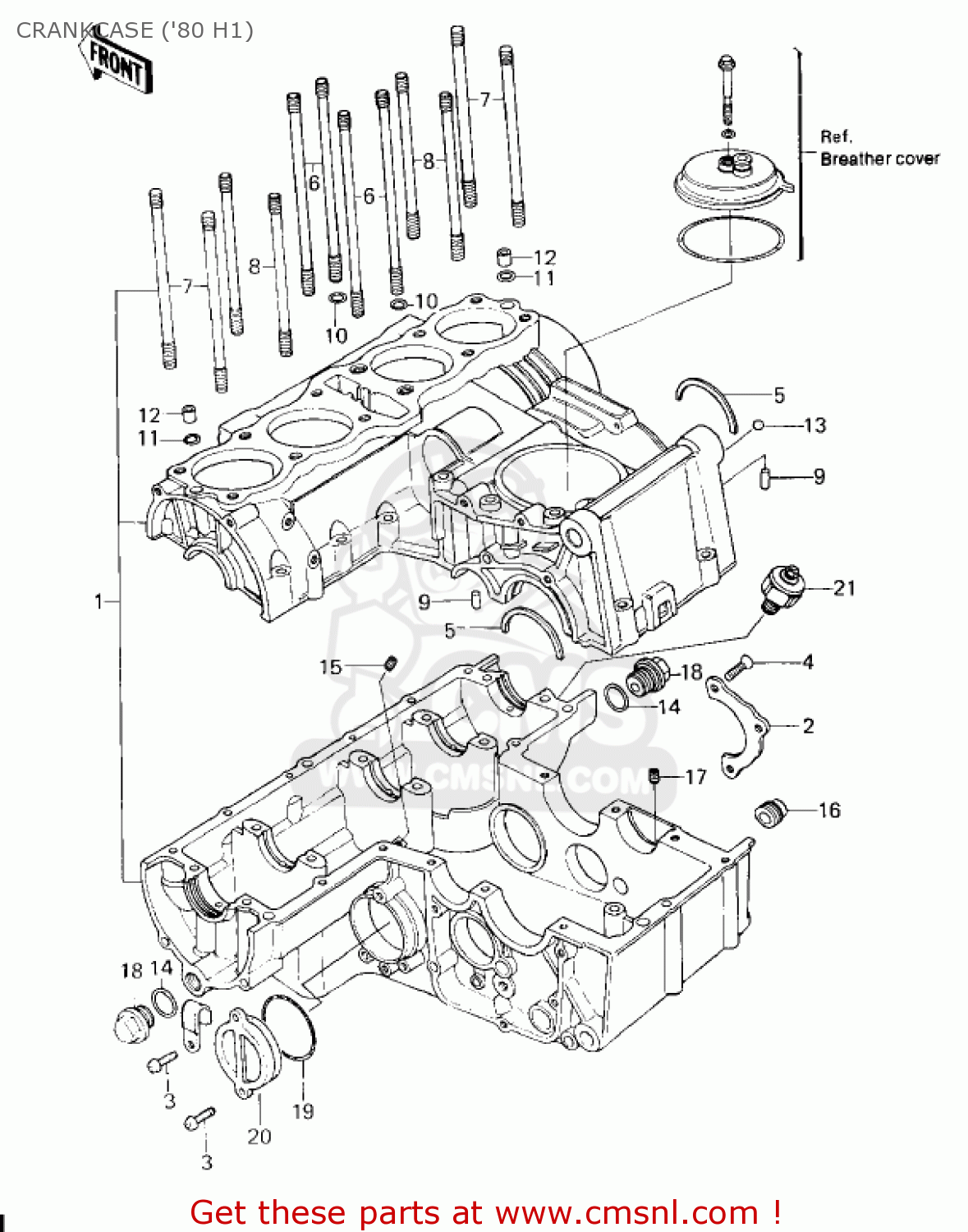

Crankcase ('80 h1) diagram KZ750H4 1983 USA CANADA / LTD
CRANKCASE ('80 H1) KZ750H4 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
140015046
ref: 1
CRANKCASE SET
€ 1,151.00
2
140141007
ref: 2
PLATE-POSITION,SECOND
€ 7.00
3
220B0620
ref: 3
SCREW-PAN HEAD,6X20
€ 2.50
4
221B0620
ref: 4
SCREW-CNTSNK HD,6X20
€ 0.50
5
14013004
ref: 5
RING-BEARING SETTING
€ 7.00
6
92004062
ref: 6
(*) MARKED PARTS ARE
STUD, 10X153
€ 13.50
7
920041004
ref: 7
(*) MARKED PARTS ARE
STUD, 10X133
€ 11.50
8
920041007
ref: 8
(*) MARKED PARTS ARE
STUD, 10X116
€ 6.00
9
92042016
ref: 9
(*) MARKED PARTS ARE
PIN,DOWEL,6X16
€ 3.50
10
92055099
ref: 10
(*) MARKED PARTS ARE
O RING, 8.8MM
€ 3.00
11
670D2010
ref: 11
O RING,10MM
€ 1.00
12
92062016
ref: 12
NOZZLE
€ 3.50
13
92066057
ref: 13
(*) MARKED PARTS ARE
PLUG,RUBBER BALL,6.7
€ 3.00
14
920551146
ref: 14
(*) MARKED PARTS ARE
RING-O
€ 5.50
15
92062011
ref: 15
(*) MARKED PARTS ARE
NOZZLE,OIL
€ 5.50
16
92062014
ref: 16
(*) MARKED PARTS ARE
NOZZLE
€ 6.00
17
92062015
ref: 17
(*) MARKED PARTS ARE
NOZZLE
€ 4.00
18
92066066
ref: 18
(*) MARKED PARTS ARE
PLUG
€ 7.00
19
670B3046
ref: 19
O RING,46MM
€ 3.50
20
920661019
ref: 20
PLUG,SECONDARY SHAFT,
€ 12.50
21
16144006
ref: 21
SWITCH,OIL PRESSURE
€ 28.00
