SEAT ('80 H1)
KZ750H4 1983 USA CANADA / LTD

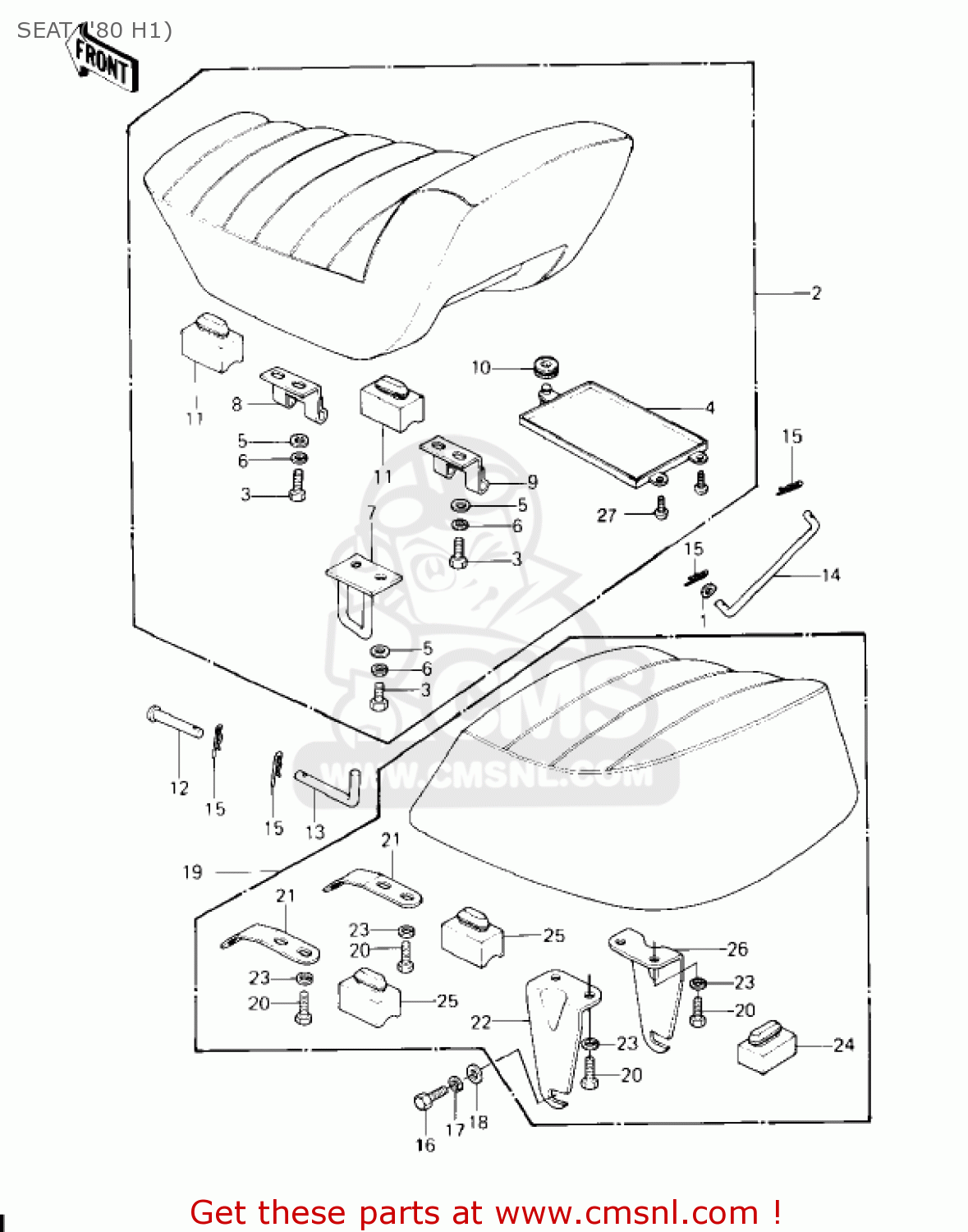

Seat ('80 h1) diagram KZ750H4 1983 USA CANADA / LTD
SEAT ('80 H1) KZ750H4 1983 USA CANADA / LTD
×
prices are in EUR
ref
part #
description
quantity
1
410B0600
ref: 1
WASHER-PLAIN-SMALL,6M
€ 0.50
2
530011078
ref: 2
SEAT ASSY
€ 442.00
3
112B0614
ref: 3
BOLT-UPSET 6X14
€ 2.50
4
32099011
ref: 4
CASE,MANUAL
€ 11.50
5
411B0600
ref: 5
WASHER-PLAIN,6MM
€ 0.50
6
461F0600
ref: 6
WASHER-SPRING,6MM
€ 0.50
7
53008021
ref: 7
HOOK,SEAT
€ 7.50
8
5300901710
ref: 8
HINGE,BLACK
€ 3.50
9
530091021
ref: 9
HINGE,SEAT,RR
€ 9.50
10
92071056
ref: 10
GROMMET
€ 2.50
11
92075156
ref: 11
DAMPER,SEAT
€ 6.50
12
53011002
ref: 12
PIN,6X48
€ 3.50
13
53011008
ref: 13
PIN,SEAT PIVOT
€ 4.00
14
53054006
ref: 14
STOPPER, SEAT
€ 4.00
15
554A0600
ref: 15
PIN-SNAP,SIDE STAND
€ 0.50
16
112G0612
ref: 16
BOLT-UPSET
€ 2.50
17
461F0600
ref: 17
WASHER-SPRING,6MM
€ 0.50
18
411B0600
ref: 18
WASHER-PLAIN,6MM
€ 0.50
19
530011079
ref: 19
SEAT ASSY,TANDEM
€ 331.50
20
112B0614
ref: 20
BOLT-UPSET 6X14
€ 2.50
21
110341696
ref: 21
BRACKET,TANDEM SEAT
€ 1.50
22
110341697
ref: 22
BRACKET,TANDEM SEAT
€ 2.50
23
461F0600
ref: 23
WASHER-SPRING,6MM
€ 0.50
24
92075099
ref: 24
DAMPER RUBBER
€ 3.50
25
92075156
ref: 25
DAMPER,SEAT
€ 6.50
26
110341828
ref: 26
BKT,TANDEM SEAT,RR,RH
€ 2.50
27
920091043
ref: 27
SCREW,TAPPING,5X8
€ 3.00
