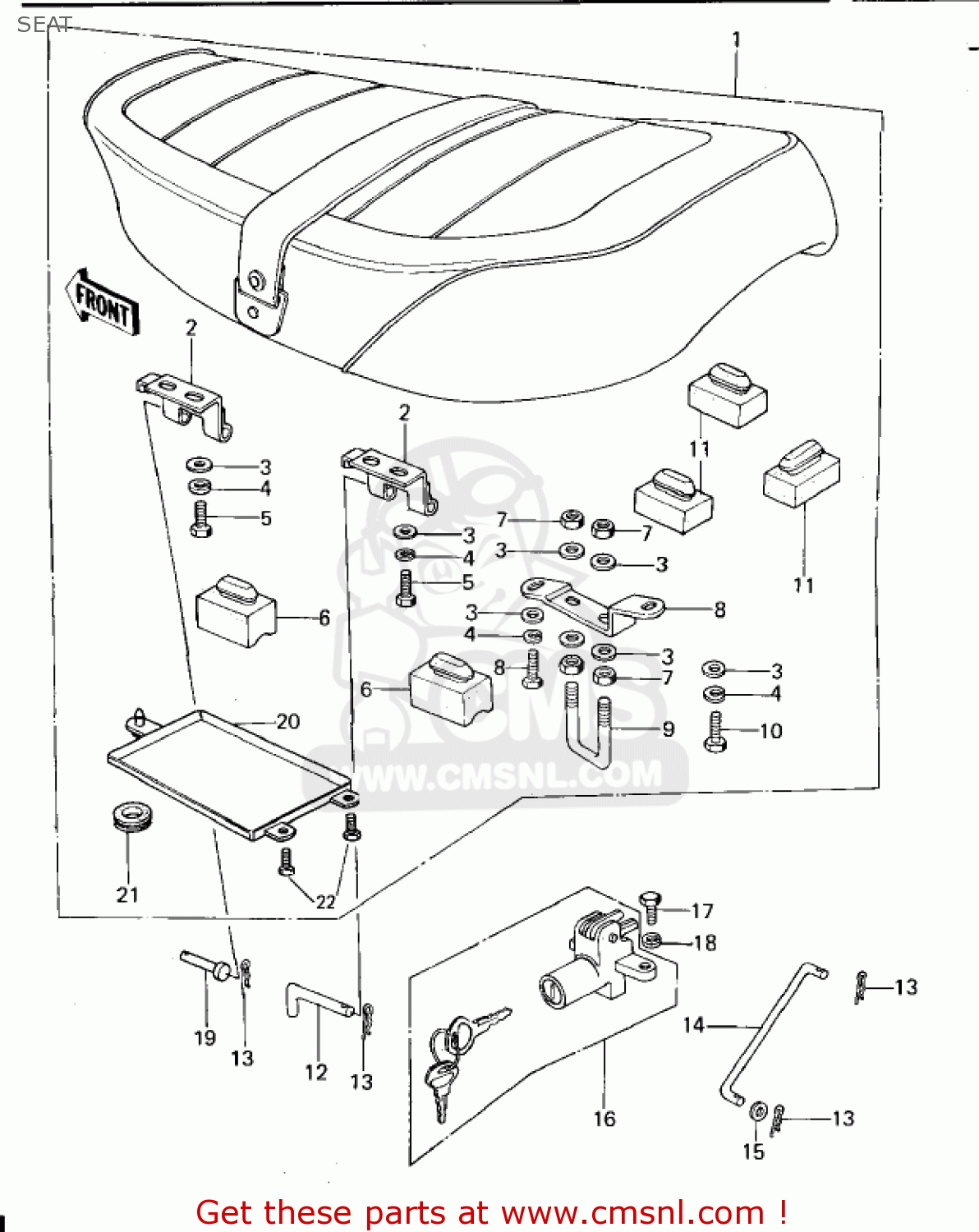

SEAT

ref

part #

description

quantity

1

530011194
ref: 1
KZ650-B1/B2/B2A

SEAT-ASSY,DUAL,W/BAND

€ 441.00

1

530011194
ref: 1

SEAT-ASSY,DUAL,W/BAND

€ 441.00

1

530011194
ref: 1
KZ650-B3

SEAT-ASSY,DUAL,W/BAND

€ 441.00

2

53009031
ref: 2

HINGE,SEAT

€ 9.00

3

411B0600
ref: 3

WASHER-PLAIN,6MM

€ 0.50

4

461F0600
ref: 4

WASHER-SPRING,6MM

€ 0.50

5

112G0616
ref: 5

BOLT UPSET,6X16

€ 1.00

6

92075156
ref: 6

DAMPER,SEAT

€ 6.50

7

311B0600
ref: 7

NUT,6MM

€ 0.50

8

53058004
ref: 8

BRACKET, SEAT CATCH

€ 6.50

9

53056002
ref: 9

HOOK,SEAT

€ 11.50

10

112B0614
ref: 10

BOLT-UPSET 6X14

€ 2.50

11

92075099
ref: 11

DAMPER RUBBER

€ 3.50

12

53011008
ref: 12

PIN,SEAT PIVOT

€ 4.00

13

92041003
ref: 13

COTTER

€ 0.50

14

53054006
ref: 14

STOPPER, SEAT

€ 4.00

15

410B0600
ref: 15

WASHER-PLAIN-SMALL,6M

€ 0.50

16

270165010
ref: 16
KZ650-B1/B2/B2A

LOCK-ASSY,SEAT

€ 72.50

16

270165010
ref: 16
KZ650-B3

LOCK-ASSY,SEAT

€ 72.50

17

112G0612
ref: 17

BOLT-UPSET

€ 2.50

18

461F0600
ref: 18

WASHER-SPRING,6MM

€ 0.50

19

53011002
ref: 19

PIN,6X48

€ 3.50

20

32099011
ref: 20
NOT REQUIRED FOR 530

CASE,MANUAL

€ 11.50

21

92071056
ref: 21
NOT REQUIRED FOR 530

GROMMET

€ 2.50

22

110B0510
ref: 22

BOLT-HEX HEAD,5X10

€ 0.50
