HANDLEBAR
KZ650B2 1978 USA CANADA / MPH KPH

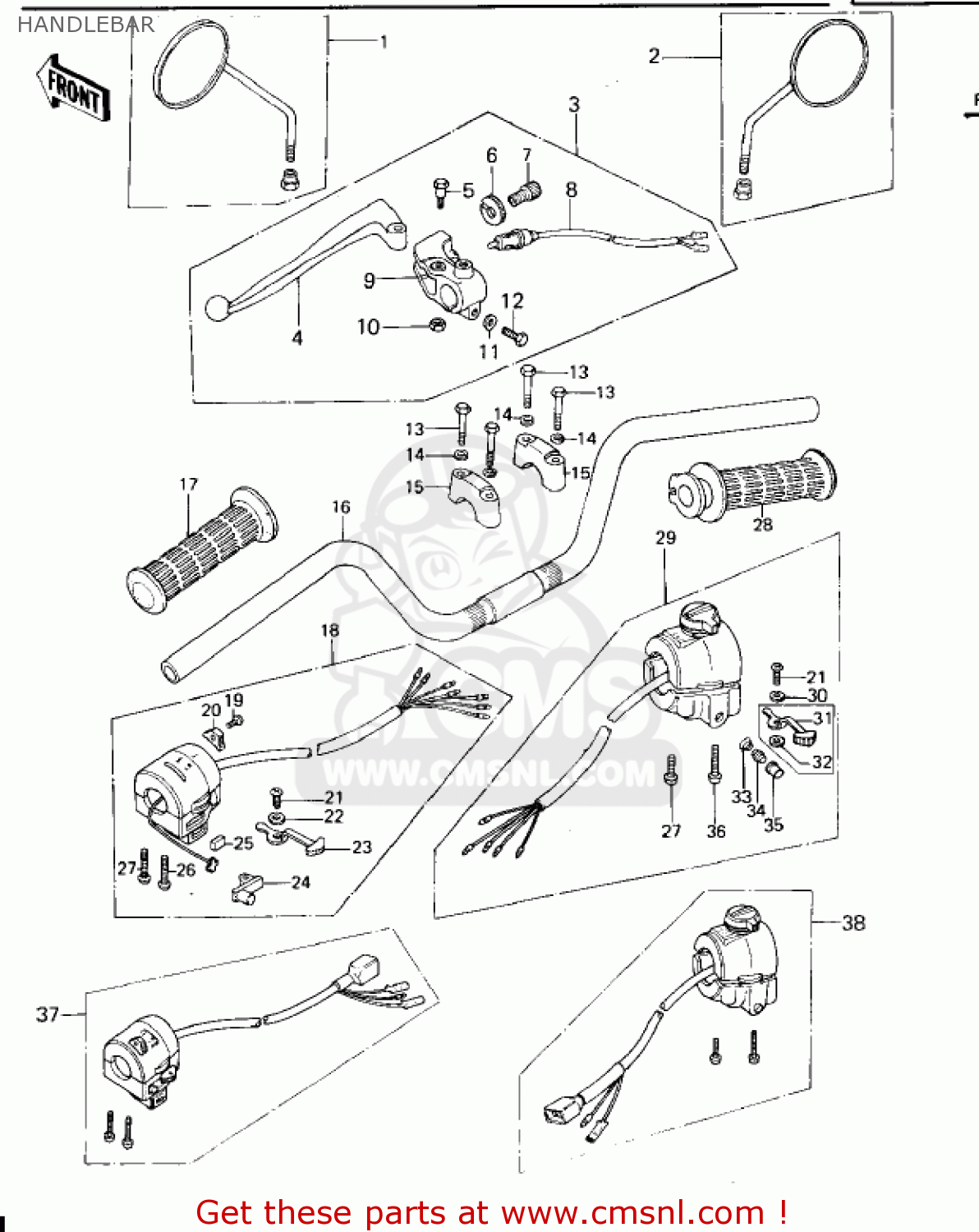

Handlebar diagram KZ650B2 1978 USA CANADA / MPH KPH
HANDLEBAR KZ650B2 1978 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
56003019
ref: 1
MIRROR-ASSY,LH
€ 51.00
2
56002029
ref: 2
MIRROR-ASSY,RH
€ 49.00
3
46076054
ref: 3
LEVER-ASSY-GRIP,CLUTC
€ 101.00
4
46092023
ref: 4
LEVER-GRIP,CLUTCH
€ 17.00
5
92007047
ref: 5
BOLT,HEX HEAD
€ 6.50
6
46056007
ref: 6
NUT,CABLE ADJUST LOCK
€ 9.00
7
46055003
ref: 7
SCREW-CABLE ADJUST
€ 11.50
8
27043002
ref: 8
SWITCH,CLUTCH
€ 21.00
9
46094019
ref: 9
HOLDER,CLUTCH LEVER
€ 55.00
10
92017014
ref: 10
NUT,LOCK,6MM
€ 4.00
11
410B0600
ref: 11
WASHER-PLAIN-SMALL,6M
€ 0.50
12
110N0625
ref: 12
BOLT-HEX HEAD,6X25
€ 3.50
13
920011405
ref: 13
BOLT,8X38
€ 10.00
14
461F0800
ref: 14
WASHER-SPRING,8MM
€ 0.50
15
46012008
ref: 15
HOLDER-HANDLE,UPP
€ 23.00
16
46003038
ref: 16
KZ650-B1/B2/B2A
HANDLEBAR
€ 88.00
16
460031026
ref: 16
KZ650-B3
HANDLEBAR
€ 94.50
17
46075028
ref: 17
GRIP,LH
€ 32.00
18
46091054
ref: 18
KZ650-B1
CASE ASSY, L.H
€ 58.00
18
46091055
ref: 18
KZ650-B2/B2A
CASE ASSY, L.H
€ 70.00
19
221B0308A
ref: 19
SCREW-CNTSNK HD,3X8
€ 2.50
20
46044013
ref: 20
KNOB,LIGHTING SWITCH,
€ 8.00
21
220B0305A
ref: 21
SCREW-PAN HEAD,3X5
€ 1.00
22
92095010
ref: 22
WASHER
€ 2.50
23
46043005
ref: 23
KNOB-LIGHTING SW L.H
€ 6.50
24
46028007
ref: 24
HORN PUSH BUTTON
€ 66.00
25
92012019
ref: 25
USE FOR 46091-054
UNAVAILABLE IN PRICE BOOK
€ 0.00
26
220B0535
ref: 26
SCREW-PAN-CROS
€ 2.00
27
220B0530
ref: 27
SCREW-PAN-CROS
€ 2.00
28
46019038
ref: 28
GRIP-ASSY,THROTTLE
€ 80.50
29
460911031
ref: 29
KZ650-B1/B2
HOUSING-ASSY-CONTROL,
€ 163.50
29
460911031
ref: 29
HOUSING-ASSY-CONTROL,
€ 163.50
29
460911038
ref: 29
KZ650-B2A
CASE ASSY, R.H.
€ 75.00
29
460911038
ref: 29
KZ650-B1/B2
CASE ASSY, R.H.
€ 75.00
30
410B0300
ref: 30
WASHER-PLAIN-SMALL,3M
€ 0.50
31
46043004
ref: 31
USE FOR 46132-031 &
KNOB-LIGHTING SW R.H
€ 3.00
32
92095014
ref: 32
USE FOR 46132-031 &
WASHER, PLAIN
€ 2.50
33
270101009
ref: 33
SWITCH ASSY,HORN BUTN
€ 5.50
34
270101009
ref: 34
SWITCH ASSY,HORN BUTN
€ 5.50
35
270101009
ref: 35
SWITCH ASSY,HORN BUTN
€ 5.50
36
220B0540
ref: 36
SCREW-PAN-CROS
€ 2.00
37
460911048
ref: 37
KZ650-B3
CONTROLLER HOUSING ASSEMBLY,LH
€ 146.00
38
460911047
ref: 38
KZ650-B3
HOUSING ASSY, CONT,RH
€ 118.50
