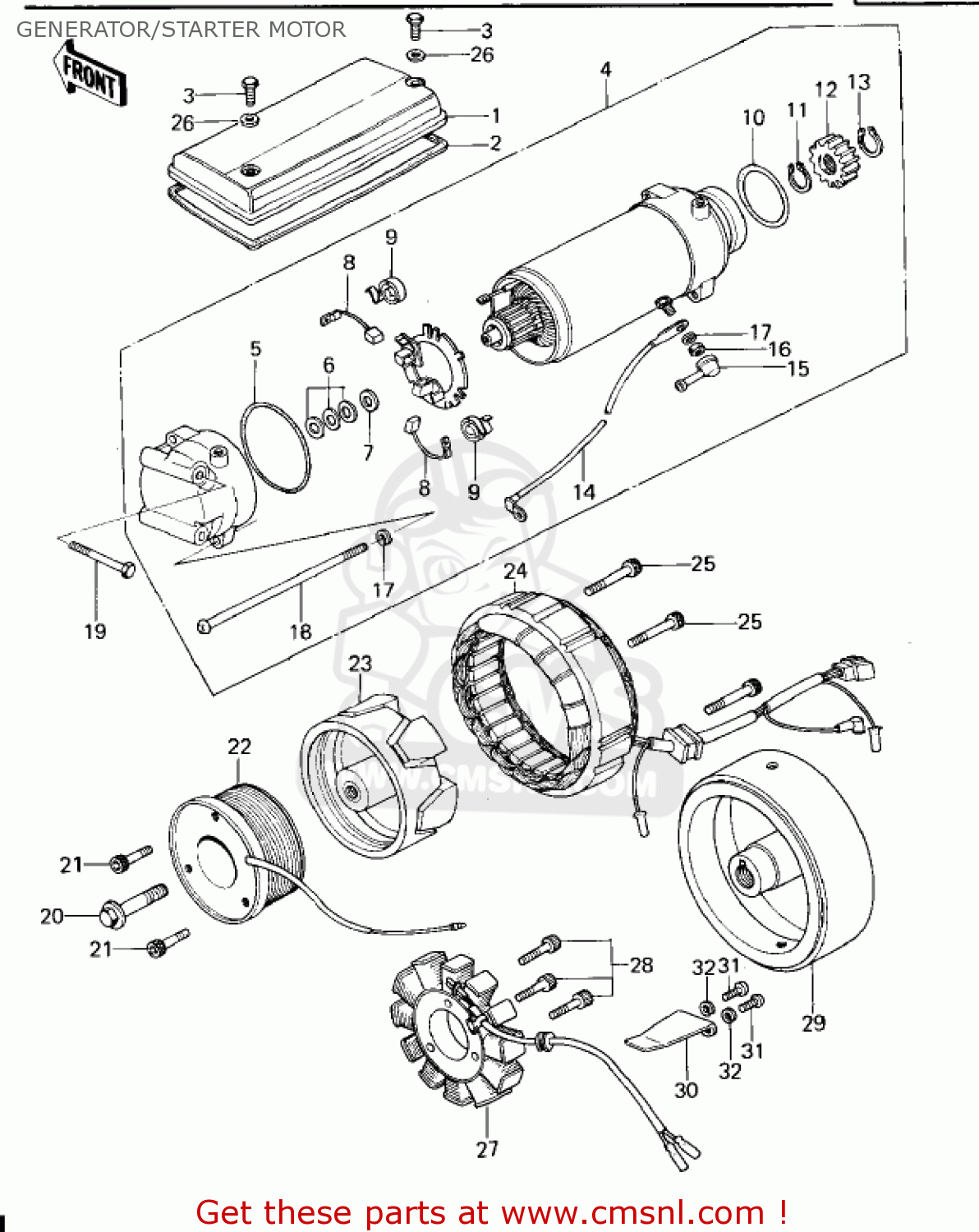

GENERATOR/STARTER MOTOR

ref

part #

description

quantity

1

21165003
ref: 1

COVER,STARTER

€ 13.50

2

21166003
ref: 2

GASKET,STARTER COVER (NAS)

€ 9.50

3

110R0610
ref: 3

BOLT,6X10

€ 5.00

4

211631022
ref: 4

STARTER ELECTRIC

€ 573.50

5

21027006
ref: 5

RING-O,62MM

€ 8.00

6

21025011
ref: 6

WASHER, THRUST, 0.2T

€ 4.00

7

21025010
ref: 7

WASHER,THRUST,T=1.6

€ 4.00

8

21039003
ref: 8

BRUSH,CARBON

€ 23.50

9

21040003
ref: 9

SPRING-BRUSH

€ 4.50

10

21027008
ref: 10

O RING, 40M/M

€ 8.50

11

92033034
ref: 11

CIRCLIP

€ 7.00

12

21053004
ref: 12

PINION, STARTER

€ 69.00

13

92033037
ref: 13

RING-SNAP,13MM

€ 6.50

14

260111099
ref: 14

WIRE-LEAD,STARTER

€ 34.50

15

21017020
ref: 15

CAP,STARTING MOTOR

€ 6.00

16

312B0600
ref: 16

NUT,6MM

€ 0.50

17

461F0600
ref: 17

WASHER-SPRING,6MM

€ 0.50

18

21099006
ref: 18

SCREW,PAN HEAD, 6X130

€ 4.50

19

112G0660
ref: 19

BOLT-UPSET

€ 3.00

20

920011201
ref: 20

BOLT,ROTOR,10X40

€ 7.00

21

120P0618
ref: 21
KZ650-B1

BOLT,ALLEN,6X18

€ 1.00

22

21077005
ref: 22
KZ650-B1

COIL, FIELD

€ 275.50

23

21007033
ref: 23
KZ650-B1

ROTOR

€ 181.00

24

21076024
ref: 24
KZ650-B1

YOKE ASSY

€ 549.00

25

120Q0632
ref: 25
KZ650-B1

BOLT,ALLEN,6X32

€ 3.00

26

410D0600
ref: 26

WASHER-PLAIN-SMALL,6M

€ 0.50

27

210031005
ref: 27
KZ650-B2~

STATOR

€ 433.50

28

120P0530
ref: 28
KZ650-B2~

BOLT-SOCKET,5X30

€ 2.50

29

210501003
ref: 29
KZ650-B2~

FLYWHEEL

€ 250.00

30

920371122
ref: 30
KZ650-B2~

CLAMP,GENERATOR LEAD

€ 3.00

31

220B0512
ref: 31
KZ650-B2~

SCREW-PAN-CROS

€ 0.50

32

461F0500
ref: 32
KZ650-B2~

WASHER-SPRING,5MM

€ 0.50

all assemblies
