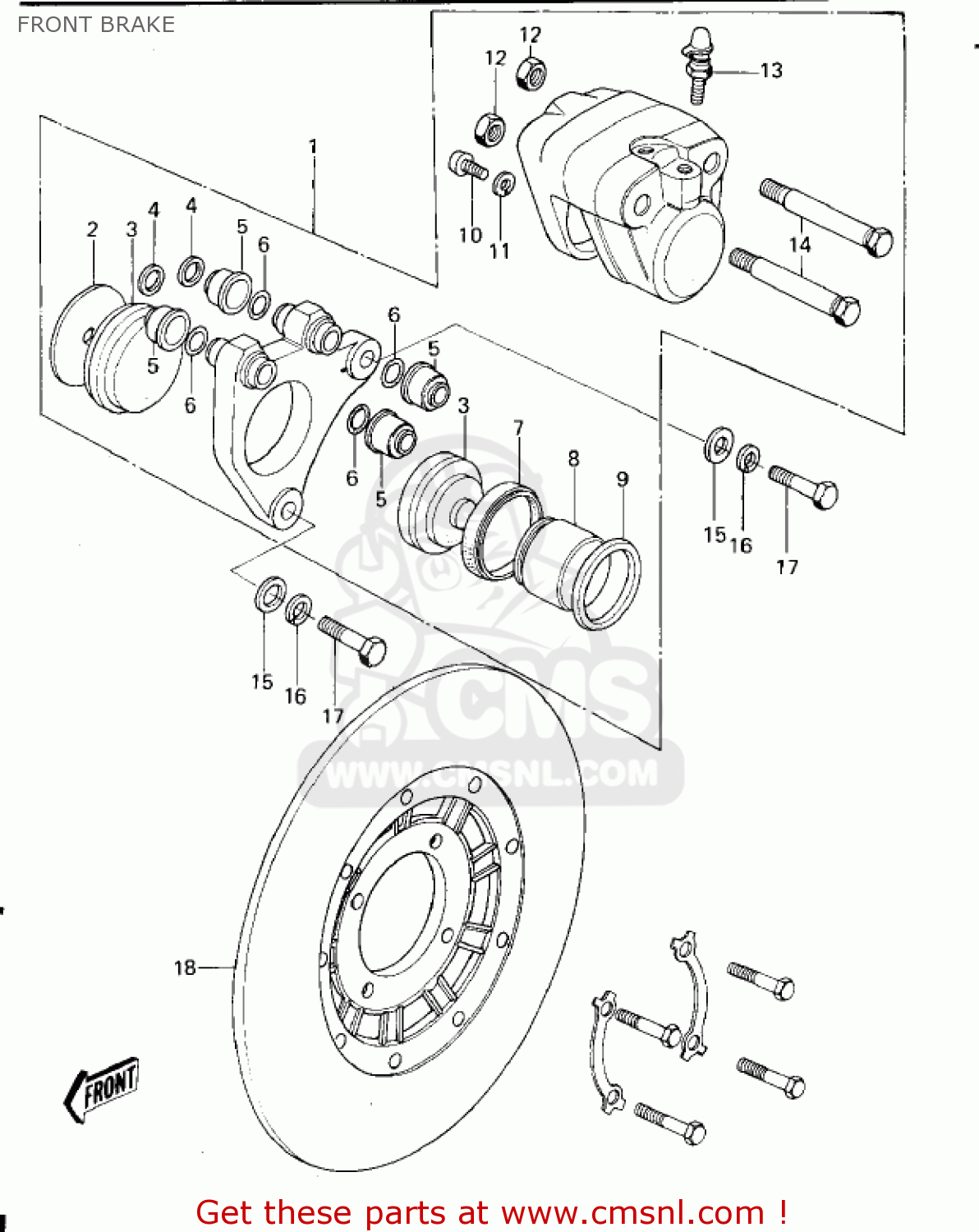

FRONT BRAKE

ref

part #

description

quantity

1

43041030
ref: 1
KZ650-B1

CALIPER ASSY,L.H FROT

€ 255.00

1

430411006
ref: 1
KZ650-B2~

CALIPER ASSY,FRONT

€ 442.00

2

43040004
ref: 2

SPACER

€ 8.00

3

430505001
ref: 3

PAD-ASSY-BRAKE (MCA)

€ 97.50

4

43088002
ref: 4

PLUG

€ 6.50

5

43052005
ref: 5

BOOT,SHAFT

€ 7.50

6

43053006
ref: 6

RING-O

€ 7.00

7

43054003
ref: 7

BOOT,PISTON

€ 10.00

8

43048009
ref: 8

PISTON-CALIPER,FR

€ 80.50

9

43049002A
ref: 9

PISTON SEAL RING

€ 9.00

10

220B0612
ref: 10

SCREW-PAN HEAD,6X12

€ 1.00

11

461F0600
ref: 11

WASHER-SPRING,6MM

€ 0.50

12

315B1000
ref: 12

NUT,10MM

€ 0.50

13

43085001
ref: 13

BREEDER SET

€ 16.50

14

43045006
ref: 14

BOLT

€ 18.00

15

410B1000
ref: 15

WASHER-PLAIN-SMALL,10

€ 0.50

16

461F1000
ref: 16

WASHER-SPRING,10MM

€ 0.50

17

92007032
ref: 17

BOLT,10X41.5

€ 8.50

18

41080005
ref: 18

DISC PLATE,FRONT BRK

€ 428.50

all assemblies
