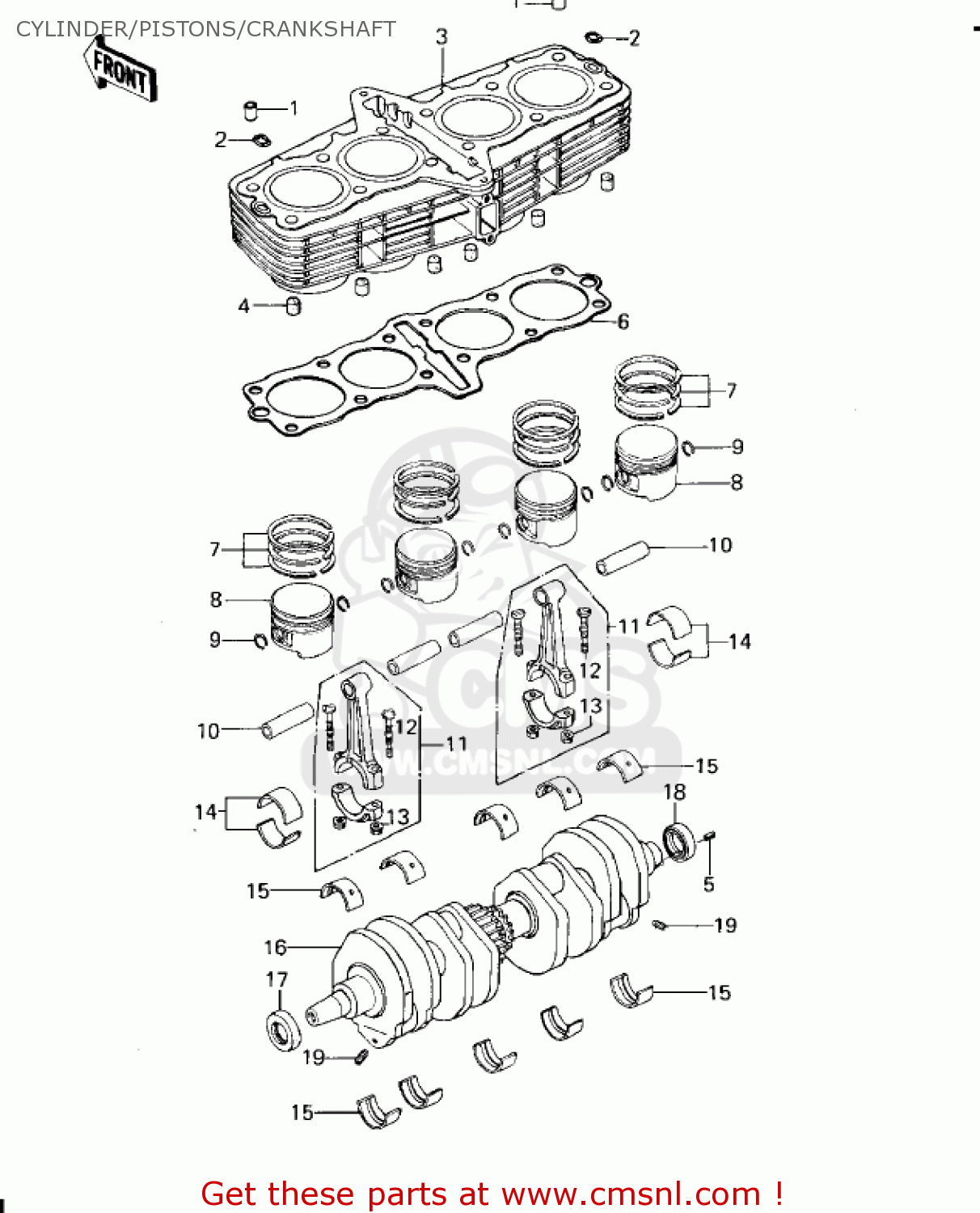

CYLINDER/PISTONS/CRANKSHAFT

ref

part #

description

quantity

1

920431266
ref: 1

PIN,11X14X12.3

€ 1.00

2

920551147
ref: 2

RING-O,CYLINDER OIL L

€ 6.00

3

110051039
ref: 3

CYLINDER

€ 943.50

4

92075075
ref: 4

DAMPER,13X13.8

€ 3.00

4

920661016
ref: 4

PLUG,DAMPER,13.5X8

€ 3.00

5

555A0408
ref: 5

PIN-SPRING,4X8

€ 2.50

6

110601362
ref: 6

GASKET (NAS)

€ 16.00

7

13008059
ref: 7

RING-SET-PISTON,STD

€ 103.00

7

13025061
ref: 7

RING-SET-PISTON L,O/S

€ 76.00

7

13024060
ref: 7

RING-SET-PISTON LL,O/

€ 50.50

8

130011002
ref: 8

PISTON-ENGINE,STD

€ 45.00

8

13029077
ref: 8

PISTON-ENGINE-L,O/S 0

€ 28.50

8

13027069
ref: 8

PISTON-ENGINE-LL,O/S

€ 42.50

9

92036005
ref: 9

CIRCLIP-PISTON PIN

€ 2.50

10

13002032
ref: 10

PIN-PISTON

€ 14.50

11

132511007JJ
ref: 11
"H" MARK

CONNECTING ROD ASSY,J

€ 119.00

11

132511003HH
ref: 11
"H" MARK

CONNECTING ROD ASSY

€ 154.00

11

132511007JJ
ref: 11
"I" MARK

CONNECTING ROD ASSY,J

€ 119.00

11

132511007JJ
ref: 11
"J" MARK

CONNECTING ROD ASSY,J

€ 119.00

12

92001175
ref: 12

BOLT, CONNECTING ROD

€ 5.50

12

920011793
ref: 12

BOLT, CONNECTING ROD

€ 5.50

13

92016060
ref: 13

NUT, CONNECTING ROD

€ 3.50

14

13034050
ref: 14
GREEN OR "A" MARK

METAL,CONNECT ROD,BRG

€ 14.50

14

13034051
ref: 14
BLACK OR "B" MARK

METAL,CONNECTING ROD,

€ 18.00

14

13034052
ref: 14
BROWN OR "C" MARK

METAL,CONNECTING ROD,

€ 14.50

15

920281102
ref: 15

BUSHING,CRANKSHAFT,BR

€ 11.00

16

13037069
ref: 16

CRANKSHAFT ASSY

€ 1,103.50

17

92050080
ref: 17

OIL SEAL, HSCY 22397

€ 8.50

18

92050081
ref: 18

OIL SEAL, HSCY 25397

€ 8.00

19

291H0608
ref: 19

SCREW,SLOTTED,6X8

€ 1.50

all assemblies
