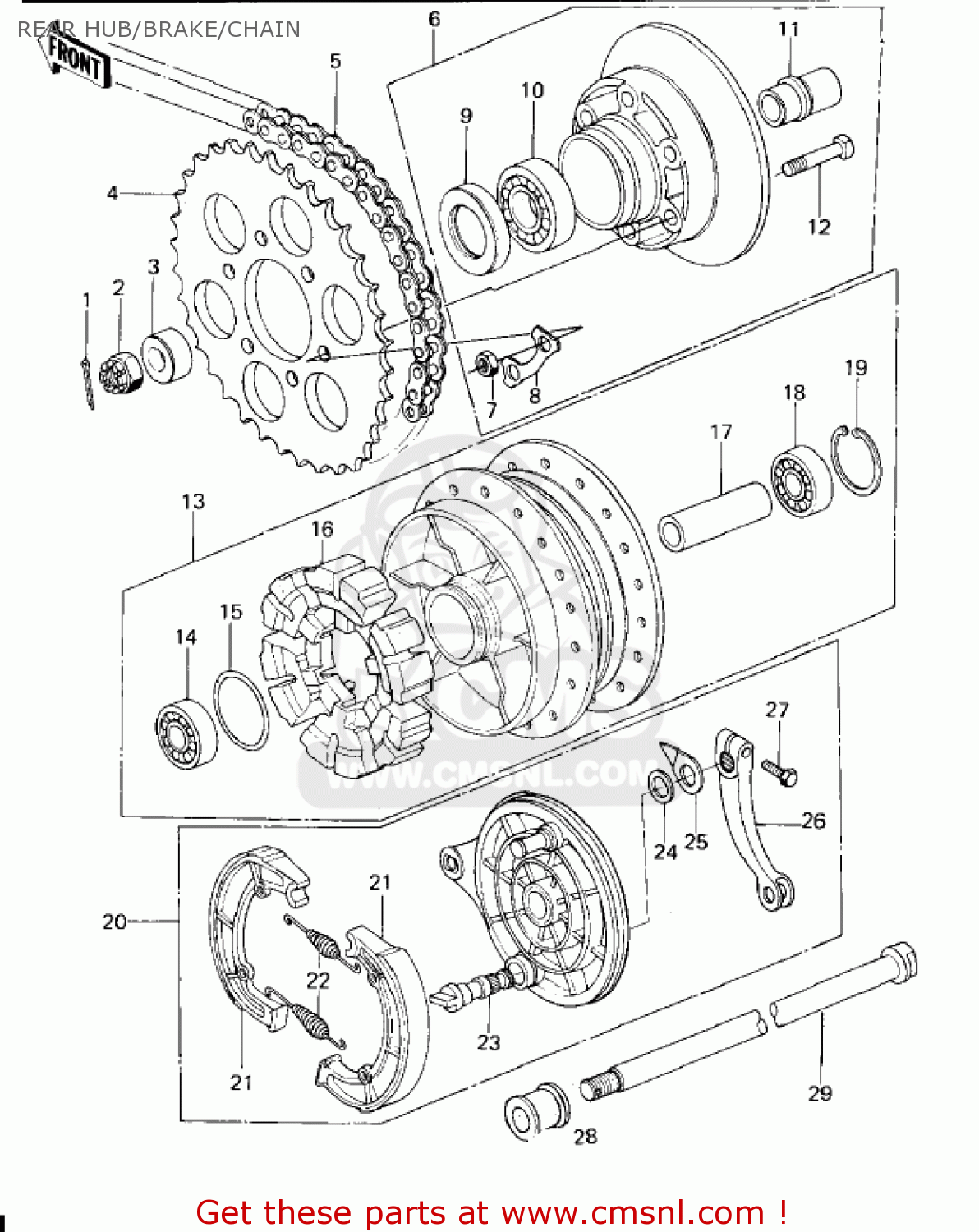

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

550D4035
ref: 1

PIN-COTTER,4.0X35

€ 1.00

2

92015055
ref: 2

NUT,16MM

€ 8.00

3

42032067
ref: 3
L.H.

COLLAR,REAR AXLE,LH,L

€ 15.50

4

42041165
ref: 4

REAR SPROCKET, 42T

€ 44.50

5

920571232
ref: 5
EK530SH

CHAIN,DRIVE,EK50MV-OX

€ 167.50

6

42008032
ref: 6

COUPLING ASSY,REAR HB

€ 132.50

7

42045005
ref: 7

NUT,10MM

€ 5.00

8

92088007
ref: 8

WASHER,LOCK

€ 8.00

9

92050076
ref: 9

OIL SEAL, # 38629

€ 13.50

10

601B6305
ref: 10

BEARING-BALL,#6305C3

€ 30.00

11

42036026
ref: 11

SLEEVE,RR HUB COUPLIN

€ 39.00

12

92003087
ref: 12

BOLT-RR SPRCKT 10X49

€ 4.00

13

42005051
ref: 13

DRAM ASSY, REAR BRAKE

€ 308.50

14

601B6303
ref: 14

BEARING-BALL,#6303C3

€ 24.00

15

671B2555
ref: 15

O RING,55MM

€ 4.00

16

42014026
ref: 16

DAMPER,RR HUB SHOCK

€ 51.00

17

42010033
ref: 17

COLLAR,REAR HUB,L=61

€ 14.50

18

601B6303U
ref: 18

BEARING-BALL

€ 26.00

19

920331042
ref: 19

CIRCLIP,47M/M

€ 4.00

20

410351056
ref: 20

PANEL-ASSY-BRAKE,RR

€ 277.00

21

42019012
ref: 21

SHOE, BRAKE (MCA)

€ 26.00

22

41049012
ref: 22

SPRING, BRKE SHOE

€ 6.00

23

41050017
ref: 23

CAM-BRAKE

€ 25.50

24

41051003
ref: 24

DUST SHIELD-BRAKE CAM

€ 2.50

25

41085004
ref: 25

INDICATOR,BRAKE SHOE

€ 10.00

26

42029039
ref: 26

LEVER REAR BRAKE CAM

€ 37.00

27

114G0828
ref: 27

BOLT-SMALL,8X28

€ 2.50

28

42032017
ref: 28
R.H.

COLLAR-REAR AXLE

€ 10.50

29

410681086
ref: 29

AXLE,RR

€ 49.00

all assemblies
