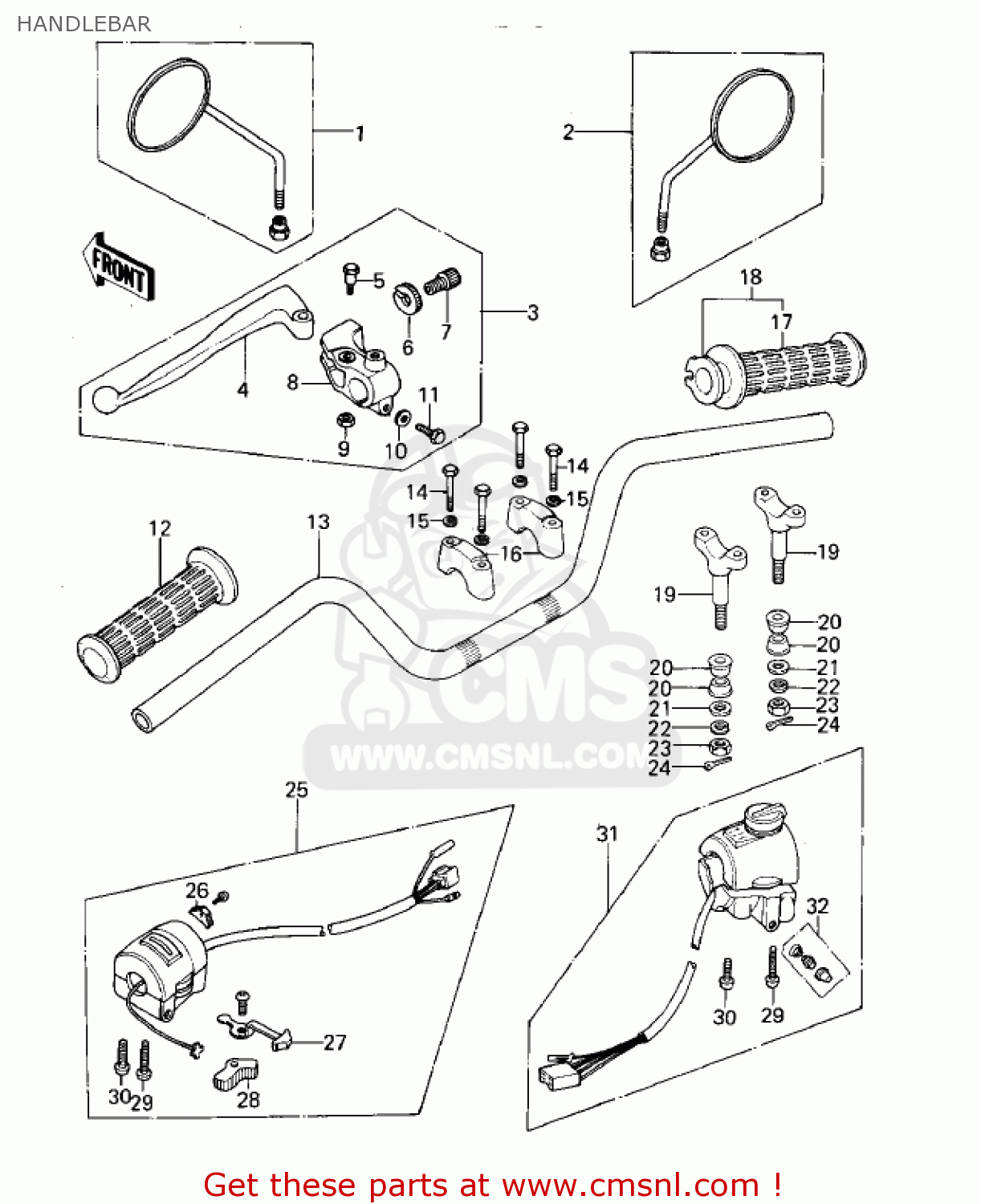

HANDLEBAR

ref

part #

description

quantity

1

560011015
ref: 1

MIRROR-ASSY,LH

€ 61.50

2

560011016
ref: 2
OPTION

MIRROR-ASSY,RH

€ 61.50

3

46076052
ref: 3

LEVER ASSY,CLUTCH

€ 101.00

4

46092023
ref: 4

LEVER-GRIP,CLUTCH

€ 17.00

5

92007047
ref: 5

BOLT,HEX HEAD

€ 6.50

6

46056007
ref: 6

NUT,CABLE ADJUST LOCK

€ 9.00

7

46055003
ref: 7

SCREW-CABLE ADJUST

€ 11.50

8

46094017
ref: 8

HOLDER,CLUTCH LEVER

€ 23.00

9

92019008
ref: 9

NUT-LOCK,6MM

€ 3.00

10

410B0600
ref: 10

WASHER-PLAIN-SMALL,6M

€ 0.50

11

110N0625
ref: 11

BOLT-HEX HEAD,6X25

€ 3.50

12

46075028
ref: 12

GRIP,LH

€ 32.00

13

460031019
ref: 13

HANDLEBAR

€ 64.50

14

920011405
ref: 14

BOLT,8X38

€ 10.00

15

461F0800
ref: 15

WASHER-SPRING,8MM

€ 0.50

16

46012008
ref: 16

HOLDER-HANDLE,UPP

€ 23.00

17

46061018
ref: 17

RUBBER,THROTTLE GRIP

€ 10.00

18

46019038
ref: 18

GRIP-ASSY,THROTTLE

€ 80.50

19

46012010
ref: 19

HOLDER-HANDLE,LWR

€ 20.00

20

92075039
ref: 20

DAMPER RUBBER-HANDLE

€ 3.00

21

46016003
ref: 21

PLATE,HANDLE HOLDER

€ 3.50

22

461F1000
ref: 22

WASHER-SPRING,10MM

€ 0.50

23

314B1000
ref: 23

NUT,10MM

€ 0.50

24

554A0800
ref: 24

PIN-SNAP,8MM

€ 1.00

25

460911079
ref: 25

HOUSING-ASSY-CONTROL,

€ 129.50

26

46044013
ref: 26

KNOB,LIGHTING SWITCH,

€ 8.00

27

46043005
ref: 27

KNOB-LIGHTING SW L.H

€ 6.50

28

46028006
ref: 28

BUTTON,HORN PUSH

€ 6.50

29

220B0535
ref: 29

SCREW-PAN-CROS

€ 2.00

30

220B0530
ref: 30

SCREW-PAN-CROS

€ 2.00

31

460911039
ref: 31

CASE ASSY, R.H.

€ 101.00

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50
